Norgren C01470618 90 Swivel Elbow Tube Fitting Bspt

Product Description

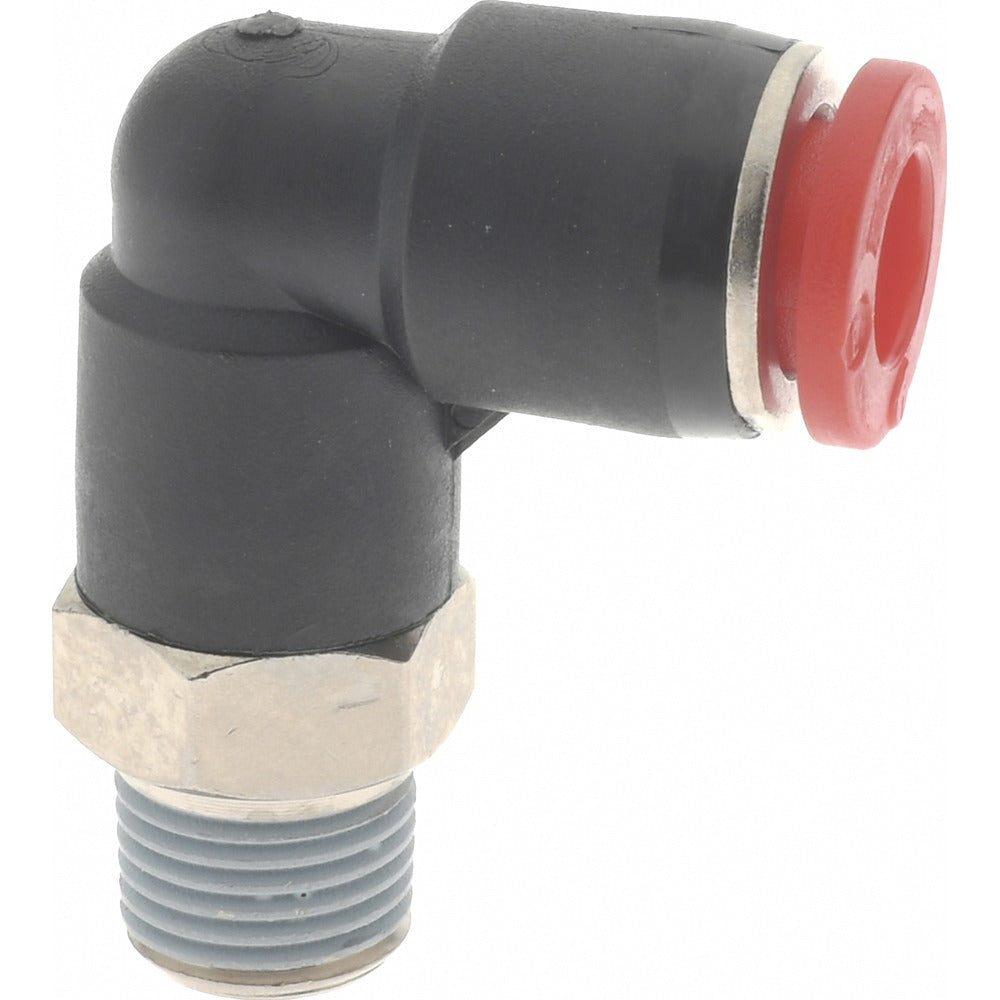

The NORGREN C01470618 is a push-to-connect 90-degree swivel elbow tube fitting designed for pneumatic and fluid-handling systems. It connects a push-to-connect tube port to a male BSPT threaded port, allowing quick, tool-free tube insertion on one end with a rigid male thread on the other. The fitting is rated to 150 psi maximum working pressure and operates across a temperature range of 0 to 175 degrees F. Constructed from brass with a nitrile O-ring seal, this elbow is suited for compressed air, inert gas, and compatible fluid lines where a compact 90-degree direction change is required. Licensed trade professionals and experienced technicians are the typical end users.

This fitting is used in pneumatic control systems, light industrial fluid circuits, and HVAC pneumatic control lines where a 90-degree swivel connection between tubing and a male BSPT port is needed. The swivel feature allows the tube side to rotate for alignment during installation without disturbing the threaded connection. The 6.00 mm outside diameter tube port and 1/8 inch BSPT male thread make it a common choice for small-bore pneumatic lines in both residential and light commercial applications.

Key Features

• Push-to-connect tube entry for fast, tool-free tube insertion and release
• 90-degree swivel elbow geometry allows directional flexibility during assembly
• Rated to 150 psi maximum working pressure
• Operating temperature range: 0 to 175 degrees F
• Brass body construction with nitrile O-ring seal
• 1/8 inch BSPT male thread for standard metric pneumatic port compatibility

Compatibility

Designed as an OEM-style push-to-connect fitting for pneumatic and fluid-handling systems using 6.00 mm outside diameter tubing and 1/8 inch BSPT male threaded ports.

Installation Notes

Installation is typically performed by qualified pneumatic, HVAC, or plumbing technicians. Depressurize and isolate the system completely before removing or installing any fittings. Ensure the mating BSPT thread is clean and use an appropriate thread sealant compatible with the system media. When inserting tubing, confirm the tube end is cut square and deburred before pushing fully into the collet to achieve a leak-free connection.
