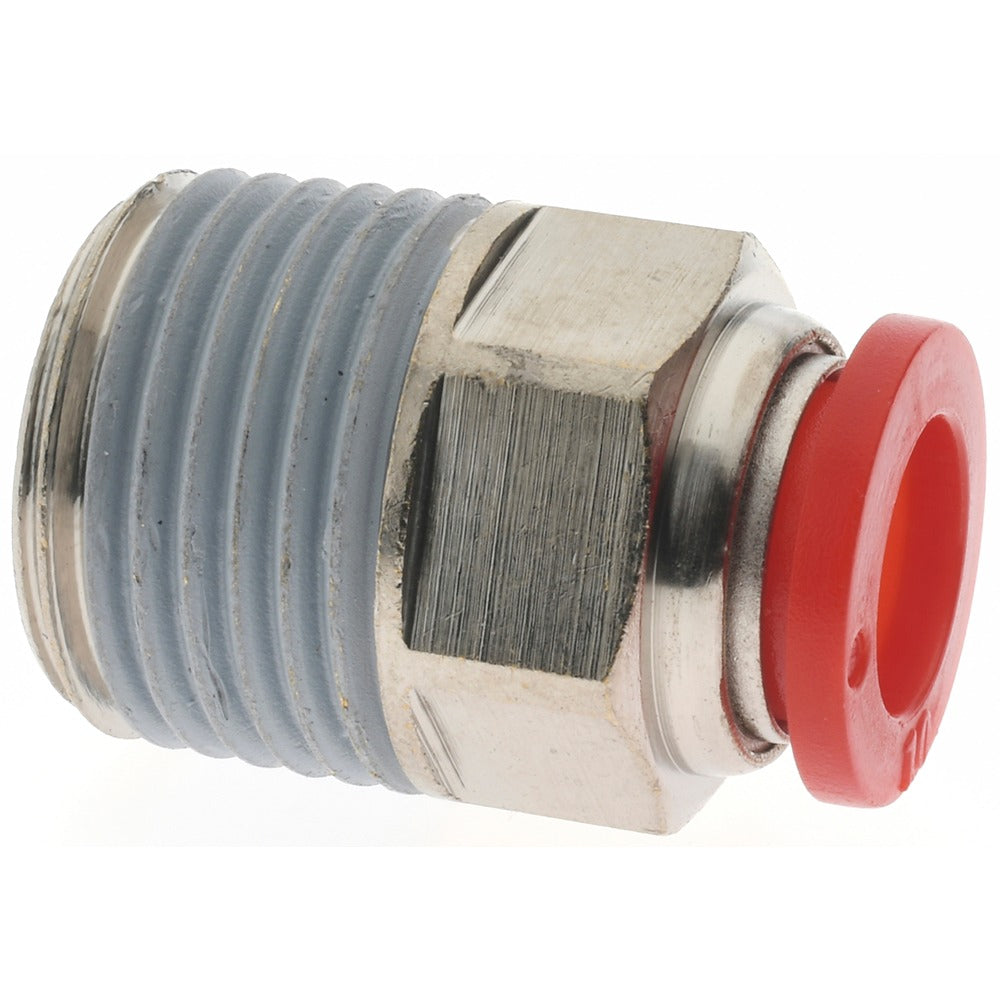

Norgren C01251048 Push-to-connect Bspt Male Connector

Product Description

The NORGREN C01251048 is a straight push-to-connect male connector designed for tube-to-male BSPT plumbing and pneumatic line connections. This brass fitting accepts a 10mm outside diameter tube on one end and connects to a 1/2 inch BSPT male thread on the other. Rated to 150 psi maximum working pressure and suitable for service between 0 and 175 degrees F, it is built for use in compressed air, pneumatic control, and fluid transfer systems. The push-to-connect design allows for fast, tool-free tube insertion while maintaining a secure, leak-resistant seal backed by a nitrile O-ring.

This fitting is suited for residential and commercial pneumatic systems, light industrial fluid lines, and HVAC control air circuits where BSPT threaded ports are specified. Typical applications include connecting 10mm OD tubing to valves, cylinders, manifolds, or instrument ports with 1/2 inch BSPT male thread entries. The straight configuration simplifies inline routing without bends or additional adapters. Installation is performed by plumbers, pipefitters, and HVAC technicians working on air or compatible fluid service lines.

Key Features

• Push-to-connect tube end accepts 10mm OD tubing without tools
• 1/2 inch BSPT male thread for direct connection to BSPT-ported components
• Brass construction for corrosion resistance in air and fluid service
• Nitrile O-ring provides reliable sealing across the rated temperature range
• Rated to 150 psi maximum working pressure
• Compact straight profile at 33.10mm overall length for tight installation spaces

Compatibility

Designed as a push-to-connect replacement fitting for pneumatic and fluid systems using 10mm OD tubing with 1/2 inch BSPT male threaded ports.

Installation Notes

Installation should be performed by a qualified plumber, pipefitter, or HVAC technician. Depressurize and isolate the system completely before removing or installing any fittings. Ensure the tube end is cut cleanly and squarely and that the outside diameter is free of burrs or scoring before insertion. Apply appropriate thread sealant to the BSPT male thread per the applicable plumbing or pneumatic system code requirements.
