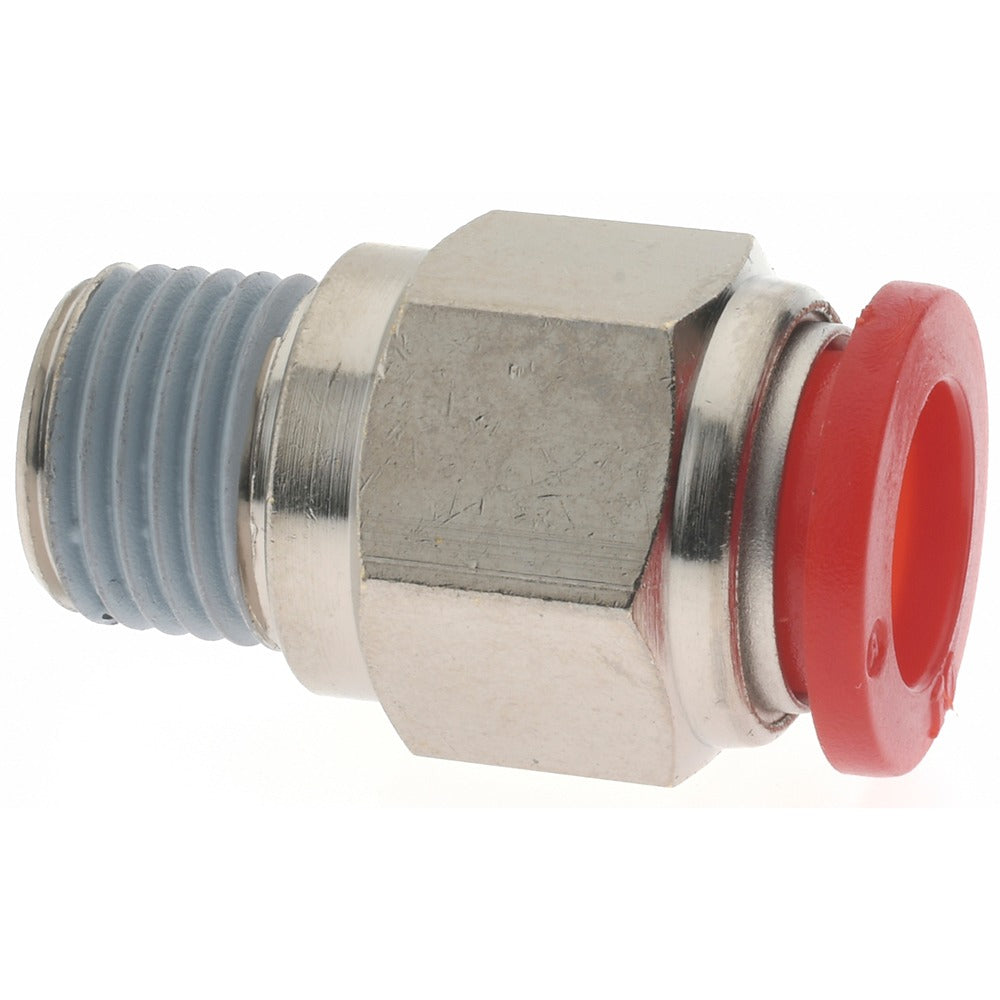

Norgren C01251028 Straight Male Connector 10mm Bspt

Product Description

The NORGREN C01251028 is a straight push-to-connect male connector fitting designed for pneumatic and fluid tubing systems. It accepts 10mm outside diameter tubing on one end and connects to a 1/4 inch BSPT male thread on the other, creating a reliable inline tube-to-male transition. Constructed from brass with a nitrile O-ring seal, this fitting handles working pressures up to 150 psi and operating temperatures from 0 degrees F to 175 degrees F. It is installed by plumbers, pipefitters, and pneumatic system technicians working on compressed air lines, fluid distribution systems, and industrial process plumbing.

This fitting is suited for both light industrial and commercial pneumatic applications where a compact, straight inline connection is required between rigid or semi-rigid tubing and a threaded male port. The push-to-connect design allows for quick tube insertion without additional tools, making it practical for tight spaces and high-volume installations. Its brass body provides good corrosion resistance in clean air and water service environments.

Key Features

• Push-to-connect design accepts 10mm OD tubing without additional tooling
• 1/4 inch BSPT male thread for direct connection to compatible ported components
• Brass body with nitrile O-ring for reliable sealing up to 150 psi
• Operating temperature range from 0 degrees F to 175 degrees F
• Compact straight profile at 32.10mm overall length

Compatibility

Designed as an OEM-style push-to-connect fitting for pneumatic and fluid systems using 10mm OD tubing with 1/4 inch BSPT male threaded ports.

Installation Notes

This fitting is typically installed by qualified pipefitters or pneumatic technicians. Shut off and depressurize the system completely before removing or installing any fittings. Ensure tubing is cut cleanly and squarely, and that the tube end is free of burrs before insertion into the push-to-connect collet. Verify that the thread standard of the mating port is BSPT before installation, as BSPT and NPT threads are not interchangeable.
