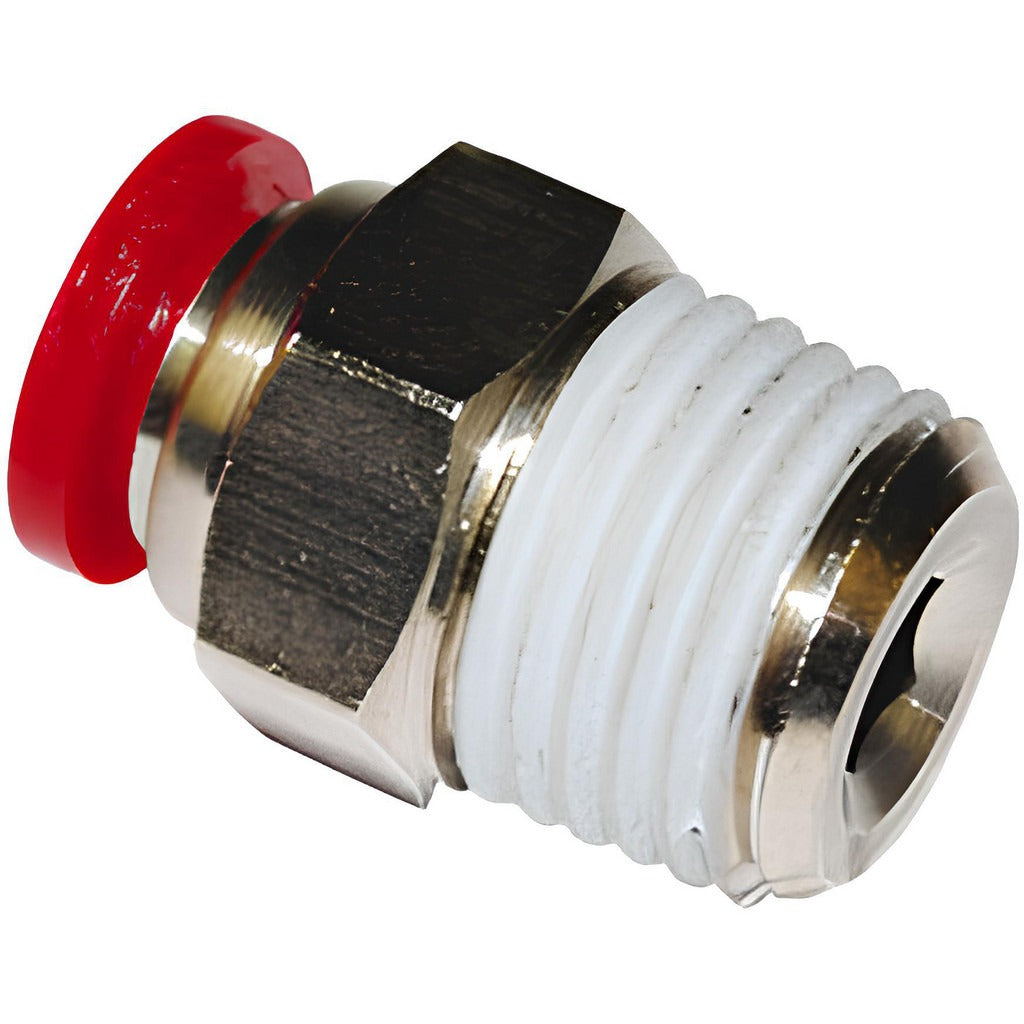

Norgren C01250838 Push-to-connect Male Connector 3/8 Bspt

Product Description

The NORGREN C01250838 is a straight push-to-connect male connector designed for tube-to-male BSPT pneumatic and fluid line connections. Constructed from brass, this fitting accepts 8mm outside diameter tubing on one end and threads into a 3/8 BSPT male port on the other, creating a reliable inline connection without the need for additional ferrules or tools. It is rated to 150 psi maximum working pressure and handles temperatures from 0 degrees F to 175 degrees F, making it suitable for a wide range of general-purpose compressed air and fluid distribution applications. A nitrile O-ring provides a positive seal at the push-to-connect end.

This connector is used in general-purpose pneumatic plumbing, fluid control panels, and compressed air distribution systems found in industrial, commercial, and light manufacturing environments. Plumbers, pipefitters, and pneumatic system technicians install this type of fitting when routing tubing into threaded BSPT ports on valves, manifolds, cylinders, and instrumentation. The straight configuration suits direct inline connections where offset or angled fittings are not required.

Key Features

• Push-to-connect design accepts 8mm OD tubing without additional tools or ferrules
• 3/8 BSPT male thread end for direct port connection
• Brass construction for durability in pneumatic and compatible fluid service
• 150 psi maximum working pressure rating
• Operating temperature range of 0 degrees F to 175 degrees F
• Nitrile O-ring seal at the tube connection end

Compatibility

Designed for general-purpose pneumatic and fluid line applications using 8mm outside diameter tubing with 3/8 BSPT male threaded ports.

Installation Notes

Depressurize and isolate the system completely before removing or installing any fittings. Insert tubing fully into the push-to-connect end until it seats against the internal stop, then apply a light pull-back to confirm lock. Thread the BSPT male end into the mating port by hand first to avoid cross-threading, then tighten with an appropriate wrench. Follow applicable local piping codes and the equipment manufacturer guidelines for thread sealant use on BSPT connections.
