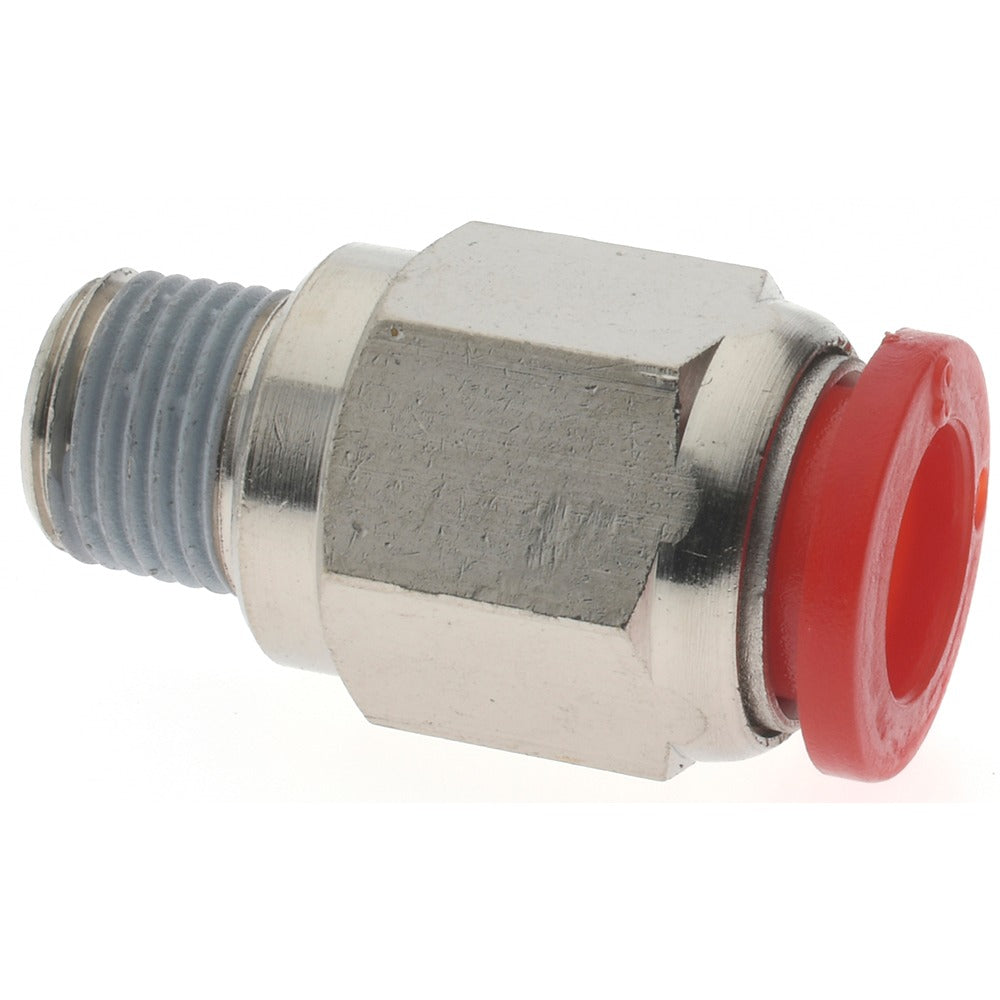

Norgren C01250818 Push-to-connect Male Connector 1/8 Bspt

Product Description

The NORGREN C01250818 is a straight push-to-connect male connector designed for tube-to-male BSPT pneumatic and fluid line connections. Constructed from brass, this fitting accepts an 8mm outside diameter tube on one end and a 1/8 inch BSPT male thread on the other. The push-to-connect mechanism allows for tool-free tube insertion and secure retention without ferrules or compression sleeves. It is rated for a maximum working pressure of 150 psi and handles temperatures from 0 degrees F to 175 degrees F. The nitrile O-ring provides a reliable seal across a broad range of common media. This fitting is installed by plumbers, pipefitters, and pneumatic system technicians in industrial and commercial applications.

This connector is suited for use in compressed air lines, pneumatic control circuits, and low-pressure fluid distribution systems where a straight inline tube-to-threaded-port connection is required. The BSPT thread form makes it appropriate for equipment and manifolds using ISO R pipe thread standards. Its compact overall length of approximately 28.60mm supports installations in tight panel or manifold spaces. It is a single-piece fitting sold individually.

Key Features

• Push-to-connect tube end accepts 8mm outside diameter tubing without tools or ferrules
• 1/8 inch BSPT male thread for direct connection to ISO R threaded ports
• Brass construction for corrosion resistance in air and compatible fluid service
• 150 psi maximum working pressure rating
• Nitrile O-ring seal for reliable media compatibility
• Operating temperature range of 0 degrees F to 175 degrees F

Compatibility

Designed as an OEM-style straight push-to-connect male connector for pneumatic and fluid systems using 8mm outside diameter tubing and 1/8 inch BSPT male threaded ports conforming to ISO R thread standards.

Installation Notes

Installation should be performed by a qualified plumber, pipefitter, or pneumatic technician. Depressurize and isolate the line before removing or installing any fitting. Ensure the tube end is cut cleanly and squarely and is free of burrs before inserting into the push-to-connect collet. Verify thread engagement is fully seated and leak-test the connection before returning the system to service.
