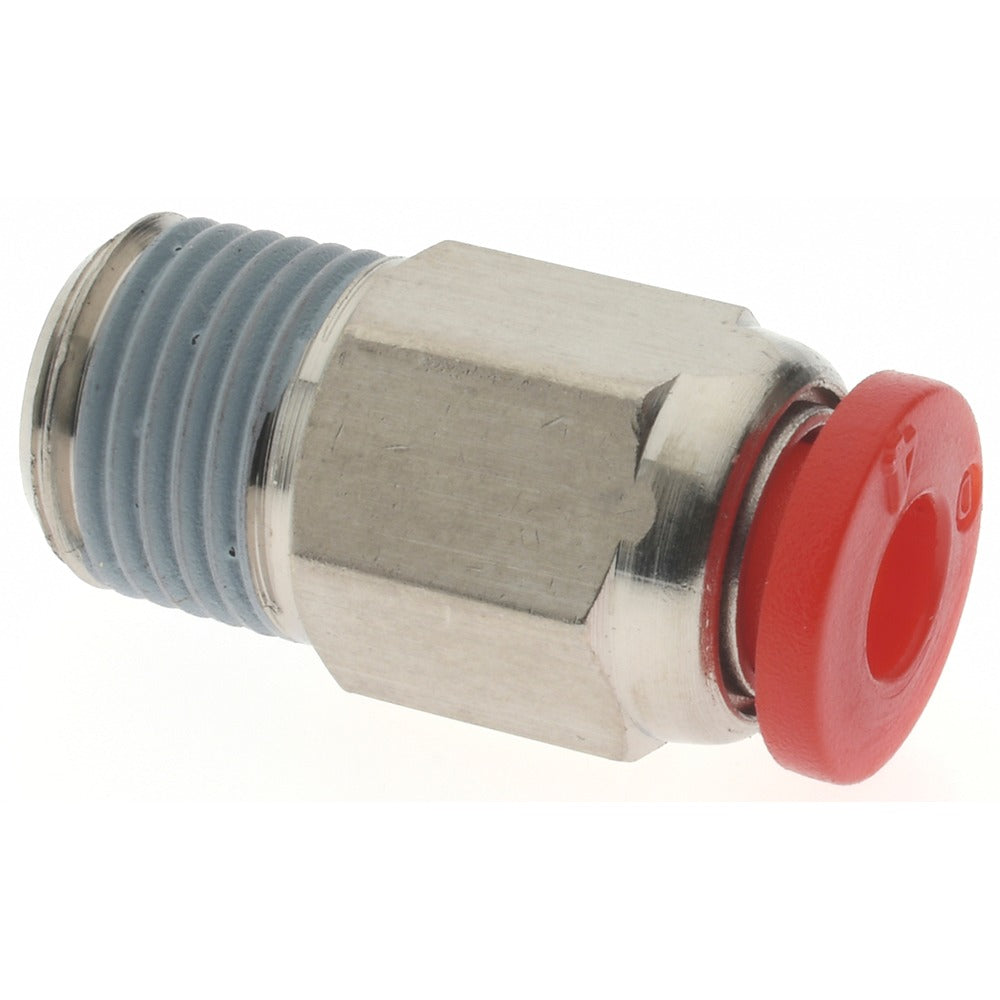

Norgren C01250418 Push-to-connect Bspt Tube Fitting

Product Description

The NORGREN C01250418 is a straight push-to-connect male connector designed for tube-to-male BSPT pneumatic or fluid line connections. Constructed from brass, it accepts tubing with a 4mm outside diameter and threads into a 1/8 inch BSPT male port in a single straight configuration. The fitting is rated for a maximum working pressure of 150 psi and handles temperatures from 0 degrees F up to 175 degrees F, making it suitable for a wide range of compressed air and light fluid service applications. It is installed by licensed plumbers, pipefitters, and instrumentation technicians during panel assembly, pneumatic circuit builds, or equipment maintenance work.

This fitting is used in residential and commercial pneumatic control systems, instrumentation lines, and compressed air distribution circuits where a compact, inline straight connection between tubing and a male-threaded port is required. Its push-to-connect design allows for fast, tool-free tube insertion, reducing assembly time in tight panel or cabinet installations. The BSPT thread form is common in European and ISO-standard equipment, process instrumentation, and imported pneumatic control components.

Key Features

• Push-to-connect design allows tool-free tube insertion and secure hold on 4mm OD tubing
• Brass construction provides corrosion resistance for compressed air and light fluid service
• 1/8 inch BSPT male thread conforms to ISO R thread standard for compatibility with metric-spec equipment
• Rated to 150 psi maximum working pressure
• Operating temperature range of 0 degrees F to 175 degrees F with nitrile O-ring seal
• Compact straight configuration for low-clearance installations

Compatibility

Designed as an OEM-style straight push-to-connect fitting for pneumatic and instrumentation systems using 4mm OD tubing and 1/8 inch BSPT male-threaded ports.

Installation Notes

Installation is typically performed by licensed pipefitters, instrumentation technicians, or qualified pneumatic system assemblers. Depressurize and isolate the pneumatic or fluid circuit completely before removing or installing any fittings. Ensure the tubing cut is clean and square before inserting into the push-to-connect collet to achieve a proper seal. BSPT is a tapered thread — do not interchange with BSPP or NPT ports, as thread form mismatch can result in leaks or fitting damage.
