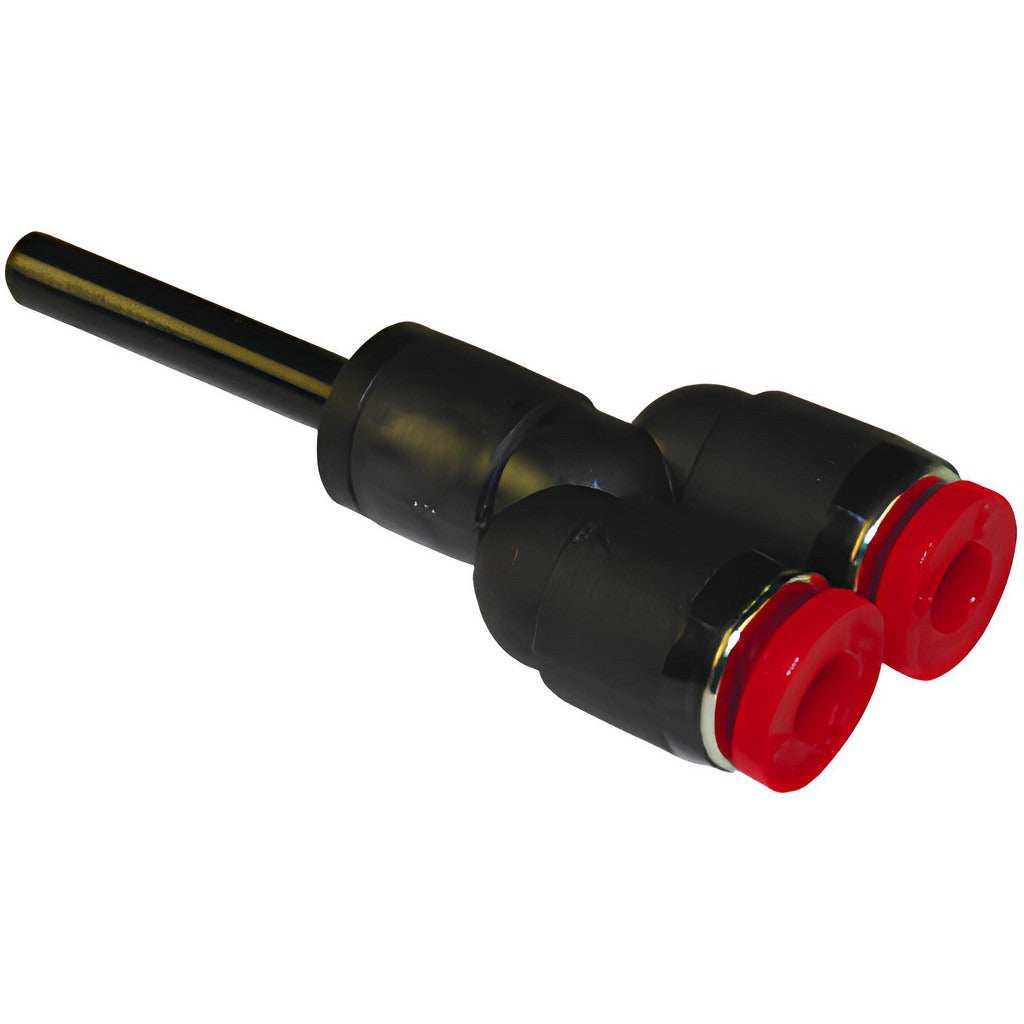

Norgren C00840600 Stem Y Tube Fitting Brass 150 Psi

Product Description

The NORGREN C00840600 is a brass push-to-connect stem Y tube fitting designed for general-purpose pneumatic and fluid conveyance applications. It connects tubing to a stem port in a Y-branch configuration, allowing a single line to split into two directions without additional fittings or tools. The fitting accommodates 6mm outside diameter tubing and is rated to 150 psi maximum working pressure. Nitrile O-rings provide a reliable seal across a working temperature range of 0 degrees F to 175 degrees F. Licensed plumbers, pipefitters, and industrial maintenance technicians are the typical installers for this type of fitting.

This fitting is suited for general-purpose pneumatic lines, low-pressure fluid systems, and instrumentation tubing in both light industrial and commercial settings. The push-to-connect design allows for tool-free tube insertion and simplifies installation in tight spaces or modular pneumatic assemblies. With an overall length of 54.50mm and a brass body, it is a compact and durable choice for branching 6mm OD tubing runs.

Key Features

• Push-to-connect design allows tool-free tube insertion and removal
• Brass body construction for corrosion resistance in general-purpose service
• Rated to 150 psi maximum working pressure
• Nitrile O-ring seal for reliable performance across the rated temperature range
• Y-branch configuration splits a single tube line into two outlets
• Compatible with 6mm outside diameter tubing on all ports

Compatibility

Designed for general-purpose use with 6mm outside diameter tubing in pneumatic and low-pressure fluid systems where push-to-connect stem fittings are specified.

Installation Notes

Depressurize and isolate the system completely before installing or removing push-to-connect fittings. Ensure tubing ends are cut cleanly and squarely to guarantee a proper seal at the O-ring. Verify that tubing outside diameter and material are within the rated specifications for this fitting before use. Follow applicable ASME, ANSI, or local codes for pneumatic and fluid piping installations.
