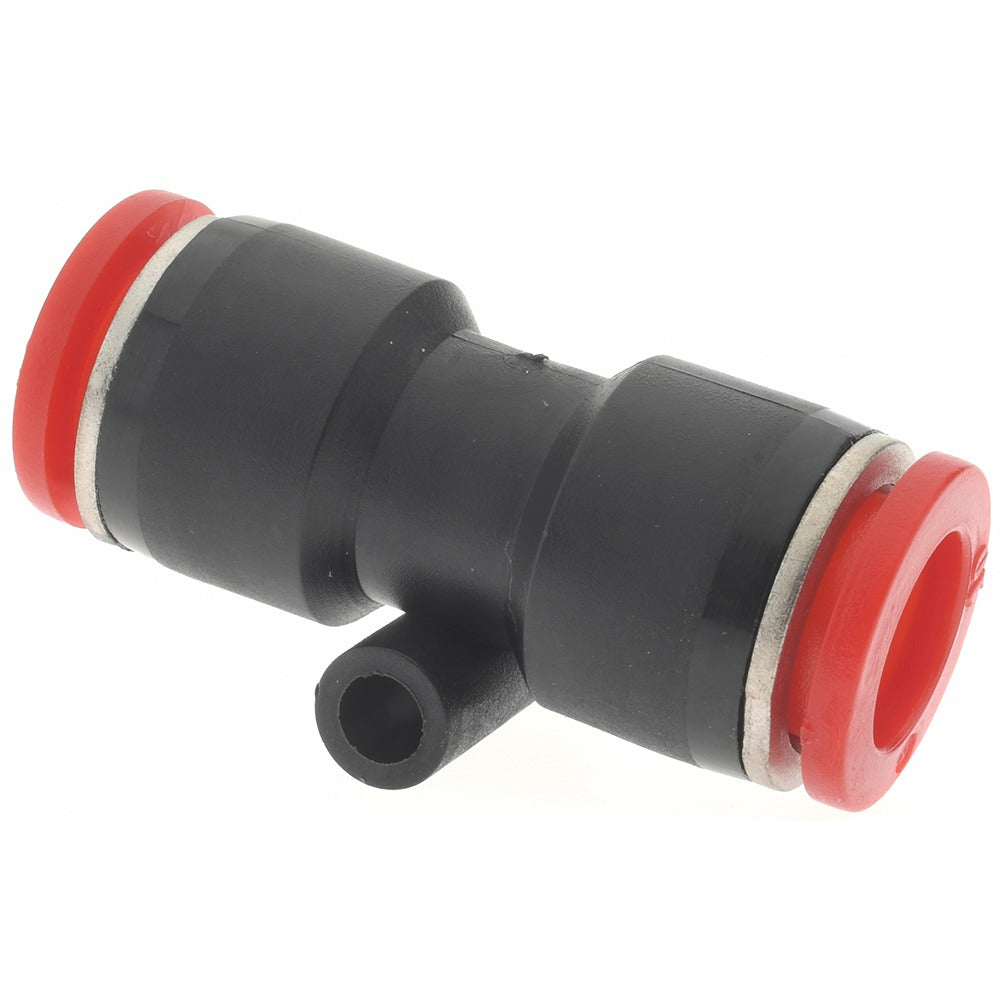

Norgren C00201000 Union Straight Tube Fitting 10mm

Product Description

The NORGREN C00201000 is a push-to-connect straight union tube fitting designed for tube-to-tube connections in pneumatic and fluid-handling systems. Constructed from brass, it accepts tubing with a 10mm outside diameter and is rated to 150 psi maximum working pressure. The push-to-connect design allows fast, tool-free tube insertion and secure retention without ferrules or compression nuts. Operating temperatures range from 0 degrees F to 175 degrees F, making it suitable for a broad range of industrial and mechanical service environments. Nitrile O-rings provide the internal sealing element. This fitting is typically installed by pipefitters, HVAC technicians, or pneumatic system mechanics.

The C00201000 is used in pneumatic control lines, fluid distribution circuits, and instrumentation tubing runs where a straight in-line union connection is needed. Its compact overall length of approximately 43.2mm suits panel-mounted or tight-clearance plumbing layouts. Suitable for both residential and light commercial mechanical systems wherever brass push-to-connect fittings are specified for 10mm OD tubing.

Key Features

• Push-to-connect design allows fast, tool-free tube insertion and removal
• Brass construction provides corrosion resistance in pneumatic and fluid service
• Rated to 150 psi maximum working pressure
• Nitrile O-ring sealing element for reliable gas and liquid service
• Wide temperature range: 0 degrees F to 175 degrees F
• Straight union configuration for in-line tube-to-tube connections

Compatibility

Designed as an OEM-style push-to-connect union fitting for pneumatic and fluid-handling tubing systems using 10mm outside diameter tubing.

Installation Notes

Installation requires depressurizing and de-energizing the system before working on any fittings or tubing connections. Cut tubing cleanly and squarely with a tube cutter to ensure a proper seal against the internal O-ring. Insert tubing fully until it seats; to release, depress the collet ring and withdraw the tube. Verify tube OD matches the 10mm specification before installation to prevent leaks or fitting damage.
