Norgren C/146125/MC/24 Rodless Slide Cylinder 1in 24in

Product Description

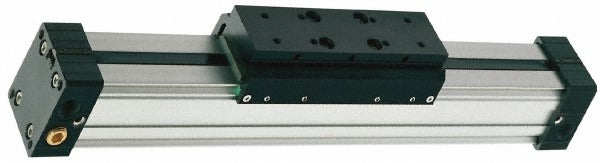

The NORGREN C/146125/MC/24 is a double acting rodless slide air cylinder designed for industrial pneumatic motion control applications. Built with an aluminum body, this cylinder features a 1 inch bore and a 24 inch stroke, making it well suited for linear positioning tasks that require a compact profile without a protruding rod. Maximum working pressure is 116 psi. Operating temperature range spans -22 degrees F to 176 degrees F. Licensed HVAC, automation, and mechanical technicians working with pneumatic systems will find this cylinder appropriate for a wide range of actuator and slide table installations.

This rodless slide cylinder fits residential and commercial pneumatic automation systems where space constraints make traditional rod-style cylinders impractical. The square style body and lightweight aluminum construction simplify mounting in tight enclosures or on linear guide assemblies. Dust protection features are built in, making the cylinder appropriate for environments where particulate contamination is a concern. Overall assembled length is 31.88 inches, overall height is 2.05 inches, and overall width is 2.66 inches. Port size is 1/8 NPTF for direct connection to standard pneumatic supply fittings.

Key Features

• Double acting cylinder provides positive force in both extend and retract directions
• 1 inch bore with 24 inch stroke for extended linear travel in a compact footprint
• Aluminum body construction keeps weight low while maintaining structural integrity
• Built-in dust protection extends service life in contaminated environments
• 1/8 NPTF port integrates directly with standard pneumatic supply lines
• Wide operating temperature range of -22 degrees F to 176 degrees F suits varied service conditions

Compatibility

Designed as an OEM-style replacement or direct-fit pneumatic actuator for industrial and commercial pneumatic slide and linear motion systems requiring a 1 inch bore double acting rodless cylinder configuration.

Installation Notes

Installation should be performed by a qualified pneumatic or mechanical technician familiar with compressed air systems. Shut off and bleed all compressed air supply lines before disconnecting or mounting any cylinder. Verify that supply pressure does not exceed the 116 psi maximum working pressure rating. Follow all applicable OSHA and local compressed air safety codes when commissioning or servicing pneumatic actuators.
