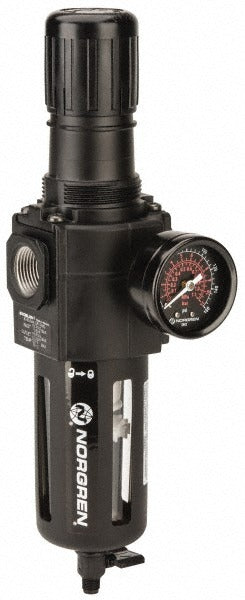

Norgren B74G-6AK-QP1-RMG Frl Filter Regulator 3/4 Npt

Product Description

The NORGREN B74G-6AK-QP1-RMG is a single-piece filter/regulator combination unit designed for compressed air systems that require inline filtration and pressure regulation in a compact, integrated assembly. Rated for up to 212 SCFM and a maximum supply pressure of 150 psi, this unit handles the flow demands of most industrial pneumatic circuits. The polycarbonate bowl with manual drain allows technicians to inspect and purge accumulated condensate without shutting down the line. At 11.93 inches tall and 3.15 inches wide, it fits standard panel and manifold installations. A pressure gauge is included for immediate downstream pressure verification at the point of installation.

This filter/regulator is suited for industrial and commercial pneumatic systems where air quality and regulated pressure are critical to actuator and tool performance. The 3/4 NPT end connections and modular design make it compatible with in-line plumbing runs and modular FRL manifold assemblies. A bowl guard is included for added protection in environments where the polycarbonate bowl may be exposed to impact or chemical splash. The unit operates up to a maximum temperature of 125 degrees F, making it appropriate for standard indoor compressed air distribution applications. Licensed pneumatic system technicians and industrial maintenance mechanics are the typical installers for this class of component.

Key Features

• Single-piece filter/regulator design reduces plumbing connections and installation time
• 212 SCFM flow capacity supports high-demand pneumatic circuits
• 150 psi maximum supply pressure rating
• Manual drain for controlled condensate removal without system shutdown
• Polycarbonate bowl with bowl guard for visual inspection and impact resistance
• Pressure gauge included with 1/4 inch gauge port for immediate downstream readout
• Modular connection support for integration into multi-unit FRL assemblies

Compatibility

Designed for use in compressed air systems with 3/4 NPT plumbing and modular FRL configurations requiring combined filtration and pressure regulation in a single body.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or industrial maintenance mechanic. Depressurize and lock out the compressed air supply before installing or servicing this unit. Mount in an upright, vertical orientation to ensure proper condensate collection in the bowl and effective manual draining. Consult applicable local codes and the system design specifications for proper placement upstream of sensitive pneumatic equipment.
