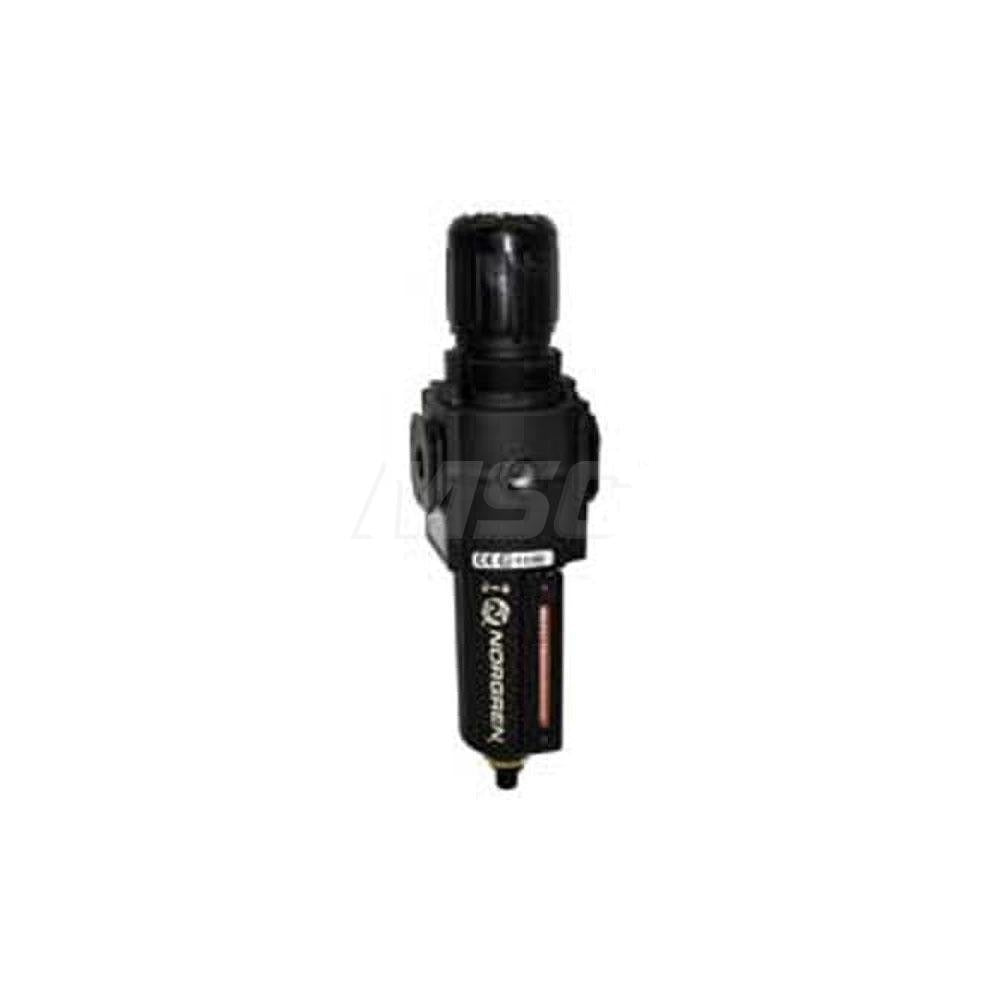

Norgren B74G-6AK-AD3-RMG Frl Combo Unit 3/4 Npt

Product Description

The NORGREN B74G-6AK-AD3-RMG is a three-stage FRL combination unit integrating a filter, regulator, and lubricator into a single inline assembly. Rated to a maximum supply pressure of 246 psi with a 3/4 NPT port size, this unit conditions compressed air at the point of use before it reaches pneumatic tools, actuators, or control equipment. The body and bowl are both aluminum construction, keeping weight low while maintaining durability in industrial service environments. Licensed HVAC technicians, pipefitters, and industrial maintenance professionals install this type of assembly wherever clean, regulated, and lubricated air is required for reliable pneumatic system operation.

This FRL unit is suited for light to heavy industrial compressed air systems where all three conditioning functions are needed in a compact, single-unit footprint. Typical installation locations include pneumatic control panels, machine tool air supply lines, and process equipment air preparation stations. The 3/4 NPT connection makes it compatible with standard pipe fittings commonly used in industrial and commercial facilities. At 5.0 inches wide and 11.35 inches tall, the unit fits in moderate-clearance panel or wall-mounted installations.

Key Features

• Three-in-one FRL design combines filtration, pressure regulation, and lubrication in a single assembly
• 246 psi maximum supply pressure rating suits a wide range of industrial compressed air systems
• 3/4 NPT port size integrates directly with standard pipe fittings
• Aluminum body and bowl construction reduces unit weight while resisting corrosion in typical shop environments
• Compact footprint at 5.0 inches wide and 11.35 inches tall for panel or inline mounting

Compatibility

Designed as an OEM-style replacement or upgrade FRL combination unit for industrial compressed air systems requiring 3/4 NPT inline air preparation with filtration, regulation, and lubrication in a single assembly.

Installation Notes

Installation is typically performed by licensed pipefitters or qualified industrial maintenance technicians. Depressurize and bleed down the compressed air supply line completely before removing or installing any FRL component. Follow applicable facility safety lockout/tagout procedures prior to service. Ensure all NPT threaded connections are sealed with appropriate thread sealant rated for compressed air service and confirm flow direction matches the directional arrow marked on the unit body.
