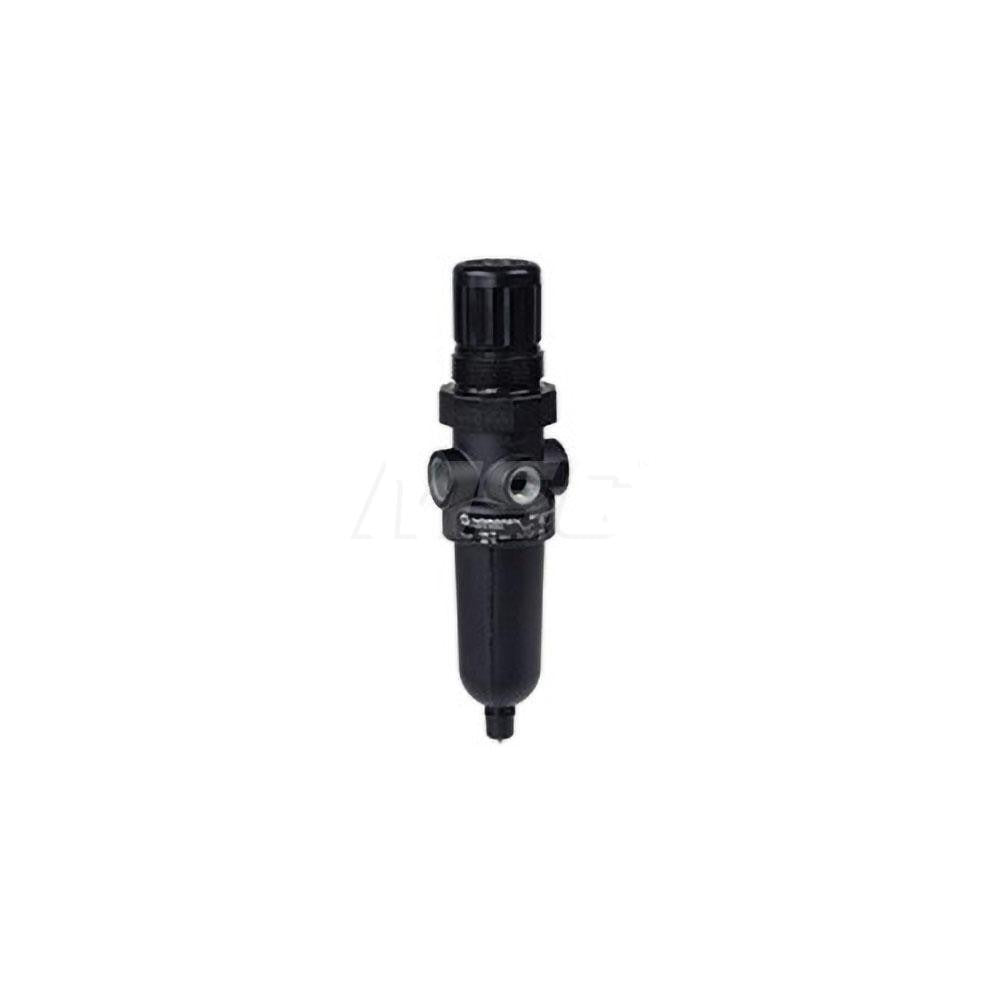

Norgren B07-234-M1KA Frl Combination Unit 1/4 Npt

Product Description

The NORGREN B07-234-M1KA is a compact FRL combination unit that integrates a filter, regulator, and lubricator into a single inline assembly. Designed for compressed air systems, it conditions plant air before it reaches downstream pneumatic equipment by removing contaminants, regulating supply pressure, and delivering metered lubrication. The unit accepts a maximum supply pressure of 250 psi through a 1/4 NPT port, making it well suited for standard shop air and light industrial pneumatic circuits. Both the bowl and body are zinc construction, balancing durability with weight. Licensed HVAC and industrial maintenance technicians install this type of unit as part of air preparation on pneumatic control systems.

This FRL unit is appropriate for use in light to medium-duty compressed air applications in both residential and commercial mechanical rooms, production environments, and equipment service stations. It is typically installed close to the point of use to ensure clean, regulated, and lubricated air reaches actuators, pneumatic valves, cylinders, and control instruments. The 1/4 NPT port size suits smaller pneumatic tool lines and instrument air branches. At 1.0 inch wide and 6.45 inches tall, the unit fits in tight panel or inline installations where space is limited.

Key Features

• Integrated filter, regulator, and lubricator in one compact assembly
• 1/4 NPT port size for standard small-bore pneumatic connections
• 250 psi maximum supply pressure rating
• Zinc bowl and body construction for corrosion resistance in air service
• Compact footprint: 1.0 inch wide and 6.45 inches tall
• Lightweight at 0.57 pounds for easy inline mounting

Compatibility

Designed as an OEM-style replacement or direct installation FRL unit for 1/4 NPT compressed air lines in light to medium-duty pneumatic systems.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air system safety. Isolate and depressurize the air supply line completely before installing or servicing this unit. Apply appropriate thread sealant to all NPT connections and tighten per standard pipe fitting practice without over-torquing zinc-body fittings. Verify supply pressure does not exceed 250 psi during system commissioning and confirm downstream equipment lubrication requirements before activating the lubricator section.
