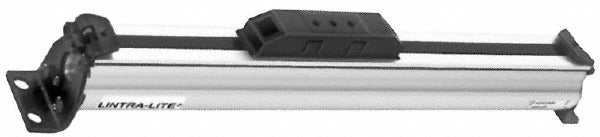

Norgren A44O25AADANOO6A Rodless Slide Air Cylinder

Product Description

The NORGREN A44O25AADANOO6A is a double acting rodless slide air cylinder designed for industrial pneumatic automation applications. It features a 1 inch bore and a 6 inch stroke, delivering linear motion without an external rod to save space along the axis of travel. The aluminum body keeps weight low while maintaining structural integrity under a maximum working pressure of 116 psi. Weighing 3 pounds, this compact cylinder suits machine builders, maintenance technicians, and automation integrators working in tight envelope constraints. The square style body and foot mount configuration make positioning and alignment straightforward during installation.

This cylinder is suited for light-to-medium duty industrial automation tasks where a traditional rod-style cylinder would extend too far into the work envelope. Foot mount style allows direct bolting to machine frames or custom fixtures. The operating temperature range of -22 degrees F to 180 degrees F makes it appropriate for both cold storage equipment and heated production environments. The 1/8 NPTF port size is compatible with standard pneumatic fittings commonly used in compressed air systems. Buffer or adjustable cushioning reduces end-of-stroke impact, extending component life in repetitive cycling applications. Integral switch mounting grooves allow proximity sensors or reed switches to be added without external brackets.

Key Features

• Double acting operation provides powered motion in both extend and retract directions
• Rodless design eliminates external rod overhang, reducing required clearance along the stroke axis
• Aluminum body construction reduces overall weight while maintaining durability
• Buffer or adjustable cushioning absorbs end-of-stroke shock in high-cycle applications
• Integral switch mounting accommodates position sensing without additional hardware
• 1/8 NPTF port threads provide a reliable seal with standard pneumatic fittings
• Foot mount style simplifies fixture mounting and alignment during machine build

Compatibility

Designed as a direct-fit replacement or new-installation pneumatic rodless slide cylinder for industrial automation systems requiring a 1 inch bore, 6 inch stroke, foot mount configuration with 1/8 NPTF porting.

Installation Notes

Installation should be performed by a qualified pneumatics technician or automation maintenance professional. Isolate and exhaust all compressed air from the circuit before removing or installing any pneumatic component. Verify that supply pressure does not exceed the 116 psi maximum working pressure rating. Ensure all NPTF fittings are properly sealed and torqued per fitting manufacturer specifications, and confirm mounting fasteners are adequate for the load and cycle rate of the application.
