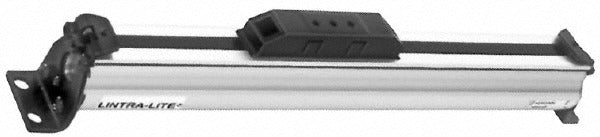

Norgren A44O25AADANO24A Rodless Slide Air Cylinder

Product Description

The NORGREN A44O25AADANO24A is a double acting rodless slide air cylinder designed for industrial pneumatic motion control applications. With a 1 inch bore and a 24 inch stroke, this cylinder delivers linear actuation across a wide travel range without the space penalty of a traditional rod cylinder. The aluminum body keeps weight manageable at 5 pounds while maintaining structural rigidity under pressure up to 116 psi. A 1/8 NPTF port provides a standard threaded connection to pneumatic supply lines. Licensed industrial maintenance technicians and pneumatic system integrators are the primary installers of this component.

This cylinder suits automated machinery, material handling systems, and production line positioning equipment in industrial and light manufacturing environments. The rodless slide design is well matched to applications requiring long stroke travel in confined linear spaces. The foot mount configuration allows direct fastening to machine frames or structural members. Operating temperature range spans -22 degrees F to 180 degrees F, making it suitable for both ambient indoor production environments and temperature-variable industrial settings. No specific model or system compatibility data was provided beyond the mounting and port specifications listed above.

Key Features

• Double acting operation provides powered motion in both extend and retract directions
• 24 inch stroke length enables long-travel linear positioning in a compact rodless package
• Aluminum body construction reduces overall system weight while resisting corrosion
• Buffer or adjustable cushioning helps control end-of-stroke deceleration and reduce impact shock
• Integral switch mounting allows direct attachment of magnetic or reed position sensors without additional brackets
• Proven sealing system maintains consistent pneumatic performance across the full stroke range

Compatibility

Designed as an OEM-style pneumatic actuator for use in industrial automation systems requiring a foot-mount, double acting rodless slide cylinder with a 1 inch bore, 24 inch stroke, and 1/8 NPTF port connections.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or industrial maintenance professional. Depressurize and lock out the pneumatic supply before mounting or servicing this cylinder. Ensure the foot mount fasteners are torqued to the machine manufacturer's frame specifications and that port fittings are compatible with 1/8 NPTF threading to prevent leaks. Verify the supply pressure does not exceed 116 psi at any point in the circuit.
