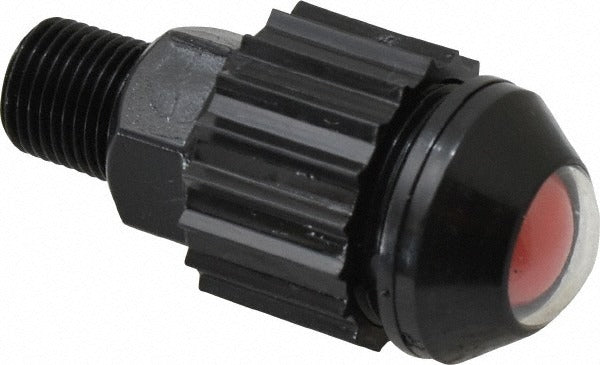

Norgren 5VS-212-000 Rotowink Pressure Indicator Bottom Port

Product Description

The NORGREN 5VS-212-000 is a Rotowink-style pressure indicator designed to provide a quick visual confirmation of system pressure status in pneumatic and fluid control applications. The unit features a 1/8 inch male NPTF bottom port for direct inline or manifold mounting. Operating pressure range is 15 to 150 psiG. The indicator displays red when unactuated and switches to green when the system reaches actuated pressure, giving technicians an immediate pass/fail read without the need for a separate gauge. Licensed plumbers, pipefitters, and pneumatic system technicians are the typical installers.

This pressure indicator is suited for use in compressed air systems, pneumatic control circuits, and fluid power applications where a compact, at-a-glance status indicator is needed. The bottom-entry NPTF port allows installation directly into a manifold block, valve body, or pipe fitting without additional adapters in most standard configurations. It is rated for continuous use up to 150 degrees F, making it appropriate for both indoor industrial and light mechanical room environments.

Key Features

• Rotowink visual indicator: red when unactuated, green when actuated for instant status confirmation
• Pressure range of 15 to 150 psiG
• 1/8 inch male NPTF bottom port for direct manifold or inline mounting
• Maximum temperature rating of 150 degrees F
• Compact form factor at 0.7 pounds for easy integration in tight panel or manifold layouts

Compatibility

Designed as an OEM-style replacement or addition for pneumatic control systems and fluid power circuits that accept 1/8 inch male NPTF bottom-port pressure indicators in the 15 to 150 psiG operating range.

Installation Notes

Installation is typically performed by a licensed pipefitter, pneumatic technician, or fluid power specialist. Depressurize and lock out the system before removing any existing indicator or fitting. Apply appropriate thread sealant compatible with the system media to the male NPTF threads before installation. Verify that system operating pressure does not exceed the 150 psiG maximum rated inlet pressure after startup.
