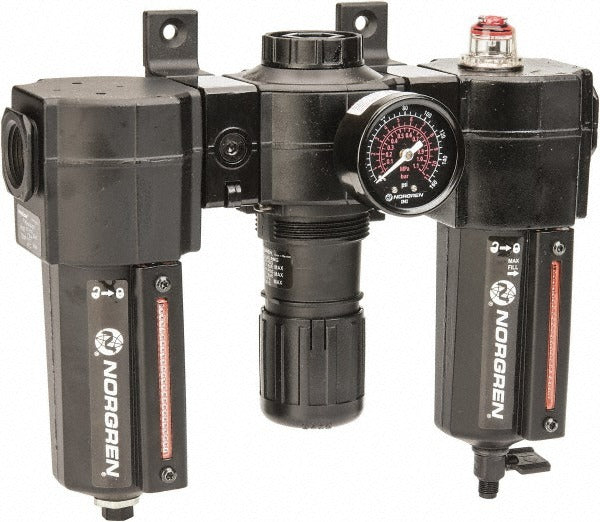

Norgren 24-074-158-260 Frl Unit 1/2 Npt 138 Scfm

Product Description

The NORGREN 24-074-158-260 is a 3-piece Filter-Regulator-Lubricator (FRL) combination unit designed for compressed air system conditioning in industrial and commercial pneumatic applications. This Series 24 unit handles up to 250 psi supply pressure and delivers up to 138 SCFM of conditioned airflow through a 1/2 NPT port. The metal bowl with automatic drain and integrated pressure gauge make it a complete, service-ready air preparation assembly. Licensed HVAC technicians, pipefitters, and industrial maintenance professionals install this type of unit at the point of use in pneumatic tool and equipment lines.

This FRL unit is suited for industrial compressed air systems requiring filtration, pressure regulation, and lubrication in a single modular assembly. The modular connection design allows integration into multi-unit air preparation stations. The 1/2 NPT end connections and 1/4 NPT gauge port accommodate standard compressed air line hardware. A sight glass is included for lubricator oil-level monitoring without disassembly. The automatic drain reduces manual maintenance intervals on the filter bowl. Typical installations include production equipment, pneumatic control panels, and compressor-fed tool drops in commercial and light industrial facilities.

Key Features

• 3-piece FRL configuration: filter, regulator, and lubricator in one modular assembly
• 138 SCFM flow capacity with 1/2 NPT end connections
• 250 psi maximum supply pressure rating
• Metal bowl with automatic drain for low-maintenance operation
• Pressure gauge included with 1/4 NPT gauge port
• Sight glass included for oil-level inspection without removal
• Modular connection supports multi-unit air preparation configurations

Compatibility

Designed as an OEM-style replacement or new-install FRL unit for 1/2 NPT compressed air systems requiring a standard 3-piece filter-regulator-lubricator assembly rated to 250 psi.

Installation Notes

Installation is typically performed by a licensed pipefitter or qualified industrial maintenance technician. Isolate and depressurize the compressed air line completely before removing or installing any FRL component. Follow local plumbing and mechanical codes, including applicable OSHA compressed air safety requirements. Do not exceed the rated 250 psi supply pressure, and verify downstream equipment pressure requirements before adjusting the regulator.
