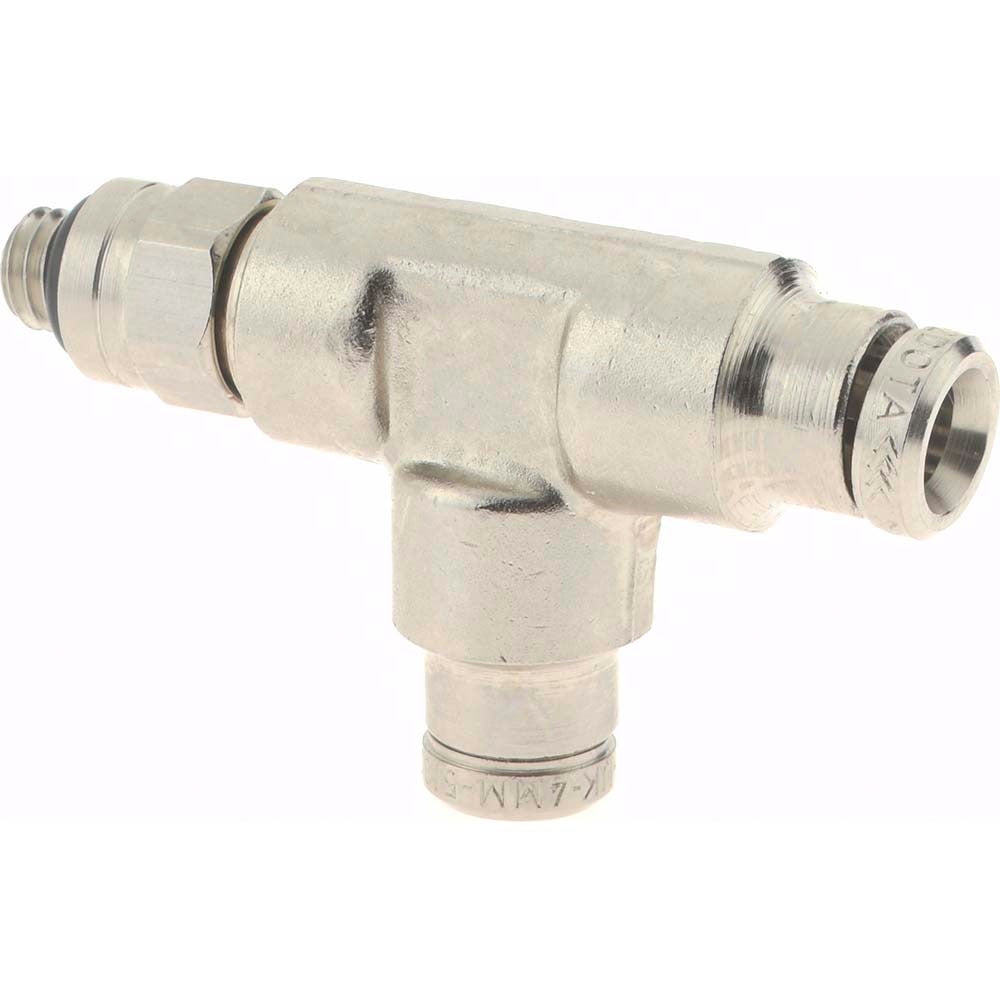

Norgren 124680210 Swivel Male Side Tee 5/32 in 10-32 Unf

Product Description

The NORGREN 124680210 is a Pneufit swivel male side tee push-to-connect tube fitting designed for pneumatic tubing systems. It accepts 5/32 inch OD tubing on both tube ports and terminates with a 10-32 UNF male thread on the side outlet. The body is nickel-plated brass, rated to 260 psi maximum working pressure. The swivel feature on the male end allows repositioning after installation, reducing stress on tubing runs. HVAC technicians, pneumatic system integrators, and industrial maintenance professionals install this fitting where a compact tee connection between small-bore tubing and a threaded port is required.

This fitting is suited for pneumatic control circuits, instrument air lines, and small-bore tubing assemblies operating within a temperature range of -4 degrees F to 175 degrees F. It is commonly used in residential and light commercial HVAC controls, pneumatic actuator circuits, and fluid-handling panel assemblies where a tee branch to a male UNF threaded port is needed. The push-to-connect design allows fast, tool-free tube insertion and removal, which speeds up panel builds and field service work.

Key Features

• Push-to-connect design accepts 5/32 inch OD tubing without tools for fast installation and removal
• Swivel male side outlet allows rotational adjustment after assembly to align with threaded ports
• Nickel-plated brass construction provides corrosion resistance in pneumatic and instrument air environments
• Rated to 260 psi maximum working pressure for reliable performance in standard pneumatic circuits
• Wide service temperature range of -4 degrees F to 175 degrees F suits most HVAC and industrial control applications
• Vacuum-rated to 29.5 in-Hg, supporting use in vacuum as well as pressure pneumatic systems

Compatibility

Designed as an OEM-style push-to-connect fitting for pneumatic systems using 5/32 inch OD tubing and 10-32 UNF threaded ports.

Installation Notes

Installation should be performed by a qualified pneumatic or HVAC technician. Depressurize and lock out the pneumatic circuit before removing or installing any fittings. Ensure tubing is cut square and free of burrs before insertion into the push-to-connect ports to achieve a proper seal. Confirm the 10-32 UNF male thread is fully engaged and the swivel body is oriented before final pressurization.
