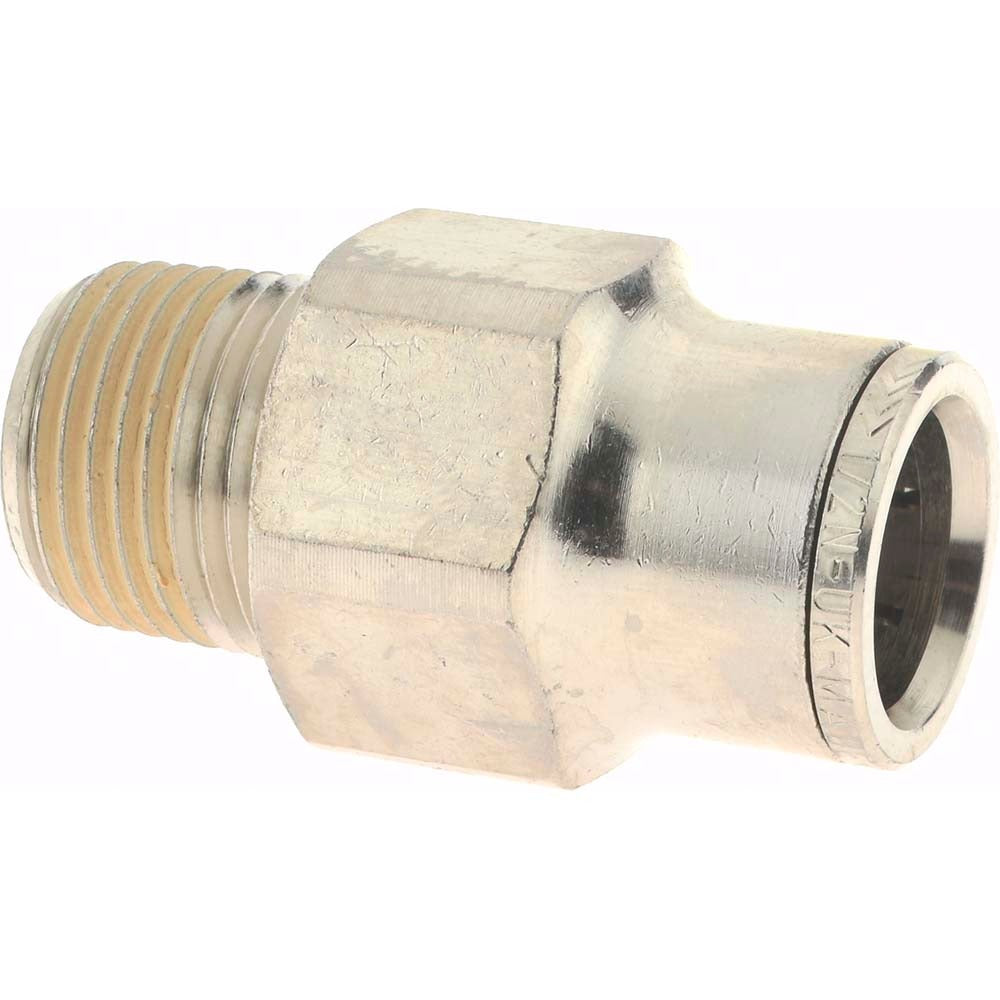

Norgren 124250738 Push-to-connect Male Adapter 1/2 Od

Product Description

The NORGREN 124250738 is a straight Pneufit push-to-connect male adapter designed for pneumatic tubing systems. It connects 1/2 inch OD tubing to a 3/8 inch NPTF male threaded port using a tool-free push-to-connect tube end on one side and a threaded male connection on the other. Constructed from nickel-plated brass, this fitting handles a maximum working pressure of 260 psi and operates across a temperature range of -4 degrees F to 175 degrees F. It also carries a vacuum rating of 29.5 in-Hg. Licensed plumbers, pipefitters, and pneumatic system technicians install this type of fitting in compressed air and fluid control lines.

This adapter fits straight-run tubing installations where a quick, reliable tube-to-port connection is required. It is suited for residential and light commercial pneumatic control systems, instrumentation lines, and compressed air distribution where 1/2 inch OD tubing must terminate at an NPTF male-threaded port. The push-to-connect tube end reduces installation time and allows for easy field servicing without specialty tooling. Overall installed length is 1.63 inches.

Key Features

• Push-to-connect tube end accepts 1/2 inch OD tubing without tools
• 3/8 inch NPTF male threaded port for secure, leak-resistant connections
• Nickel-plated brass construction resists corrosion in pneumatic service environments
• Rated to 260 psi maximum working pressure
• Vacuum-rated to 29.5 in-Hg for use in vacuum line applications
• Compact overall length of 1.63 inches suits tight plumbing runs

Compatibility

Designed as an OEM-style replacement or new-installation fitting for pneumatic systems using 1/2 inch OD tubing with 3/8 inch NPTF male-threaded port connections.

Installation Notes

Installation is performed by licensed pipefitters, plumbers, or pneumatic system technicians. Depressurize and isolate the pneumatic circuit fully before removing or installing any fittings. Ensure the mating port threads conform to NPTF standards and that the tubing cut is clean and square before inserting into the push-to-connect end. Verify all connections are leak-tested at operating pressure before returning the system to service.
