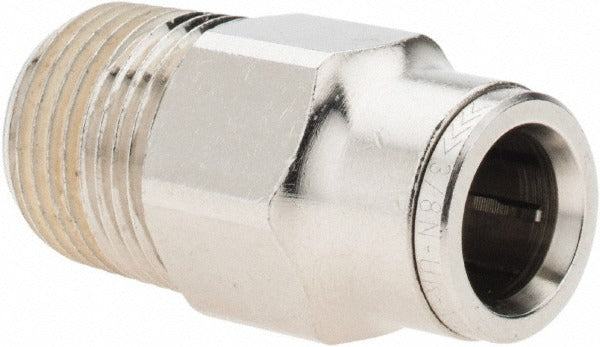

Norgren 124250638 Push-to-connect Male Adapter 3/8 in

Product Description

The NORGREN 124250638 is a Pneufit straight push-to-connect male adapter designed for pneumatic tubing systems. It connects 3/8-inch OD tubing to a 3/8-inch NPTF male threaded port in a single inline configuration. Constructed from nickel-plated brass, the fitting handles working pressures up to 260 psi and operates across a temperature range of -4 degrees F to 175 degrees F. A vacuum rating of 29.5 in-Hg makes it suitable for both pressure and vacuum applications. HVAC technicians, industrial maintenance techs, and pneumatic system installers use this fitting where a tool-free tube connection to a threaded male port is required.

This fitting is suited for residential and light commercial pneumatic control systems, instrumentation lines, and compressed air distribution applications. The push-to-connect design allows fast tube insertion and release without additional fittings or ferrules. Its straight configuration is appropriate for inline runs where the tube and port share a common axis. The NPTF thread form provides a pressure-tight seal on compatible tapered female pipe thread ports.

Key Features

• Push-to-connect tube insertion for tool-free assembly and disassembly
• 3/8-inch OD tube connection with 3/8-inch NPTF male thread
• Nickel-plated brass construction for corrosion resistance
• 260 psi maximum working pressure
• Vacuum-rated to 29.5 in-Hg for suction-line applications
• Operating range of -4 degrees F to 175 degrees F

Compatibility

Designed as a straight push-to-connect male adapter for pneumatic tubing systems using 3/8-inch OD tubing and 3/8-inch NPTF male threaded ports.

Installation Notes

Installation is performed by pneumatic system technicians or HVAC controls mechanics. Depressurize and isolate the pneumatic or compressed air line completely before servicing any fitting. Ensure the receiving female port is a tapered NPTF thread to achieve a proper pressure-tight engagement. Tube ends should be cut square and free of burrs before insertion into the push-to-connect collet.
