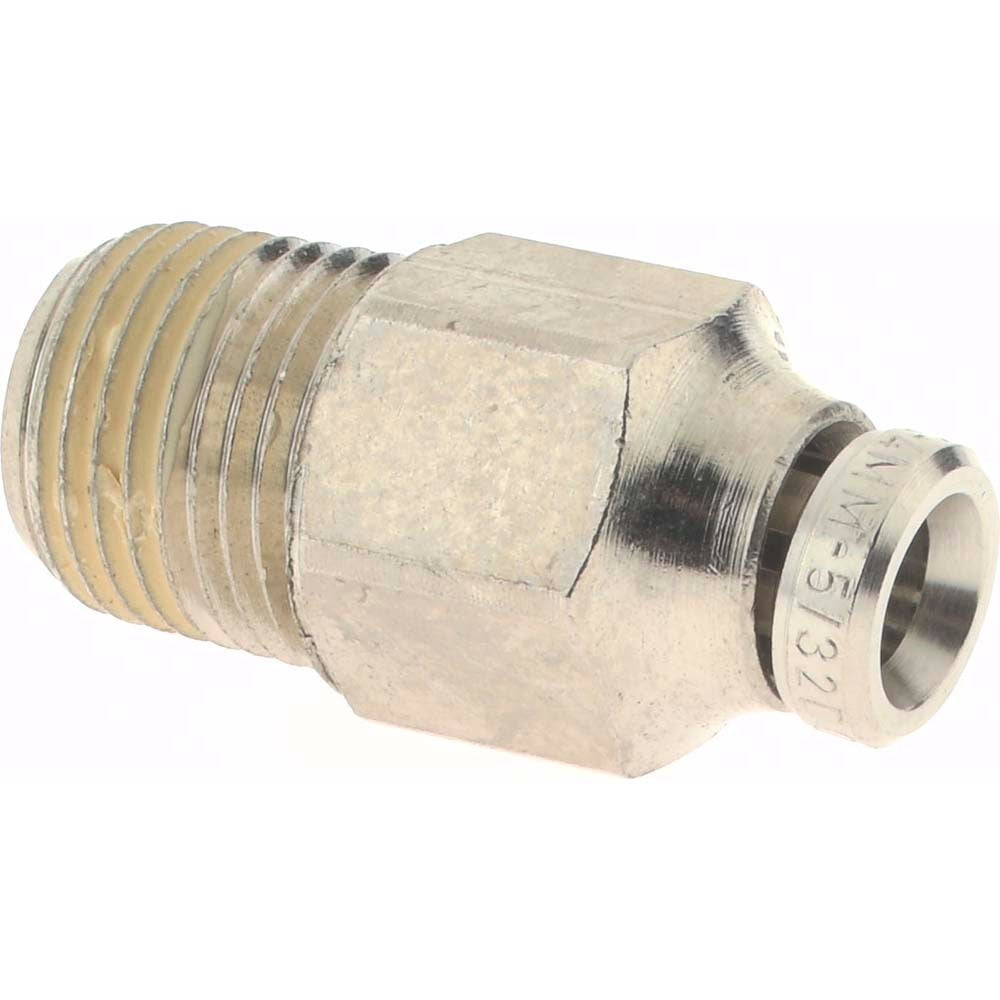

Norgren 124250218 Push-to-connect Male Adapter 5/32 Od

Product Description

The NORGREN 124250218 is a Pneufit push-to-connect male adapter designed for pneumatic tubing systems. It connects 5/32 inch OD tubing to a 1/8 inch NPTF male threaded port, providing a fast, tool-free tube insertion on one end and a threaded port connection on the other. Constructed from nickel-plated brass, the fitting is rated to 260 psi maximum working pressure and handles temperatures from -4 degrees F to 175 degrees F. This type of fitting is commonly installed by pneumatic system technicians, HVAC controls specialists, and industrial maintenance professionals working with compressed-air or instrument-air circuits.

This adapter fits applications where a pneumatic tube must terminate at or transition into a male NPT-style threaded component. Typical uses include instrument panels, pneumatic actuator hookups, control valve manifolds, and HVAC pneumatic control systems where 5/32 inch OD tubing feeds into a 1/8 inch male-threaded port on a valve body, sensor, or manifold block. The compact 0.89 inch overall length suits installations in tight enclosures or panel-mounted assemblies.

Key Features

• Push-to-connect design allows fast, tool-free tube insertion and removal
• 5/32 inch OD tube port mates with standard small-bore pneumatic tubing
• 1/8 inch NPTF male thread provides a pressure-tight connection to threaded ports
• Nickel-plated brass construction resists corrosion in light industrial and HVAC environments
• Rated to 260 psi, suitable for typical compressed-air and instrument-air service pressures
• Compact overall length of 0.89 inches for use in space-constrained assemblies

Compatibility

Designed as an OEM-style push-to-connect fitting for pneumatic systems using 5/32 inch OD tubing and 1/8 inch NPTF male-threaded port connections in compressed-air and instrument-air applications.

Installation Notes

De-pressurize and lock out the pneumatic circuit before removing or installing any fittings. Ensure tubing is cut cleanly and squarely, with no burrs, before inserting into the push-to-connect port. Apply appropriate thread sealant or PTFE tape to the NPTF male threads per the system manufacturer and applicable plumbing or pneumatic codes. Do not exceed the rated working pressure or temperature limits for the fitting.
