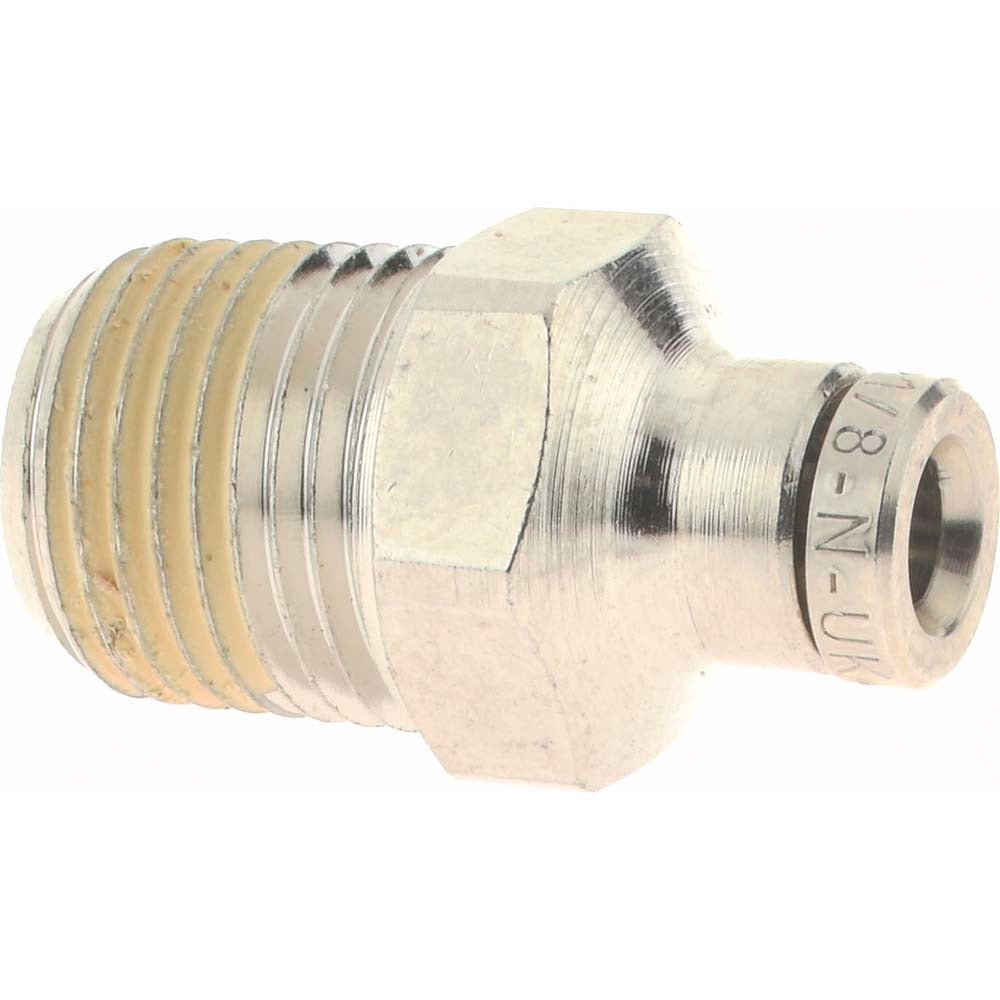

Norgren 124250118 Push-to-connect Male Adapter 1/8 in

Product Description

The NORGREN 124250118 is a straight push-to-connect male adapter from the Pneufit line, designed to join 1/8-inch OD tubing to a 1/8-inch male NPTF threaded port in a single inline configuration. Constructed from nickel-plated brass, this fitting handles a maximum working pressure of 260 psi and an operating temperature range of -4 degrees F to 175 degrees F. The push-to-connect design allows tubing to be inserted and locked without additional tools, making it a practical choice for pneumatic plumbing work in tight or high-cycle applications. It is sold individually and suited for use anywhere a compact, reliable tube-to-male-thread transition is needed.

This adapter is used in pneumatic control systems, compressed air distribution lines, and instrumentation plumbing in commercial and industrial settings. Typical install scenarios include connecting small-diameter polyurethane or nylon tubing to manifold ports, valve bodies, or threaded fittings on pneumatic actuators and controllers. The 1/8-inch tube OD and 1/8-inch NPTF thread size make it a common selection for low-flow control circuits and sensor lines. HVAC technicians, pipefitters, and pneumatic controls specialists will encounter this type of fitting in building automation and equipment control panels.

Key Features

• Push-to-connect design locks 1/8-inch OD tubing without tools for fast, repeatable assembly
• 1/8-inch NPTF male thread for leak-resistant connection at the threaded port
• Nickel-plated brass construction for corrosion resistance in pneumatic air service
• 260 psi maximum working pressure rated for standard compressed air systems
• Vacuum-rated to 29.5 inches Hg, suitable for light vacuum circuit applications
• Compact 0.67-inch overall length for installation in confined spaces

Compatibility

Designed as an OEM-style replacement or service fitting for pneumatic systems using 1/8-inch OD tubing and 1/8-inch NPTF threaded ports in compressed air or light vacuum applications.

Installation Notes

Installation should be performed by a qualified pipefitter, pneumatic controls technician, or HVAC controls specialist. Depressurize the system and verify zero pressure before removing or installing any pneumatic fitting. Thread sealant appropriate for NPTF connections may be used per manufacturer guidelines; do not overtighten the threaded end into the mating port. Ensure tubing is cut cleanly and squarely before insertion to achieve a proper push-to-connect seal.
