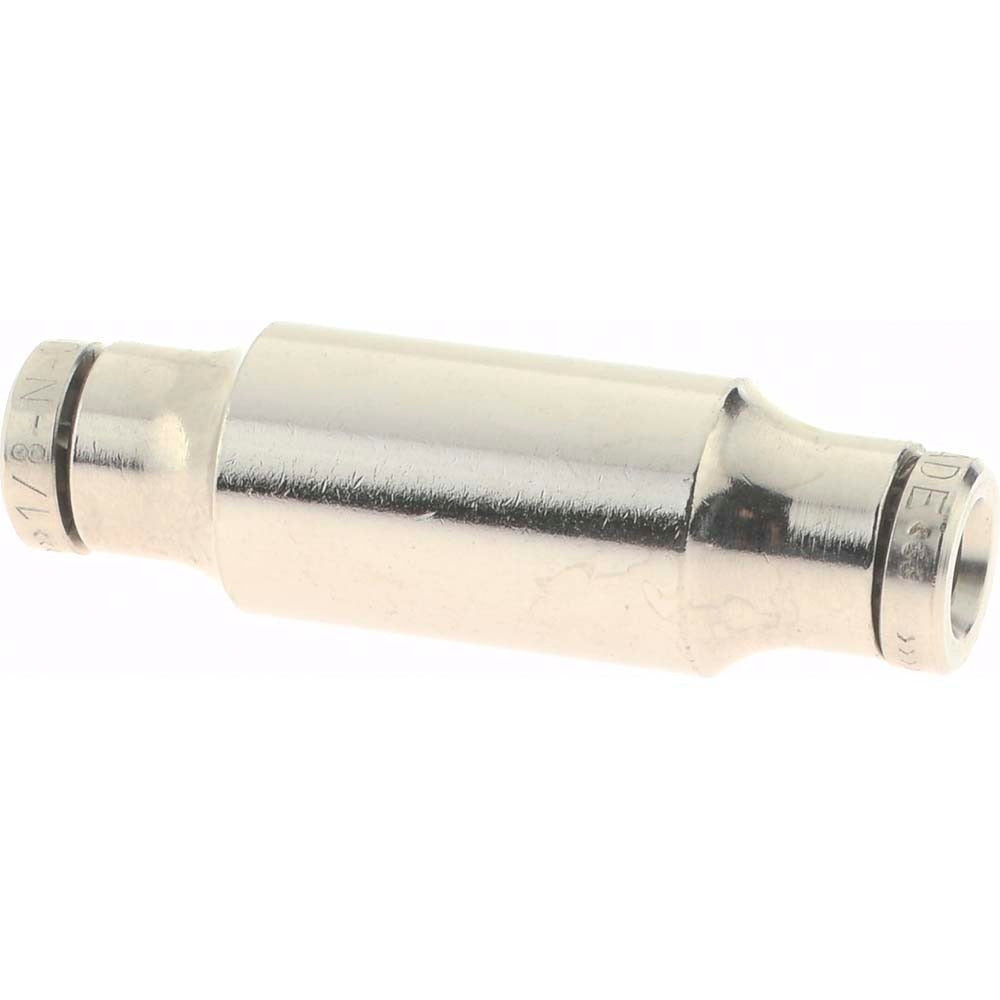

Norgren 120200100 Push-to-connect Union Fitting 1/8 in

Product Description

The NORGREN 120200100 is a push-to-connect straight union tube fitting in the Pneufit line, designed for tube-to-tube connections in pneumatic systems. Constructed from nickel-plated brass, it handles a maximum working pressure of 260 psi and operates across a temperature range of -4 degrees F to 175 degrees F. The fitting measures 1.15 inches in overall length and accepts 1/8 inch OD tubing on both ends. No tools are required for tube insertion, making it a fast, reliable choice for field assembly or panel plumbing on compressed air and pneumatic control circuits.

This fitting is suited for light industrial and commercial pneumatic plumbing where a compact, inline union is needed between two runs of 1/8 inch OD tubing. Typical applications include instrument air lines, pneumatic control panels, and automated machinery where quick, secure tube connections minimize assembly time. The nickel-plated brass construction resists corrosion in environments where moisture or mild chemicals may be present.

Key Features

• Push-to-connect design allows tool-free tube insertion and secure retention
• Nickel-plated brass body for corrosion resistance and durability
• Rated to 260 psi maximum working pressure
• Wide temperature range: -4 degrees F to 175 degrees F
• Vacuum-rated to 29.5 in-Hg for vacuum circuit applications
• Compact 1.15 inch overall length for tight plumbing layouts

Compatibility

Designed as an OEM-style push-to-connect union for pneumatic systems using 1/8 inch OD tubing, compatible with standard Pneufit-style tube fittings in compressed air and instrument air applications.

Installation Notes

Installation is typically performed by instrumentation technicians, pneumatic system assemblers, or HVAC controls technicians. Before servicing any pneumatic line, depressurize the system completely and verify zero pressure before inserting or removing tubing. Ensure tubing ends are cut square and deburred for a proper seal. Tube release is achieved by depressing the collet ring while withdrawing the tube.
