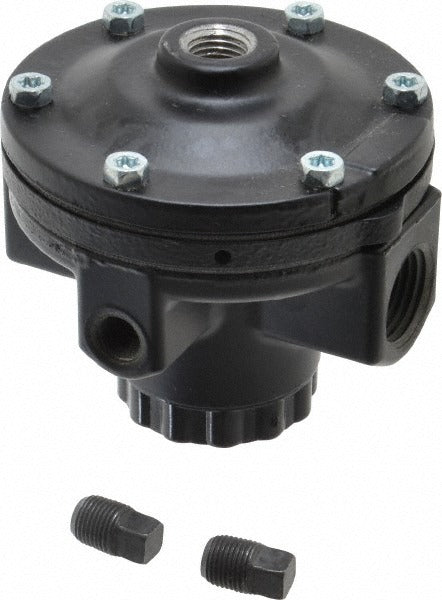

Norgren 11-008-130 Air Pilot Regulator 400 Psi 1/2 in Nptf

Product Description

The NORGREN 11-008-130 is an air pilot operated compressed air regulator designed to deliver precise downstream pressure control in demanding pneumatic systems. Part of the 11-008 series, it accepts a maximum supply pressure of 400 psi and supports a pressure range of 10 to 400 psi, making it suitable for high-pressure industrial pneumatic applications. Maximum airflow capacity is 70 CFM through a 1/2-inch NPTF port. The body is constructed from zinc and aluminum. This regulator is installed by industrial maintenance technicians and pipefitters working on compressed air distribution systems.

The 11-008-130 is suited for use with neutral gas media, including compressed air, in industrial and commercial pneumatic circuits. It fits into modular or standalone pneumatic control systems where remote air pilot signal control of downstream pressure is required. The integrated relief function allows excess downstream pressure to vent when the pilot signal drops, which is useful in circuits requiring rapid pressure release. No pressure gauge is included, though a 1/2-inch gauge port is available for field installation of a gauge if monitoring is needed.

Key Features

• Air pilot operated regulator — downstream pressure is set by a pilot air signal, not a manual adjustment knob
• 400 psi maximum supply pressure with a 10 to 400 psi adjustable output range
• 70 CFM maximum airflow through a 1/2-inch NPTF port
• Built-in relief function vents excess downstream pressure when pilot signal is reduced
• Zinc and aluminum construction for a balance of durability and weight
• 1/2-inch gauge port included for optional field-installed pressure gauge

Compatibility

Designed for use with compressed air and neutral gas media in industrial pneumatic systems requiring pilot-operated pressure regulation at 1/2-inch NPTF connections. Part of the NORGREN 11-008 series.

Installation Notes

Installation should be performed by a qualified pipefitter or industrial maintenance technician familiar with compressed air systems. Depressurize and lock out the compressed air supply before installing or servicing this regulator. Ensure inlet and outlet piping are correctly oriented per the flow direction marked on the body. Thread sealant appropriate for pneumatic service should be applied to male NPT threads per applicable plumbing and pneumatic system codes.
