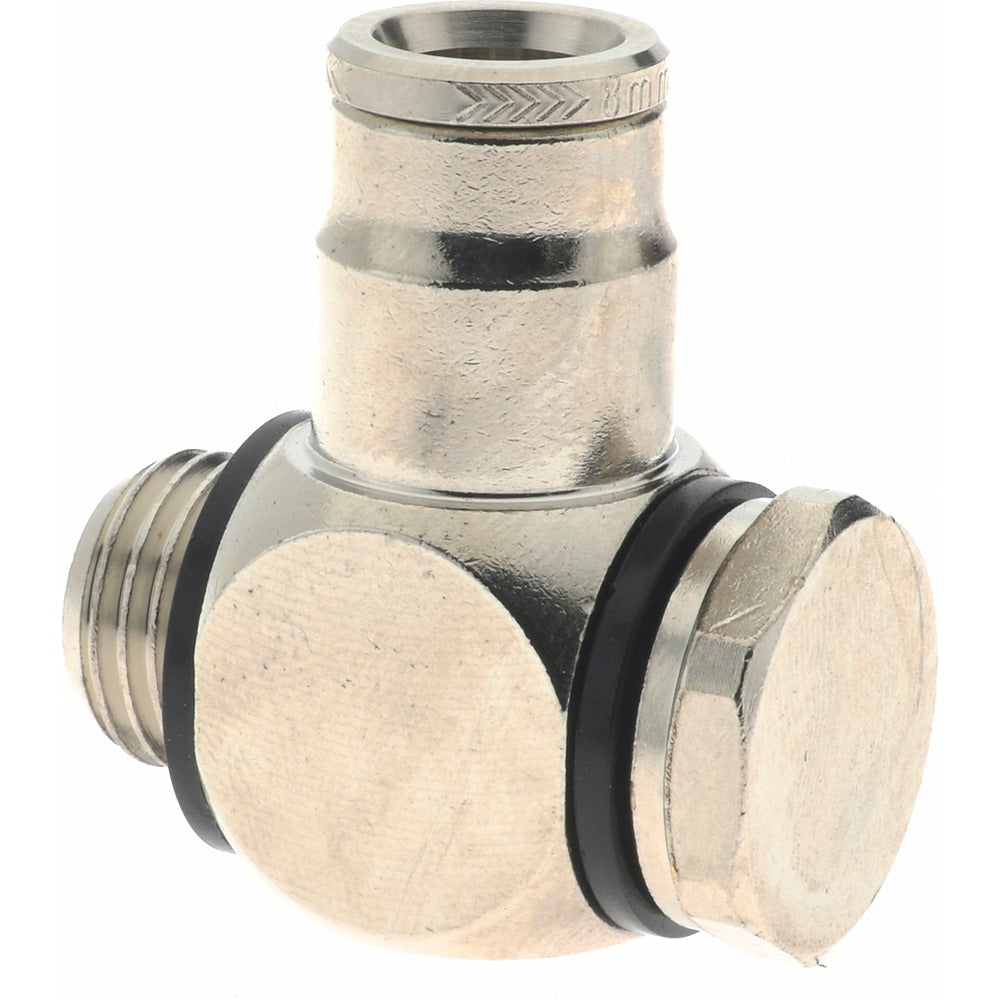

Norgren 10A510828 Elbow Banjo Tube Fitting 260 Psi Bspp

Product Description

The NORGREN 10A510828 is a push-to-connect elbow banjo tube fitting designed for pneumatic and fluid line connections in industrial and trade applications. This fitting features a tube-to-male-to-tube-to-male BSPP configuration, allowing a 90-degree change in flow direction through a banjo-style port. Constructed from nickel-plated brass, it handles a maximum working pressure of 260 psi and an operating temperature range of 0 degrees F to 175 degrees F. The 8.00 mm outside diameter tube connection and 1/4 inch BSPP male thread make it a straightforward fit for compatible pneumatic assemblies. Installed by industrial mechanics, HVAC technicians, and plumbing professionals working with push-to-connect pneumatic or fluid distribution systems.

This fitting is suited for use in compressed air lines, pneumatic control systems, and fluid distribution assemblies where a compact elbow banjo connection is required. The push-to-connect design speeds up installation and allows for tool-free tube insertion. The BSPP thread type is commonly found in European and international equipment. The nitrile O-ring provides a reliable seal across the rated temperature and pressure range, making this fitting appropriate for both dry air and compatible fluid media in light industrial or mechanical service environments.

Key Features

• Push-to-connect design allows fast, tool-free tube insertion and secure retention
• Elbow banjo configuration provides a 90-degree flow path through a banjo-style port
• Nickel-plated brass construction resists corrosion in industrial service environments
• Rated to 260 psi maximum working pressure
• Nitrile O-ring seal supports operation from 0 degrees F to 175 degrees F
• 1/4 inch BSPP male thread for compatibility with international equipment standards

Compatibility

Designed as an OEM-style push-to-connect elbow banjo fitting for pneumatic and fluid systems using 8.00 mm outside diameter tubing and 1/4 inch BSPP male threaded ports.

Installation Notes

Installation should be performed by a qualified industrial mechanic, HVAC technician, or plumbing professional. Depressurize and isolate the system completely before removing or installing any fittings. Verify that the mating BSPP thread is clean and undamaged before assembly. Do not exceed the rated working pressure of 260 psi or the maximum temperature of 175 degrees F during service.
