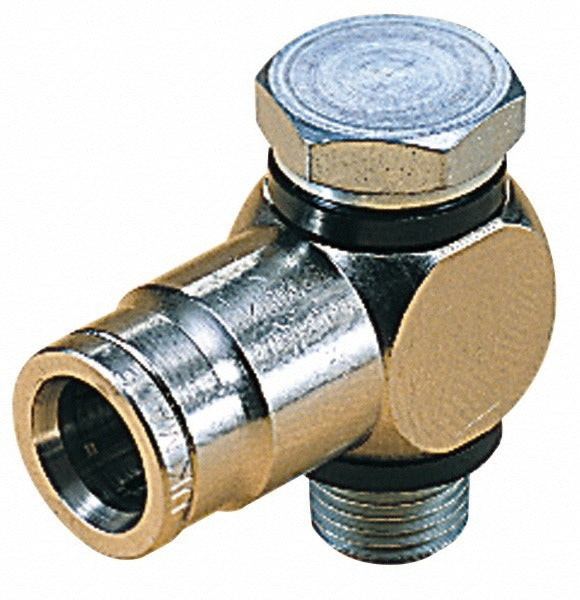

Norgren 10A510518 Elbow Banjo Tube Fitting 1/8 Bspp

Product Description

The NORGREN 10A510518 is a push-to-connect elbow banjo assembly tube fitting designed for pneumatic and fluid distribution systems requiring a compact, multi-port connection at a right angle. Built from nickel-plated brass, this fitting handles a maximum working pressure of 260 psi and operates across a temperature range of 0 degrees F to 175 degrees F. The nitrile O-ring provides a reliable seal in air and compatible fluid applications. It accepts a tube outside diameter of 5.00 mm and connects via a 1/8 inch BSPP male thread. This type of fitting is installed by industrial technicians, HVAC mechanics, and pneumatic system specialists building or servicing compressed-air or low-pressure fluid circuits.

This fitting suits residential and light commercial pneumatic control circuits, fluid transfer assemblies, and instrumentation plumbing where an elbow banjo configuration is required to route tubing at an angle through a bolted or threaded port. The push-to-connect design allows fast tube insertion without additional compression tools. It is appropriate for applications where the working medium is compatible with nickel-plated brass body construction and nitrile sealing material, such as compressed air, water, and many common hydraulic fluids within the rated pressure and temperature limits.

Key Features

• Push-to-connect tube end for tool-free, quick tube insertion
• BSPP 1/8 inch male thread for standard British parallel pipe thread connections
• Nickel-plated brass body for corrosion resistance in pneumatic and fluid service
• Nitrile O-ring seal rated for use across 0 degrees F to 175 degrees F
• Rated to 260 psi maximum working pressure
• Compact elbow banjo geometry for tight-space routing applications

Compatibility

Designed as an OEM-style push-to-connect elbow banjo replacement or new-installation fitting for pneumatic and fluid systems using 5.00 mm outside diameter tubing and 1/8 inch BSPP male threaded ports.

Installation Notes

This fitting is installed by qualified pneumatic or plumbing technicians. Before installation or removal, depressurize the system completely and isolate the circuit from all pressure sources. Ensure the mating BSPP port thread is clean and undamaged before engagement. Verify that the tubing outside diameter matches the fitting specification before seating the push-to-connect end to ensure a leak-free seal.
