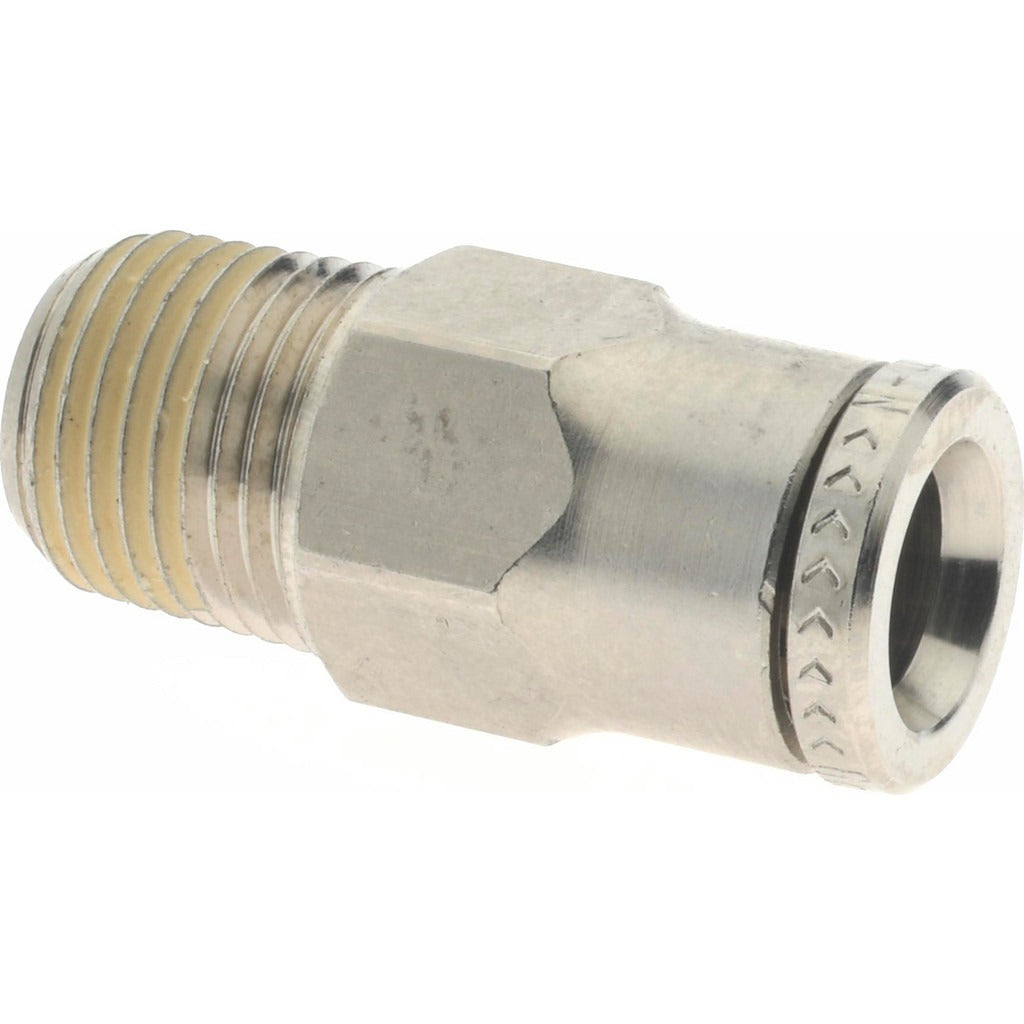

Norgren 104250610 Pneumatic Adapter 10-32 Unf

Product Description

The NORGREN 104250610 is a push-to-connect pneumatic male adapter designed for tube-to-male UNF connections in compressed air and pneumatic control systems. Constructed from nickel-plated brass with a nitrile O-ring, this fitting accepts 6 mm outside diameter tubing and provides a secure, tool-free tube insertion on each tube end. The 10-32 UNF male thread mates directly to manifolds, valves, and instrumentation ports carrying that thread specification. Rated to 260 psi working pressure, it operates reliably across a temperature range of 0 to 175 degrees F. Licensed HVAC technicians, pneumatic system integrators, and industrial maintenance professionals install this type of fitting during system assembly or service.

This adapter fits pneumatic plumbing applications where 6 mm OD tubing must transition to a 10-32 UNF male threaded port. Typical install scenarios include connecting pilot air lines to solenoid valves, instrument air circuits, and pneumatic actuator supply lines. The push-to-connect design speeds up field assembly and reduces the need for ferrules or compression nuts. The compact overall length of approximately 24 mm helps in tight panel or manifold layouts where fitting stack height matters.

Key Features

• Push-to-connect tube ends accept 6 mm OD tubing without ferrules or additional tooling
• 10-32 UNF male thread for direct connection to valves, manifolds, and instrumentation ports
• Nickel-plated brass body resists corrosion in typical pneumatic service environments
• Nitrile O-ring sealing suitable for standard compressed air and inert gas service
• 260 psi maximum working pressure rated
• Rated temperature range of 0 to 175 degrees F covers most indoor pneumatic applications

Compatibility

Designed as an OEM-style pneumatic push-to-connect adapter for systems using 6 mm OD tubing and 10-32 UNF male threaded ports in compressed air and pneumatic control circuits.

Installation Notes

Installation is performed by qualified pneumatic technicians or maintenance professionals familiar with compressed air system assembly. Depressurize and lock out the pneumatic circuit fully before removing or inserting any fitting. Ensure the tubing end is cut cleanly and squarely and is free of burrs before inserting into the push-to-connect port to maintain a leak-free seal. Verify thread engagement with the mating port is complete and that the fitting is not overtightened into plastic or soft-alloy valve bodies.
