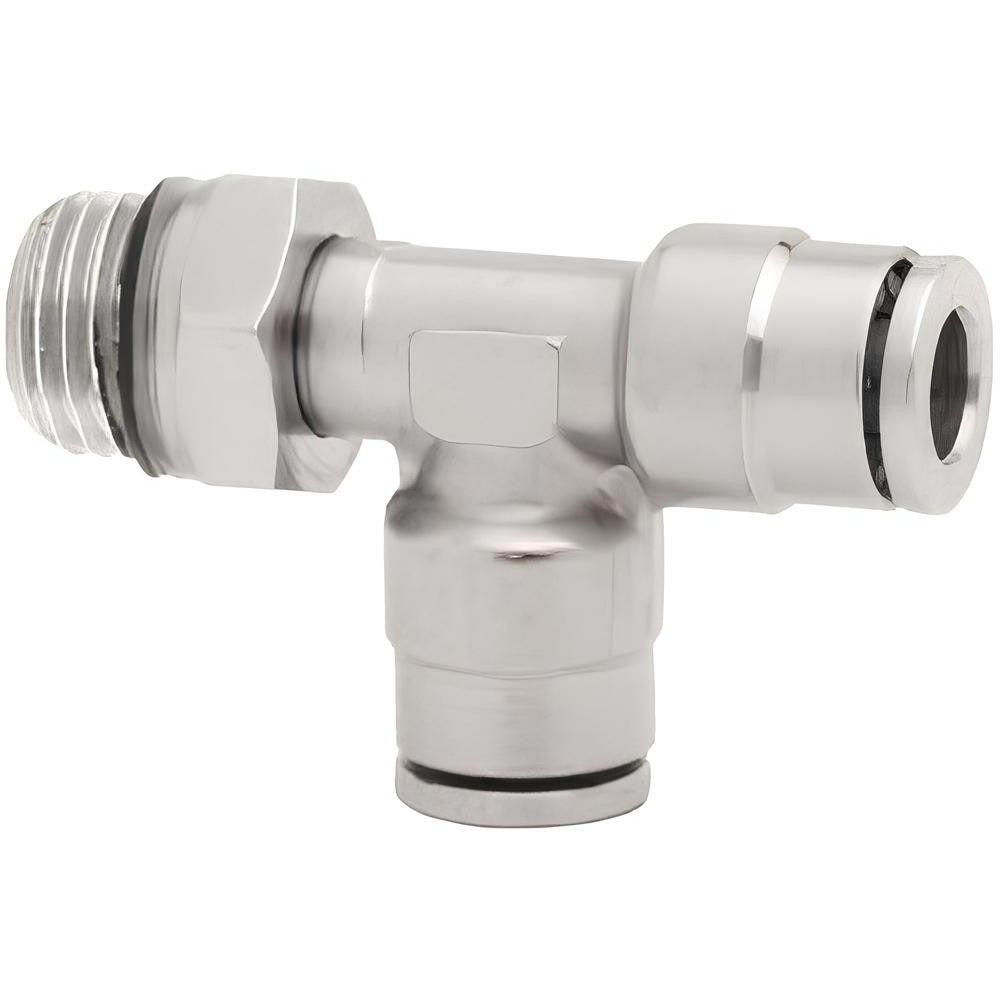

Norgren 102680618 Swivel Tee Adapter 1/8 Bspp 260 Psi

Product Description

The NORGREN 102680618 is a push-to-connect swivel tee adapter designed for compressed air and general-purpose pneumatic plumbing. It features a tube-to-male-to-tube-to-male BSPP connection configuration, allowing a technician to branch a 6 mm outside-diameter tube line while maintaining a swivel male BSPP thread fitting at the center port. The body is nickel-plated brass for corrosion resistance. The adapter is rated to 260 psi maximum working pressure and handles temperatures from 0 degrees F to 175 degrees F. It is installed by HVAC technicians, pneumatic system technicians, and industrial plumbers working with small-bore tubing systems.

This fitting is suited for general-purpose pneumatic and fluid-transfer applications where a tee branch is needed without cutting or re-terminating existing tubing runs. The push-to-connect mechanism on both tube ports allows fast insertion of 6 mm OD tubing. The swivel feature on the male BSPP thread port reduces torque stress on mating components during assembly. It is appropriate for light commercial and industrial environments operating within the rated pressure and temperature range.

Key Features

• Push-to-connect tube ports accept 6 mm OD tubing without tools or ferrules
• Swivel male BSPP thread port reduces assembly torque on mating fittings
• 260 psi maximum working pressure rating
• Operating temperature range: 0 degrees F to 175 degrees F
• Nickel-plated brass body resists corrosion in general-purpose service
• Nitrile O-ring seals provide reliable performance with air and common pneumatic media

Compatibility

Designed for general-purpose pneumatic and fluid-transfer systems using 6 mm OD tubing with 1/8 inch BSPP male threaded ports.

Installation Notes

Depressurize and isolate the pneumatic or fluid line completely before removing or installing any fittings. Thread the male BSPP port into the mating female port by hand first, then snug with a wrench, taking care not to cross-thread or overtighten. Insert 6 mm OD tubing into each push-to-connect port until it seats fully; confirm retention by pulling back lightly on the tube. Inspect for leaks at both tube ports and the threaded connection before returning the system to service.
