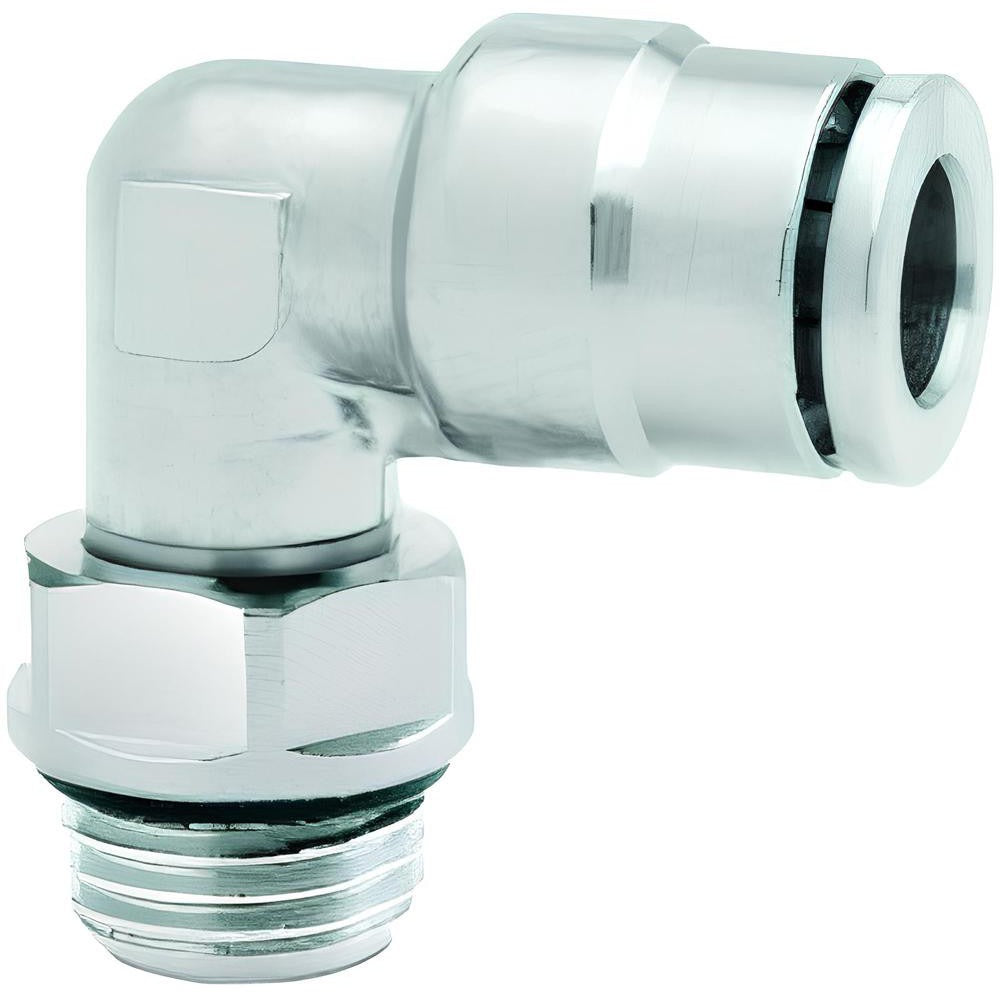

Norgren 102471248 90 Swivel Elbow Tube Fitting Bspp

Product Description

The NORGREN 102471248 is a push-to-connect 90-degree swivel elbow tube fitting designed for pneumatic and fluid line connections in general-purpose plumbing and instrumentation systems. Constructed from nickel-plated brass, it transitions between a push-to-connect tube end and a male BSPP threaded end, allowing a secure 90-degree change of direction with the added benefit of swivel articulation during installation and routing. The fitting is rated to 260 psi maximum working pressure and operates across a temperature range of 0 to 175 degrees F. Tube outside diameter is 12.00 mm. The o-ring seal is nitrile, providing reliable performance in general-purpose service environments. Licensed plumbers, pipefitters, and pneumatic system technicians are the typical installers.

This fitting is suited for residential and light commercial pneumatic or fluid distribution systems where a compact 90-degree directional change is needed. The swivel feature simplifies alignment to existing pipe or tubing runs without requiring the connected tubing to rotate. General-purpose compatibility makes it appropriate for air lines, water service, and similar low-to-medium pressure applications within the rated working pressure and temperature limits.

Key Features

• Push-to-connect tube entry for fast, tool-free tube insertion
• 90-degree swivel elbow allows directional routing flexibility without rotating connected tubing
• Male BSPP threaded outlet for compatibility with BSPP-threaded ports and fittings
• Nickel-plated brass construction resists corrosion in general-purpose service
• Nitrile o-ring seal provides secure, leak-resistant connection
• Rated to 260 psi maximum working pressure

Compatibility

Designed for general-purpose pneumatic and fluid systems requiring a push-to-connect tube connection paired with a male BSPP threaded port, with a tube outside diameter of 12.00 mm.

Installation Notes

Installation should be performed by a qualified plumber, pipefitter, or pneumatic system technician. Depressurize and isolate the system completely before removing any existing fittings or installing this component. Verify that mating BSPP threads are clean and undamaged before assembly, and confirm tube outside diameter matches the fitting specification before insertion. Do not exceed the rated working pressure or temperature limits.
