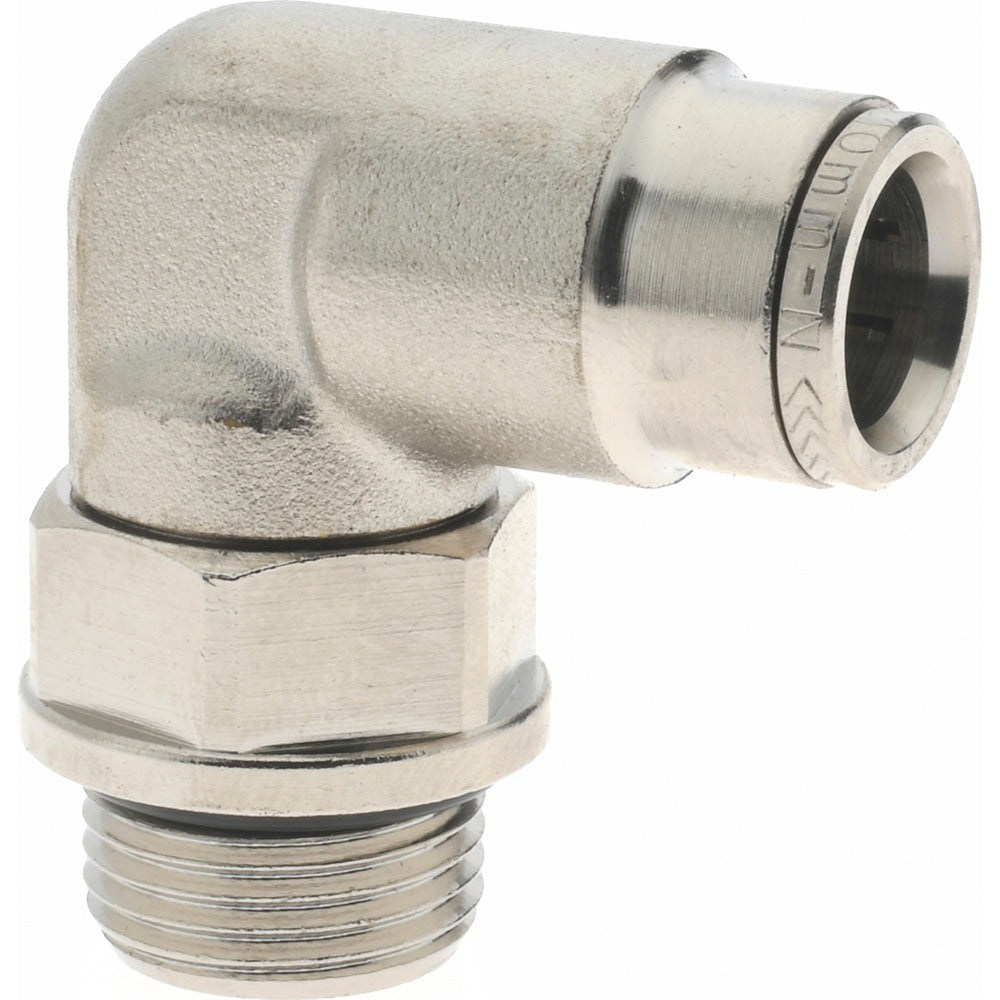

Norgren 102471038 90 Swivel Elbow Tube Fitting Bspp

Product Description

The NORGREN 102471038 is a 90-degree swivel elbow push-to-connect tube fitting designed for pneumatic and fluid plumbing systems. It features a tube-to-male BSPP connection on each end, allowing the tube port to swivel after assembly for easier routing and alignment. The body is nickel-plated brass, rated to 260 psi maximum working pressure. Operating temperatures range from 0 degrees F to 175 degrees F, and the O-ring is nitrile. Licensed plumbers, pipefitters, and pneumatic system technicians typically install this fitting in compressed air, pneumatic control, and general fluid lines.

This fitting suits residential and commercial pneumatic plumbing and fluid distribution applications where a 90-degree directional change is needed and post-installation tube rotation is an advantage. The 3/8 inch BSPP male thread and 10 mm outside diameter tube port make it a common choice in instrumentation, compressed air distribution panels, and general-purpose pneumatic control circuits. The swivel design reduces stress on tubing during installation and simplifies routing in tight enclosures.

Key Features

• 90-degree swivel elbow allows tube angle adjustment after assembly for clean routing
• Push-to-connect tube port accepts 10 mm outside diameter tubing without tools
• Nickel-plated brass construction provides corrosion resistance in typical industrial environments
• Rated to 260 psi maximum working pressure for demanding pneumatic service
• Nitrile O-ring sealing is compatible with air, water, and many common hydraulic fluids
• BSPP thread type for use in metric and British-standard plumbing systems

Compatibility

Designed as an OEM-style replacement or new-installation fitting for pneumatic and fluid systems requiring a 3/8 inch BSPP male thread connection and a 10 mm outside diameter push-to-connect tube port.

Installation Notes

Installation is typically performed by a licensed plumber, pipefitter, or pneumatic systems technician. Depressurize and isolate the system completely before removing or installing any fittings. BSPP threads are parallel and rely on an O-ring or bonded seal for leak-free joints; verify the mating port face is clean and undamaged before assembly. Follow applicable industry codes and the system manufacturer guidelines for thread engagement and tube insertion depth.
