Norgren 102471028 90 Swivel Elbow Adapter 1/4 Bspp Brass

Product Description

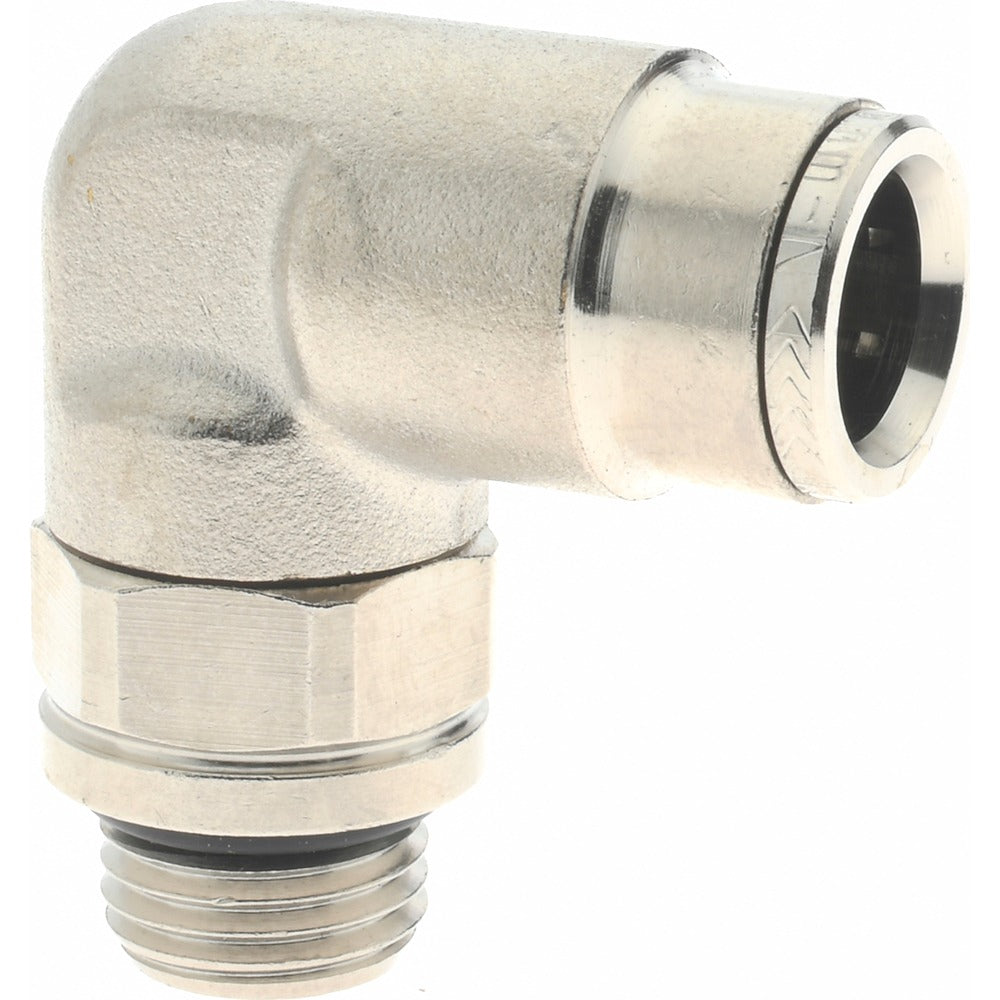

The NORGREN 102471028 is a 90-degree swivel elbow adapter designed for push-to-connect pneumatic and fluid tubing systems. It provides a right-angle connection between a 10 mm outside diameter tube and a male BSPP threaded port, with a swivel feature that allows the tube side to rotate freely for easier routing and alignment during installation. Constructed from nickel-plated brass with a nitrile O-ring seal, this fitting handles working pressures up to 260 psi and operates across a temperature range of 0 to 175 degrees F. It is sized for 1/4 inch BSPP male thread.

This fitting is suited for use in compressed air distribution, pneumatic control circuits, and light fluid handling systems found in industrial machinery, automation equipment, and HVAC controls. The push-to-connect tube end accepts 10 mm OD tubing, making it a practical choice for technicians building or servicing pneumatic panel assemblies, valve manifolds, or instrumentation lines where a swept 90-degree turn is required without sacrificing inline swivel adjustment. Installation does not require soldering or thread tape on the tube side.

Key Features

• 90-degree swivel elbow configuration allows tube orientation adjustment after assembly
• Push-to-connect tube end accepts 10 mm OD tubing without additional tools
• 1/4 inch BSPP male thread for direct port connection
• Nickel-plated brass body resists corrosion in compressed air and light fluid service
• Nitrile O-ring seal rated for 0 to 175 degrees F service temperature
• Rated to 260 psi maximum working pressure

Compatibility

Designed for use with 10 mm outside diameter push-to-connect pneumatic tubing in systems with 1/4 inch BSPP male threaded ports, typical of European-standard pneumatic valves, actuators, and manifold blocks.

Installation Notes

Installation should be performed by a qualified pneumatic or mechanical technician. De-pressurize and lock out the pneumatic or fluid system completely before removing any existing fittings or installing this adapter. Ensure the male BSPP thread is clean and free of debris before engagement, and apply appropriate thread sealant to the male threads per system requirements. Verify tube insertion is fully seated in the push-to-connect end before re-pressurizing the system.
