Norgren 102470828 90 Swivel Elbow Adapter Bspp Tube Fitting

Product Description

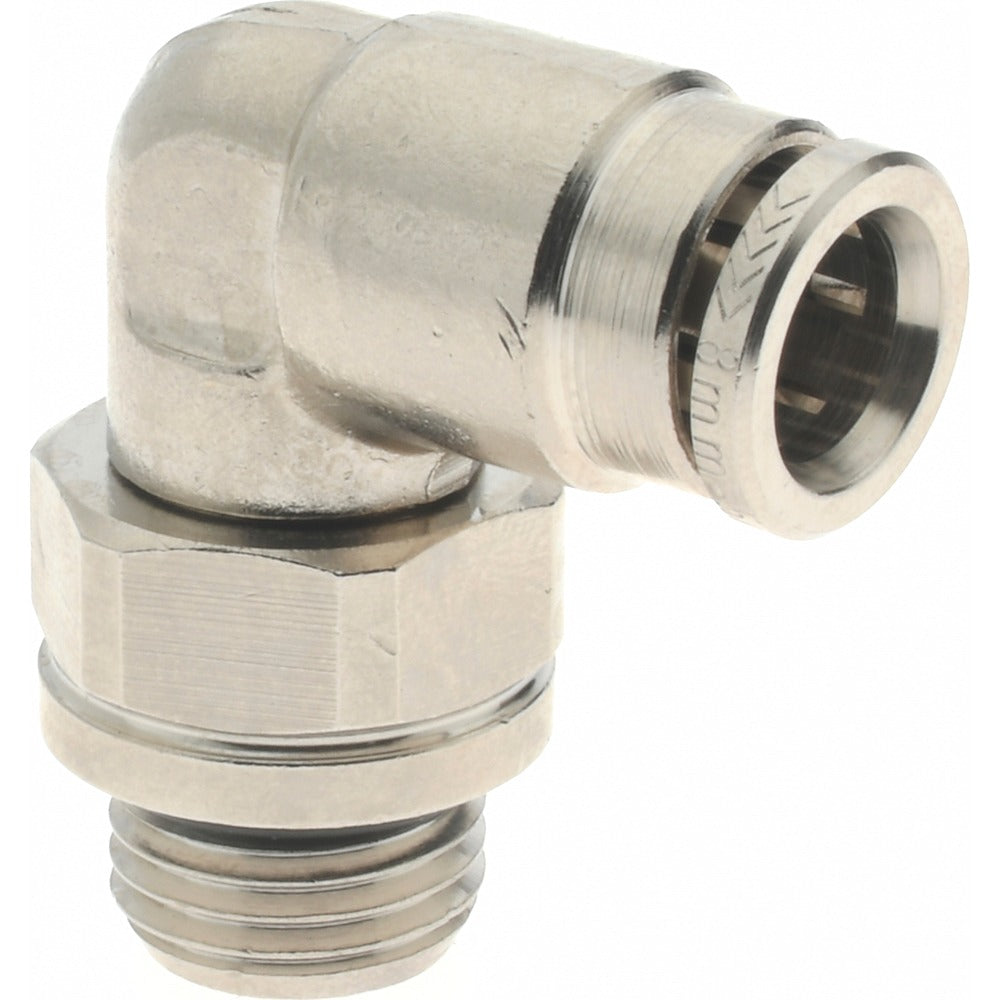

The NORGREN 102470828 is a push-to-connect 90-degree swivel elbow adapter designed for tube-to-male BSPP pneumatic and fluid line connections. Constructed from nickel-plated brass, this fitting accepts an 8 mm outside diameter tube on the push-to-connect end and terminates in a 1/4 inch male BSPP thread on the other. It is rated to 260 psi maximum working pressure and handles operating temperatures from 0 degrees F to 175 degrees F. The swivel design allows the threaded end to rotate during installation, reducing the need to manipulate attached tubing or adjacent components. Licensed plumbers, pipefitters, and pneumatic system technicians are the typical installers.

This fitting is suited for use in compressed air, pneumatic control, and low-pressure fluid distribution systems where a 90-degree direction change is required. It is commonly installed in industrial automation panels, fluid power circuits, and HVAC pneumatic control systems where space is limited and tubing must change direction at a port. The push-to-connect end allows fast, tool-free tube insertion while the swivel BSPP male thread simplifies alignment to a threaded port or manifold.

Key Features

• Push-to-connect end accepts 8 mm OD tube for tool-free installation and removal
• 90-degree swivel elbow allows thread-end rotation for easy port alignment without twisting tubing
• Nickel-plated brass construction provides corrosion resistance in wet or humid environments
• Rated to 260 psi maximum working pressure
• Nitrile O-ring seal suitable for air and compatible fluid media
• Wide temperature range: 0 degrees F to 175 degrees F

Compatibility

Designed for use with 8 mm outside diameter tubing and 1/4 inch male BSPP threaded ports in pneumatic and fluid power systems. Compatible with BSPP-threaded valves, manifolds, and fittings following ISO 228 port standards.

Installation Notes

Shut off and depressurize the system completely before removing or installing any fittings. Hand-tighten the BSPP thread first, then use a wrench to achieve a leak-free seat without overtightening the brass thread. Insert tubing into the push-to-connect end until it bottoms out; to release, depress the collet ring and withdraw the tube. Verify all connections with a pressure test before returning the system to service.
