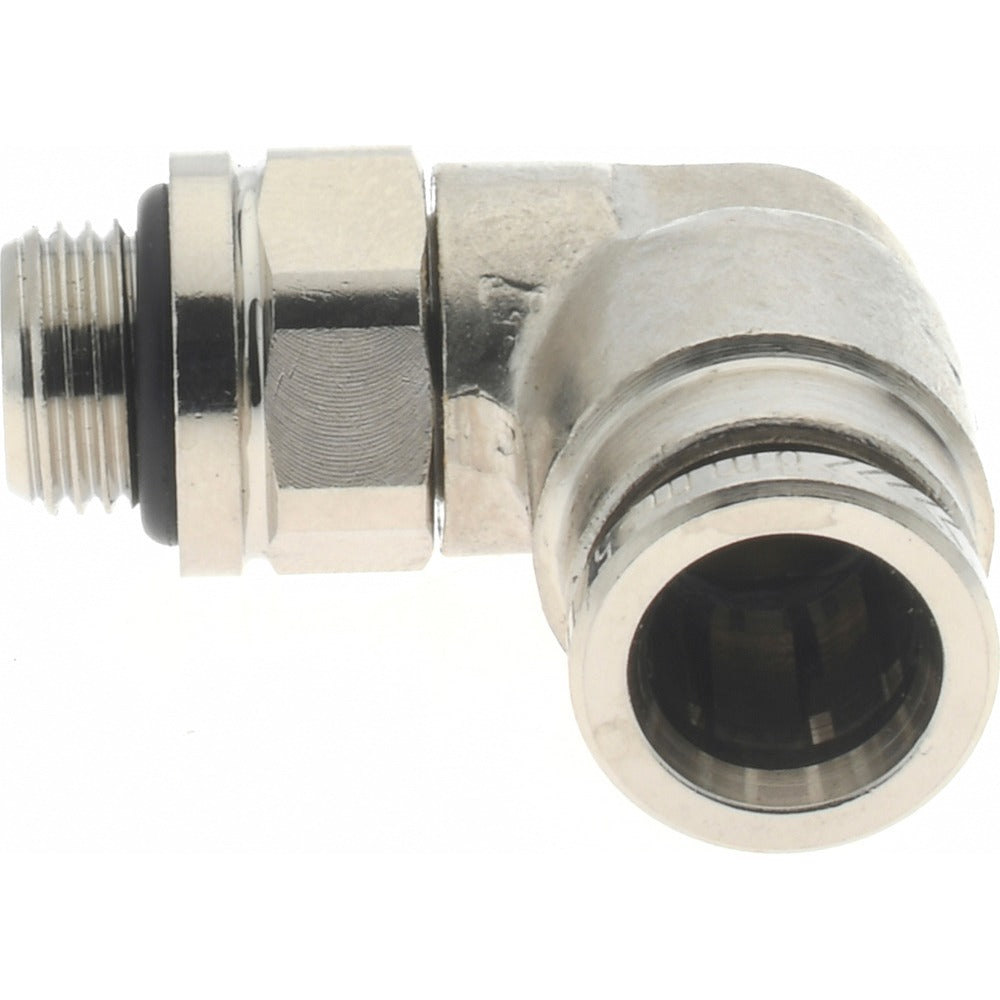

Norgren 102470818 90 Swivel Elbow Push-to-connect Bspp

Product Description

The NORGREN 102470818 is a 90-degree swivel elbow adapter designed for push-to-connect pneumatic and fluid tubing systems. It transitions an 8 mm outside diameter tube to a male BSPP threaded port at a right angle, with a swivel design that simplifies alignment during installation. Constructed from nickel-plated brass with a nitrile O-ring seal, this fitting is rated to 260 psi maximum working pressure and handles temperatures from 0 degrees F to 175 degrees F. It is typically installed by pneumatic system technicians, pipefitters, and industrial maintenance professionals working on compressed air or fluid control lines.

This fitting is suited for use in compressed air distribution, pneumatic control systems, and fluid transfer applications where a 90-degree directional change is required between a push-to-connect tube run and a male BSPP threaded port. The 1/8 inch BSPP thread size and 8 mm tube OD make it a common selection for instrument air lines, pneumatic actuators, and compact manifold connections in both commercial and light industrial environments. The swivel elbow body allows rotational adjustment after hand-tightening, which reduces stress on tubing and simplifies routing in tight spaces.

Key Features

• 90-degree swivel elbow body allows post-installation rotational adjustment for easier tube routing
• Push-to-connect tube end accepts 8 mm OD tubing without additional tools
• Male BSPP thread connection for direct port mounting on BSPP-tapped components
• Nickel-plated brass construction resists corrosion in compressed air and mild fluid service
• Nitrile O-ring seal provides reliable leak resistance across the rated temperature range
• Rated to 260 psi maximum working pressure for standard pneumatic system use

Compatibility

Designed as an OEM-style push-to-connect fitting for pneumatic and fluid control systems using 8 mm OD tubing and 1/8 inch male BSPP threaded ports.

Installation Notes

Installation should be performed by a qualified pipefitter or pneumatic systems technician. Depressurize and isolate the system completely before removing or installing any fittings. Ensure the BSPP threads are clean and apply appropriate thread sealant compatible with the system fluid before tightening. Verify tube ends are cut square and deburred before inserting into the push-to-connect end to ensure a proper seal.
