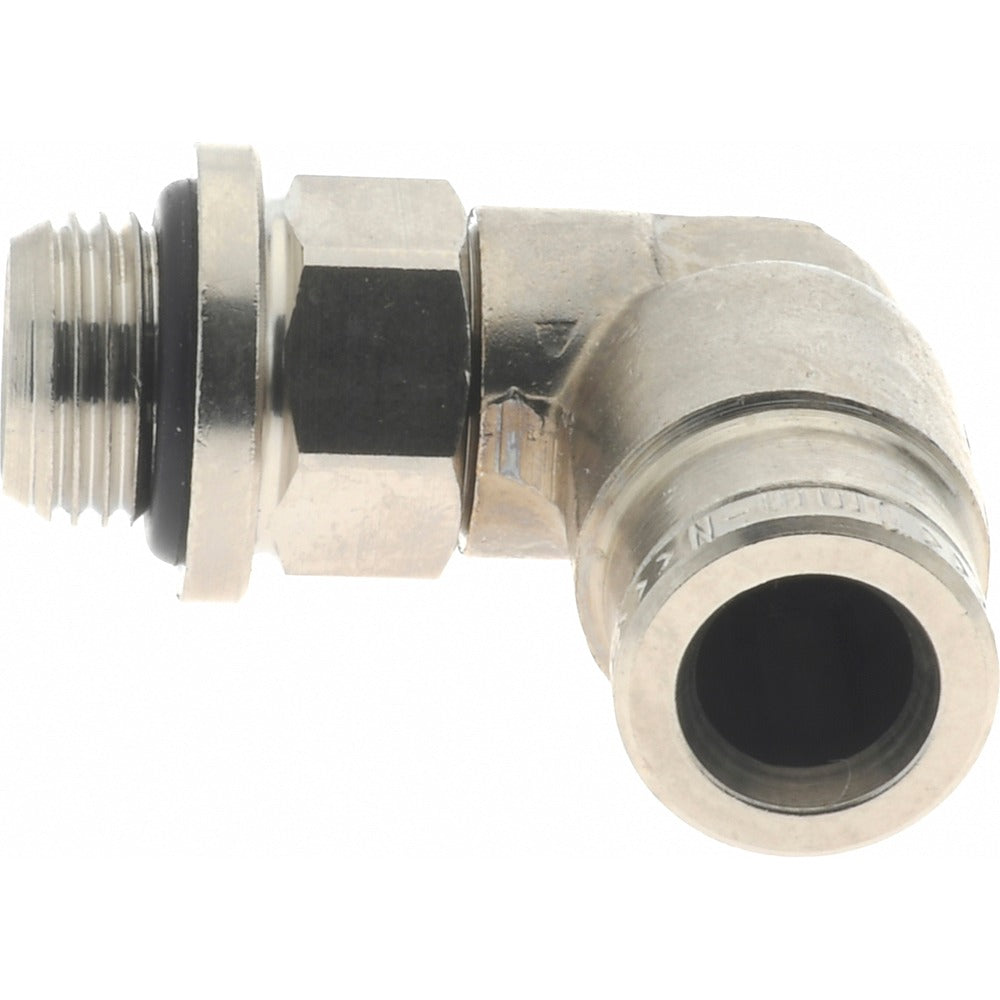

Norgren 102470618 90 Swivel Elbow Ptc Fitting 1/8 Bspp

Product Description

The NORGREN 102470618 is a push-to-connect 90-degree swivel elbow adapter designed for tube-to-male BSPP connections in compressed air and pneumatic fluid systems. Constructed from nickel-plated brass with a nitrile O-ring, it handles working pressures up to 260 psi and temperatures ranging from 0 to 175 degrees F. The swivel elbow design allows for angular adjustment after installation, simplifying tube routing in tight spaces. It accepts 6 mm outside diameter tubing and threads into a 1/8 inch BSPP male port. Pneumatic technicians and maintenance trades install this fitting wherever a 90-degree change of direction is needed without fixed-angle constraints.

This fitting is suited for use in industrial pneumatic circuits, compressed air distribution lines, and fluid conveyance systems that require reliable push-to-connect assembly. The 90-degree swivel configuration is especially useful in panel-mount and manifold applications where tube routing must be adjusted after the fitting body is threaded in. It is sold individually and is compatible with 6 mm OD tubing in BSPP-ported equipment common across industrial automation and process control installations.

Key Features

• Push-to-connect design for tool-free tube insertion and reliable seal
• 90-degree swivel elbow allows post-installation tube angle adjustment
• Nickel-plated brass body resists corrosion in pneumatic service environments
• Nitrile O-ring seal rated from 0 to 175 degrees F operating temperature
• Rated to 260 psi maximum working pressure
• 1/8 inch BSPP male thread for direct port connection

Compatibility

Designed for use with 6 mm outside diameter tubing in systems equipped with 1/8 inch BSPP-ported components, including pneumatic valves, actuators, and manifolds that accept push-to-connect tube fittings.

Installation Notes

Installation is performed by qualified pneumatic or mechanical technicians. Always depressurize and bleed down the system fully before removing or installing fittings. Thread the BSPP male end into the port by hand first, then tighten with an appropriate wrench to avoid cross-threading or over-torquing the brass body. Insert tubing straight and fully into the push-to-connect collet until it seats, and verify a positive lock before returning the system to pressure.
