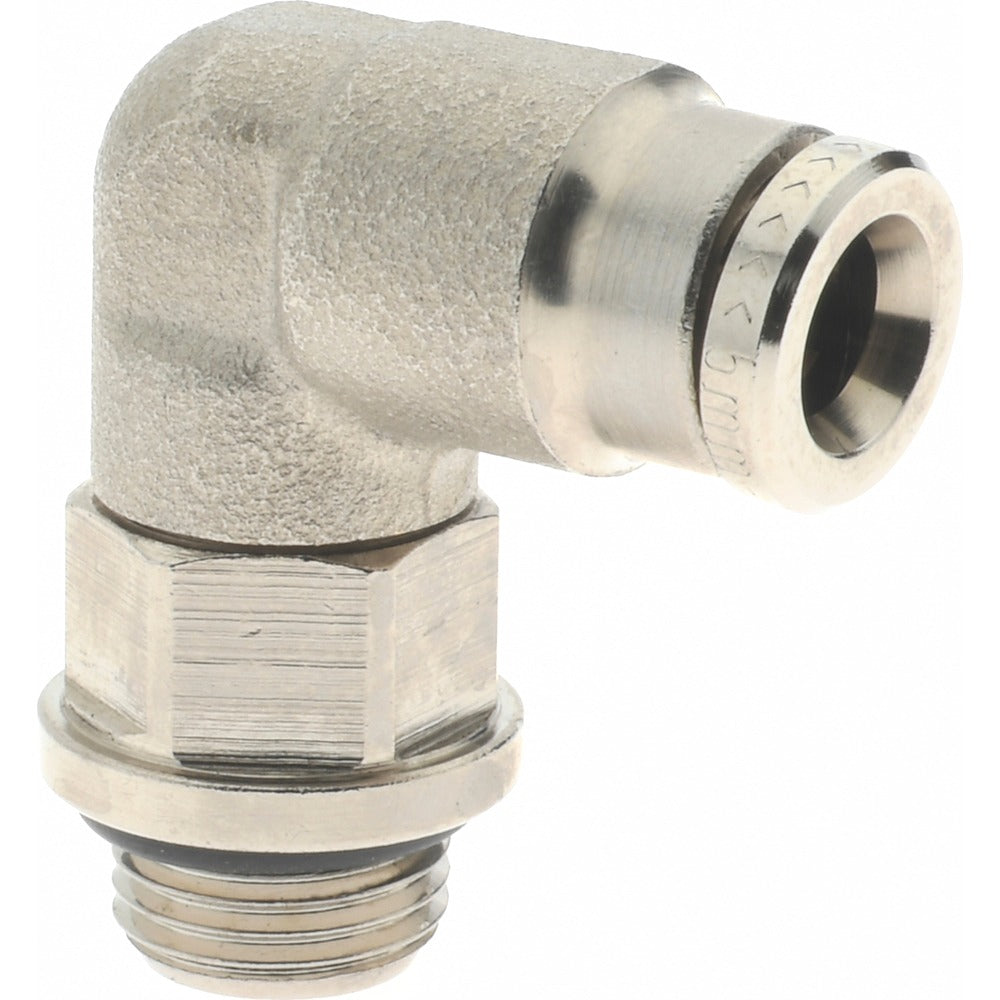

Norgren 102470518 90 Swivel Elbow Adapter Bspp 1/8 in

Product Description

The NORGREN 102470518 is a 90-degree swivel elbow adapter designed for push-to-connect tube-to-male BSPP pneumatic and fluid-line applications. Constructed from nickel-plated brass with a nitrile O-ring, this fitting provides a reliable, leak-resistant connection between tubing and male BSPP-threaded ports. It handles a maximum working pressure of 260 psi across a temperature range of 0 to 175 degrees F. The swivel design allows the tube entry angle to be positioned after installation, simplifying routing in tight enclosures or manifold assemblies. Plumbers, pipefitters, and pneumatic system technicians install this type of fitting in compressed air, pneumatic control, and fluid-distribution lines.

This adapter is suited for light industrial, commercial HVAC control, and pneumatic automation applications where a 90-degree directional change is required at a BSPP-threaded port. The push-to-connect tube end accepts 5 mm outside diameter tubing, making it a common choice in metric pneumatic circuits. It is appropriate for use in panel assemblies, valve manifolds, and instrument tubing runs where space constraints make a straight fitting impractical.

Key Features

• 90-degree swivel elbow allows tube routing angle to be adjusted after port engagement
• Push-to-connect tube end accepts 5 mm outside diameter tubing for tool-free tube insertion
• Maximum working pressure of 260 psi suits most compressed-air and pneumatic control circuits
• Nickel-plated brass body resists corrosion in industrial environments
• Nitrile O-ring provides a secure seal across a wide service temperature range
• 1/8 inch BSPP male thread for direct connection to standard metric-threaded ports

Compatibility

Designed as an OEM-style push-to-connect fitting for pneumatic and fluid-line systems using 5 mm outside diameter tubing and 1/8 inch BSPP male-threaded ports.

Installation Notes

A licensed pipefitter or qualified pneumatic systems technician should install this fitting. Depressurize and lock out the system before removing any existing fittings or making new connections. Ensure the BSPP male thread is clean and undamaged before engagement; thread sealant compatible with BSPP parallel threads is recommended per site requirements. Verify that the tubing outside diameter is exactly 5 mm and that the tube end is cut cleanly and squarely to ensure the push-to-connect collet seals properly.
