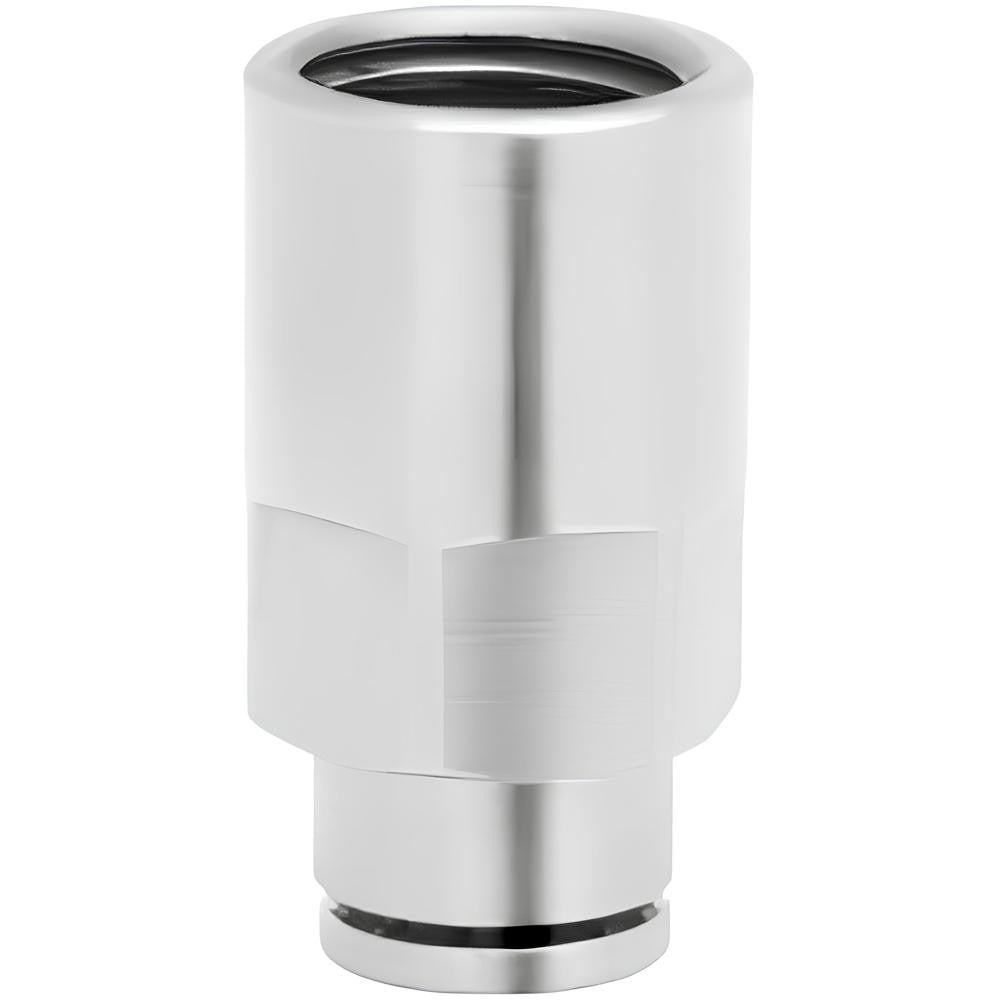

Norgren 102261038 Female Adapter Straight Fitting Bspp

Product Description

The NORGREN 102261038 is a push-to-connect female adapter tube fitting with a straight configuration and BSPP thread type. Constructed from nickel-plated brass, it accepts a 10mm outside-diameter tube on each end and connects to a female BSPP threaded port. Rated to 260 psi maximum working pressure, it is suited for compressed air and general-purpose pneumatic plumbing lines. The nitrile O-ring provides a reliable seal across a working temperature range of 0 degrees F to 175 degrees F. Licensed plumbers, pipefitters, and pneumatic system technicians typically install this fitting in industrial and commercial service environments.

This fitting is intended for general-purpose pneumatic and fluid-transfer applications where a push-to-connect tube-to-female BSPP interface is required. The straight configuration makes it appropriate for inline connections where tube routing does not require a change in direction. Its compact 33mm overall length suits panel-mount manifolds, valve banks, and equipment service lines that use BSPP ported components.

Key Features

• Push-to-connect design for fast, tool-free tube insertion and secure retention
• Nickel-plated brass body resists corrosion in general-purpose service
• Rated to 260 psi maximum working pressure
• BSPP thread type for compatibility with British Standard Parallel Pipe ported components
• Nitrile O-ring seal supports a working range of 0 degrees F to 175 degrees F
• Compact 33mm overall length for space-constrained installations

Compatibility

Designed as an OEM-style push-to-connect fitting for general-purpose pneumatic and fluid-transfer systems using 10mm outside-diameter tubing and BSPP threaded ports.

Installation Notes

Depressurize and lock out the system before removing or installing any fitting. Cut tubing squarely and deburr the end before inserting into the push-to-connect collet to ensure a full, leak-free seat. BSPP threads are parallel and rely on the O-ring face seal for pressure integrity, so do not over-torque the threaded end. Verify the completed assembly holds pressure before returning the system to service.
