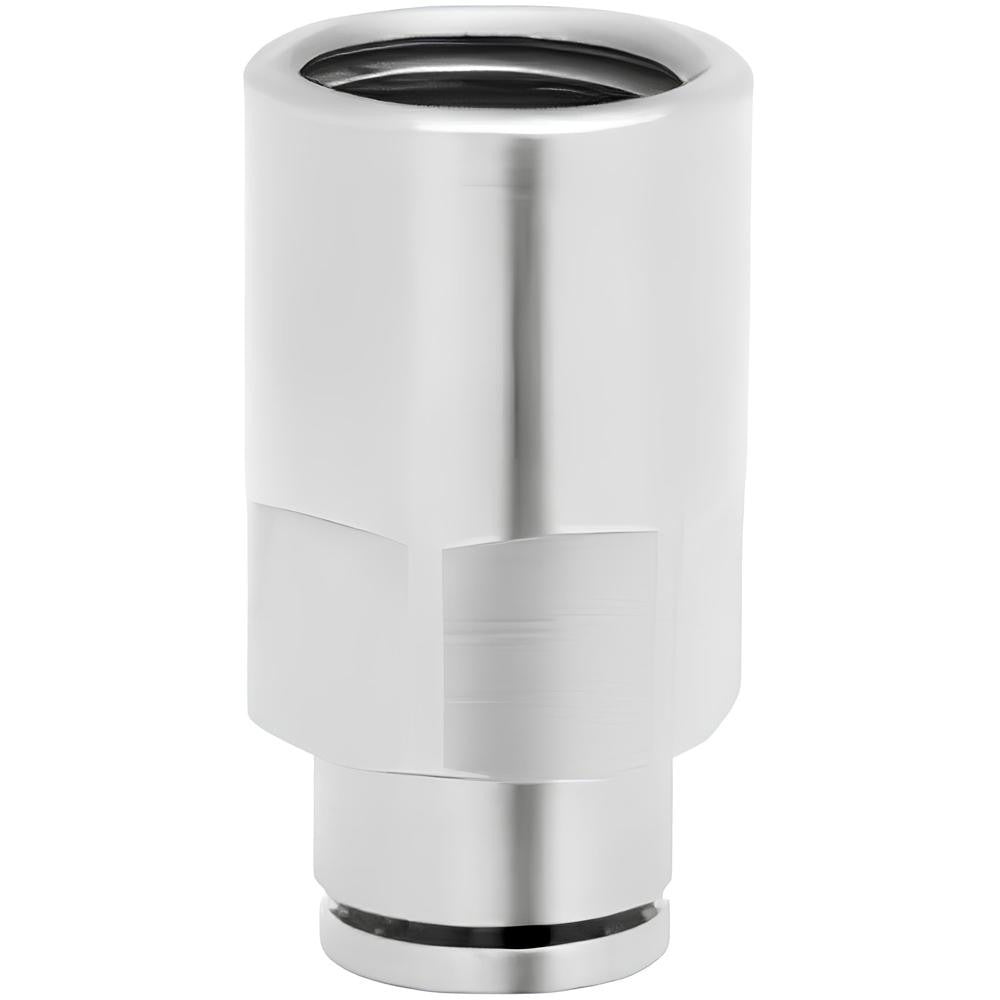

Norgren 102261028 Push-to-connect Female Adapter Bspp

Product Description

The NORGREN 102261028 is a straight female adapter push-to-connect tube fitting designed for efficient, tool-free tube connections in general-purpose pneumatic and fluid systems. Constructed from nickel-plated brass, this fitting accommodates 10 mm outside diameter tubing on each tube port and features a 1/4 inch BSPP female thread on the center connection. It carries a maximum working pressure of 260 psi and is rated for service from 0 degrees F to 175 degrees F. The nitrile o-ring ensures a reliable seal across a range of media compatible with NBR elastomers. Plumbers, pipefitters, and pneumatic system technicians install this type of fitting in instrumentation, light industrial, and process control plumbing applications.

This fitting is suited for residential and light commercial applications where BSPP-threaded female ports are required alongside push-to-connect tube terminations. Typical installations include compressed air distribution lines, pneumatic control circuits, and general-purpose fluid transfer systems. The straight geometry makes it a direct inline adapter between a threaded female port and push-to-connect tubing runs on both ends. It is particularly useful when transitioning between metric tubing and BSPP-threaded components in mixed-standard installations.

Key Features

• Push-to-connect ends accept 10 mm OD tubing for fast, tool-free connections
• 1/4 inch BSPP female thread for compatibility with British Standard Parallel Pipe fittings
• Nickel-plated brass construction resists corrosion in general-purpose service environments
• Nitrile o-ring provides a secure seal suitable for air and a broad range of compatible fluids
• Rated to 260 psi maximum working pressure
• Operating temperature range of 0 degrees F to 175 degrees F covers typical industrial and HVAC environments

Compatibility

Designed for general-purpose pneumatic and fluid systems requiring a straight inline adapter between 10 mm OD push-to-connect tubing and a 1/4 inch BSPP female-threaded port. Consult system documentation to confirm thread standard and tubing OD before installation.

Installation Notes

Installation is performed by qualified pipefitters or pneumatic system technicians following applicable plumbing and instrumentation codes. Depressurize and isolate the system completely before removing or installing any fitting. Insert tubing fully into the push-to-connect port until it seats against the collet stop, and confirm the collet locks before returning the system to service. Do not exceed the rated working pressure or temperature limits stated for this fitting.
