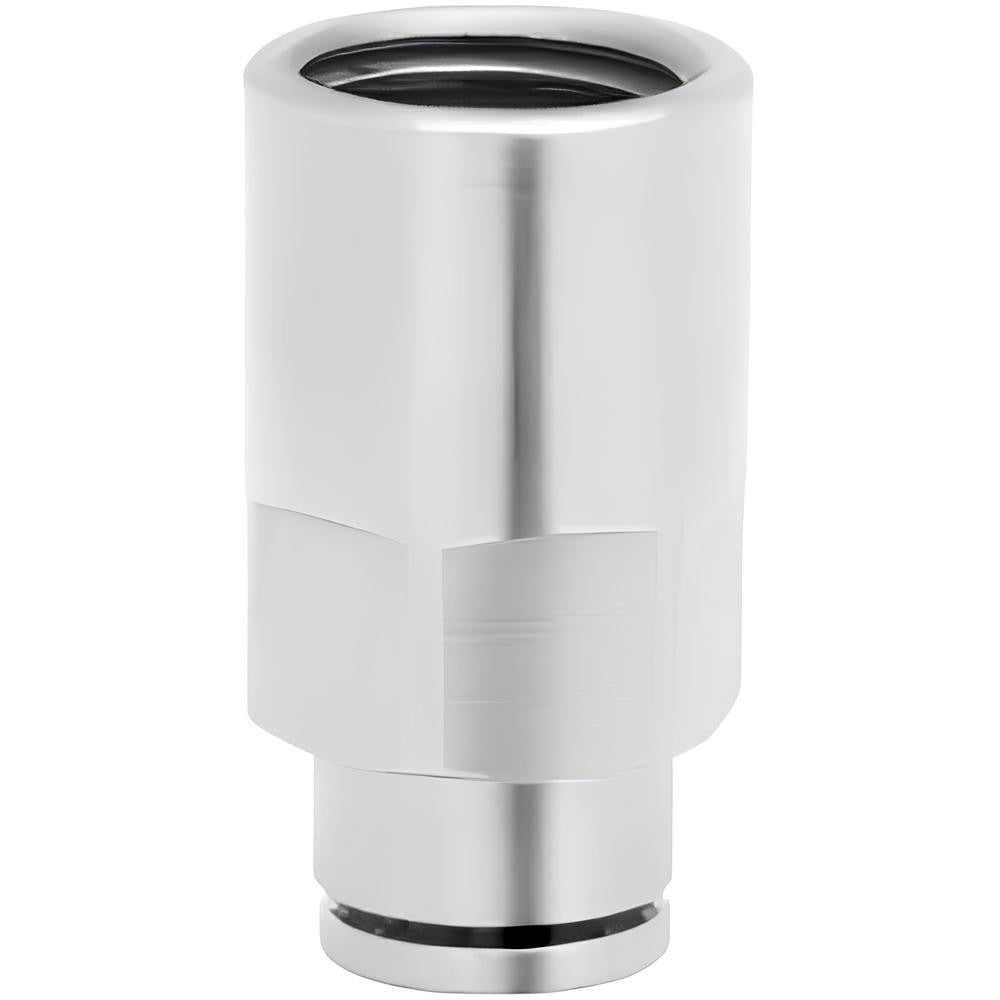

Norgren 102260828 Push-to-connect Bspp Tube Fitting

Product Description

The NORGREN 102260828 is a push-to-connect tube fitting with a female-to-female BSPP thread configuration designed for general-purpose pneumatic and fluid line applications. The fitting accepts 8 mm outside diameter tubing on both tube ports and connects to female BSPP-threaded ports, providing a secure, tool-free tube insertion on each end. Constructed from nickel-plated brass, it is rated for a maximum working pressure of 260 psi and an operating temperature range of 0 degrees F to 175 degrees F. Nitrile O-rings provide the sealing element at the tube interfaces. Licensed plumbers, pipefitters, and pneumatic system technicians are the typical installers of this fitting.

This fitting is suited for general-purpose compressed air, pneumatic control lines, and compatible fluid systems where a push-to-connect tube entry combined with a female BSPP threaded port connection is required. Its compact nickel-plated brass body makes it appropriate for both light industrial and commercial installations where corrosion resistance and moderate pressure capacity are needed. The fitting ships as a single unit and is sold individually.

Key Features

• Push-to-connect tube entry on both tube ports for tool-free tube insertion and release
• Female BSPP thread on both threaded ends for direct inline or manifold connections
• Nickel-plated brass body resists corrosion in general-purpose service environments
• Rated to 260 psi maximum working pressure
• Nitrile O-rings provide reliable sealing across the full operating temperature range
• Wide temperature range: 0 degrees F to 175 degrees F

Compatibility

Designed for general-purpose pneumatic and compatible fluid line systems requiring an 8 mm outside diameter tube and female BSPP threaded port connections.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or qualified pneumatic technicians. Depressurize and isolate the system completely before removing or installing any fitting. Verify that tubing outside diameter is exactly 8 mm and that mating port threads are female BSPP before installation to avoid thread or seal damage. Follow applicable local plumbing and mechanical codes for fluid and pneumatic system fittings.
