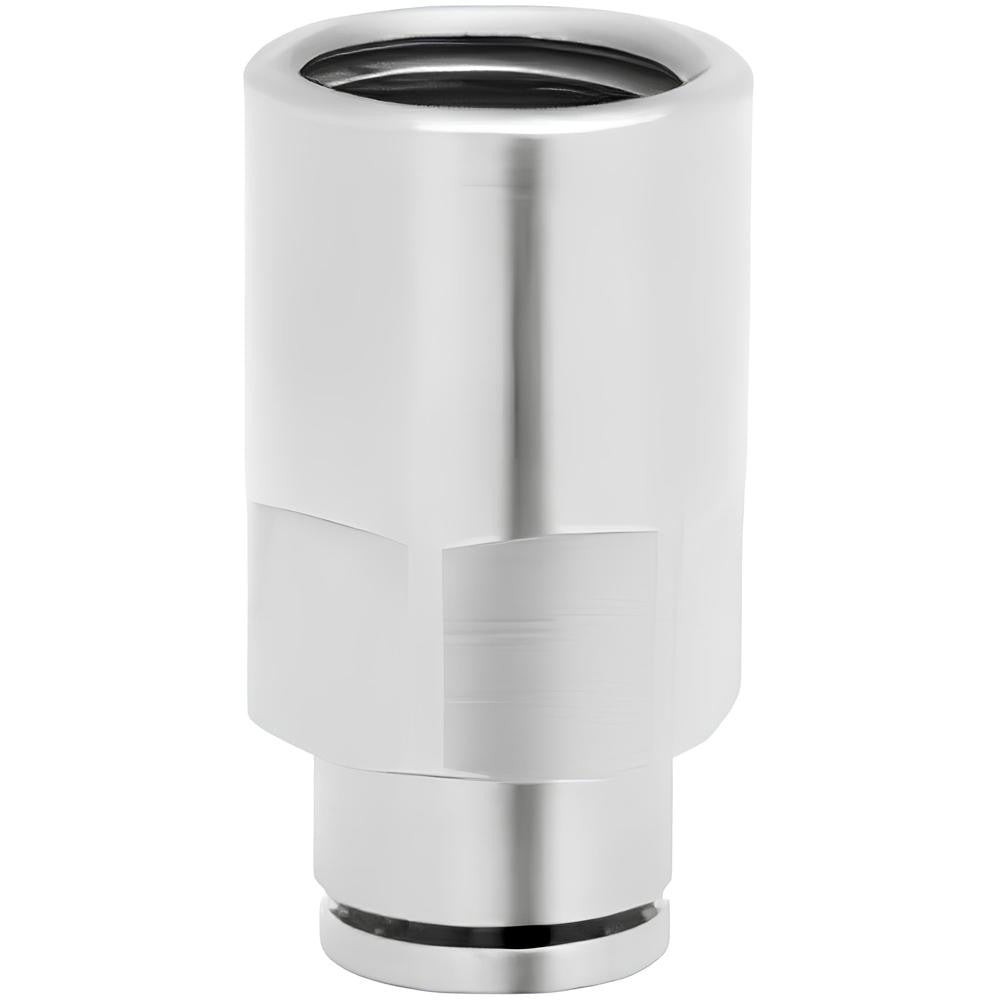

Norgren 102260428 Push-to-connect Bspp Tube Fitting 260 Psi

Product Description

The NORGREN 102260428 is a push-to-connect tube-to-female BSPP tube fitting designed for general-purpose pneumatic and fluid line connections. Constructed from nickel-plated brass, it accommodates a 4 mm outside diameter tube on both tube ports and a 1/4 inch BSPP female thread connection. The fitting is rated to 260 psi maximum working pressure and handles operating temperatures from 0 degrees F to 175 degrees F. A nitrile O-ring provides the primary tube seal. This fitting is installed by plumbers, pipefitters, and HVAC/R technicians working on compressed air, pneumatic control, or general-purpose fluid systems where a reliable push-to-connect termination is required.

The 102260428 is suited for general-purpose applications in both light industrial and commercial settings. It is used where a push-to-connect tube entry must transition to a female BSPP threaded port, such as pneumatic instrumentation, control line assemblies, and compressed air distribution. The fitting accepts tubing from both sides while providing a threaded female connection at the center body, making it effective for branching or inline transition points in pneumatic circuits.

Key Features

• Push-to-connect tube entry on both ends for tool-free tube insertion and release
• Nickel-plated brass body for corrosion resistance in general-purpose environments
• Rated to 260 psi maximum working pressure
• Operating temperature range: 0 degrees F to 175 degrees F
• Nitrile O-ring seal compatible with common pneumatic and fluid media
• 1/4 inch BSPP female thread for connection to metric-standard ported components

Compatibility

Designed for general-purpose use with 4 mm outside diameter tubing and 1/4 inch BSPP female threaded ports in pneumatic and fluid control systems.

Installation Notes

Installation is typically performed by licensed pipefitters, plumbers, or qualified HVAC/R technicians. Depressurize and isolate the system completely before removing or installing any fitting. Ensure tubing is cut cleanly and squarely to the correct outside diameter before insertion into the push-to-connect port. Verify thread compatibility before engaging the BSPP female port, as BSPP threads are not interchangeable with NPT threads.
