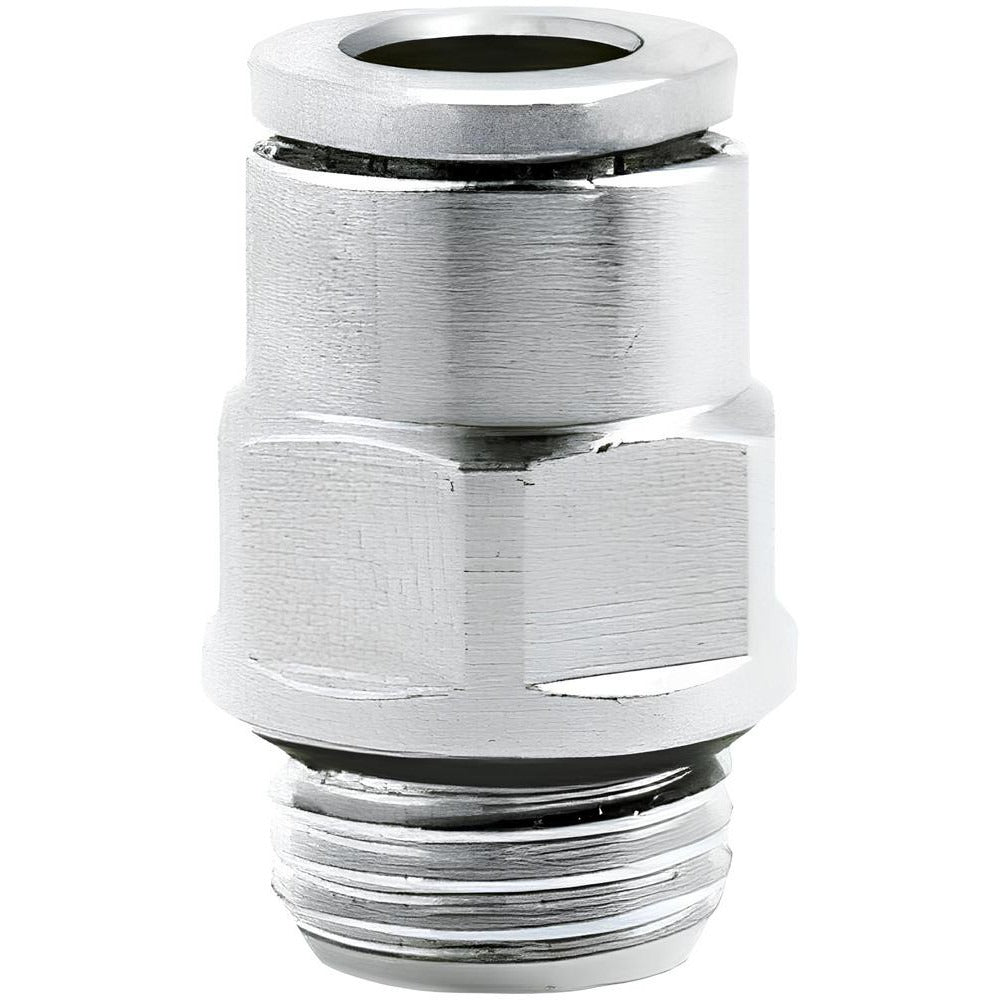

Norgren 102251238 Straight Adapter Fitting Bspp 260 Psi

Product Description

The NORGREN 102251238 is a push-to-connect straight adapter tube fitting designed for general-purpose pneumatic and fluid system applications. It features a tube-to-male BSPP connection on both ends, allowing fast, tool-free tube insertion on one side and a threaded BSPP male connection on the other. Constructed from nickel-plated brass with a nitrile O-ring, it is rated for a maximum working pressure of 260 psi and a temperature range of 0 to 175 degrees F. This fitting is well-suited for plumbing technicians and pneumatic system assemblers who need reliable, leak-resistant connections in tight-tolerance installations.

This straight adapter is intended for general-purpose fluid and pneumatic systems where a push-to-connect tube end must transition to a BSPP male threaded port. Typical install scenarios include compressed air lines, pneumatic control circuits, and light fluid distribution systems in industrial and commercial environments. The 12.00 mm outside diameter tube compatibility and 24.00 mm overall length make it appropriate for compact panel or manifold installations where space is limited.

Key Features

• Push-to-connect tube end for fast, tool-free tube insertion and removal
• BSPP male threaded connection for compatibility with British Standard Parallel Pipe ported components
• Nickel-plated brass construction for corrosion resistance in general-purpose service
• Nitrile O-ring seal rated for use across a wide temperature range
• Rated to 260 psi maximum working pressure
• Compact 24.00 mm overall length suited for space-constrained installations

Compatibility

Designed for general-purpose pneumatic and fluid systems requiring a push-to-connect tube fitting with a BSPP male threaded port connection. Compatible with 12.00 mm outside diameter tubing.

Installation Notes

Installation should be performed by a qualified plumbing or pneumatic systems technician. Depressurize and isolate the system completely before removing or installing any fittings. Confirm that tubing outside diameter matches the 12.00 mm specification before insertion, and verify that the mating port carries a BSPP thread profile rather than NPT or BSPT. Do not overtighten the threaded end or force the push-to-connect collar during assembly, as this may damage the O-ring seal.
