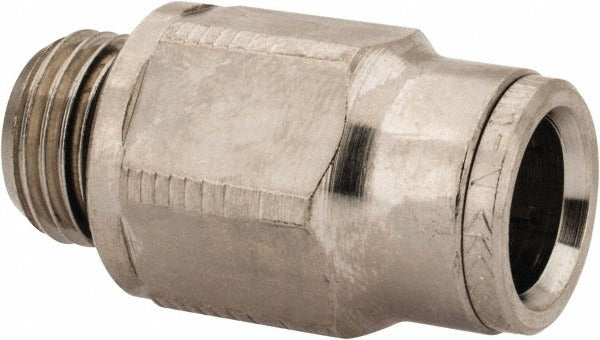

Norgren 102251028 Push-to-connect Straight Adapter Bspp

Product Description

The NORGREN 102251028 is a straight push-to-connect adapter fitting designed for tube-to-male BSPP connections in pneumatic and fluid-transfer plumbing systems. Constructed from nickel-plated brass, it accepts a 10 mm outside diameter tube on the push-to-connect end and terminates with a male BSPP threaded port. The fitting is rated to 260 psi maximum working pressure and handles temperatures from 0 degrees F up to 175 degrees F. An integrated nitrile O-ring provides a reliable seal in general-purpose compressed-air and low-pressure fluid applications. HVAC technicians, industrial plumbers, and fluid-system installers use this fitting type when transitioning between push-to-connect tubing runs and BSPP-threaded ports or manifolds.

This adapter is suited for general-purpose pneumatic and fluid-handling installations where a straight inline connection is required between flexible or rigid tubing and a male BSPP threaded component. The 1/4 inch BSPP thread size is common in European and international equipment, instrumentation panels, solenoid valve bodies, regulators, and filter assemblies. The nickel-plated brass construction resists corrosion in typical shop-air and light industrial environments.

Key Features

• Push-to-connect tube end accepts 10 mm outside diameter tubing without additional tools
• Male 1/4 inch BSPP threaded port for direct connection to BSPP-ported equipment
• Rated to 260 psi maximum working pressure
• Operating temperature range: 0 degrees F to 175 degrees F
• Nitrile O-ring seal included for leak-resistant performance
• Nickel-plated brass body resists corrosion in general-purpose pneumatic service

Compatibility

Designed as a general-purpose straight push-to-connect adapter for pneumatic and fluid-transfer systems requiring a 10 mm OD tube connection to a 1/4 inch male BSPP threaded port.

Installation Notes

Installation is typically performed by a licensed plumber, pipefitter, or HVAC-R technician. Depressurize the system fully and isolate the circuit before disconnecting or installing any fittings. Ensure the mating BSPP-threaded port is clean and undamaged before threading the male end in hand-tight, then tightening with an appropriate wrench to the equipment manufacturer specification. Cut tubing square and deburr the end before inserting into the push-to-connect collet to ensure proper seating and seal integrity.
