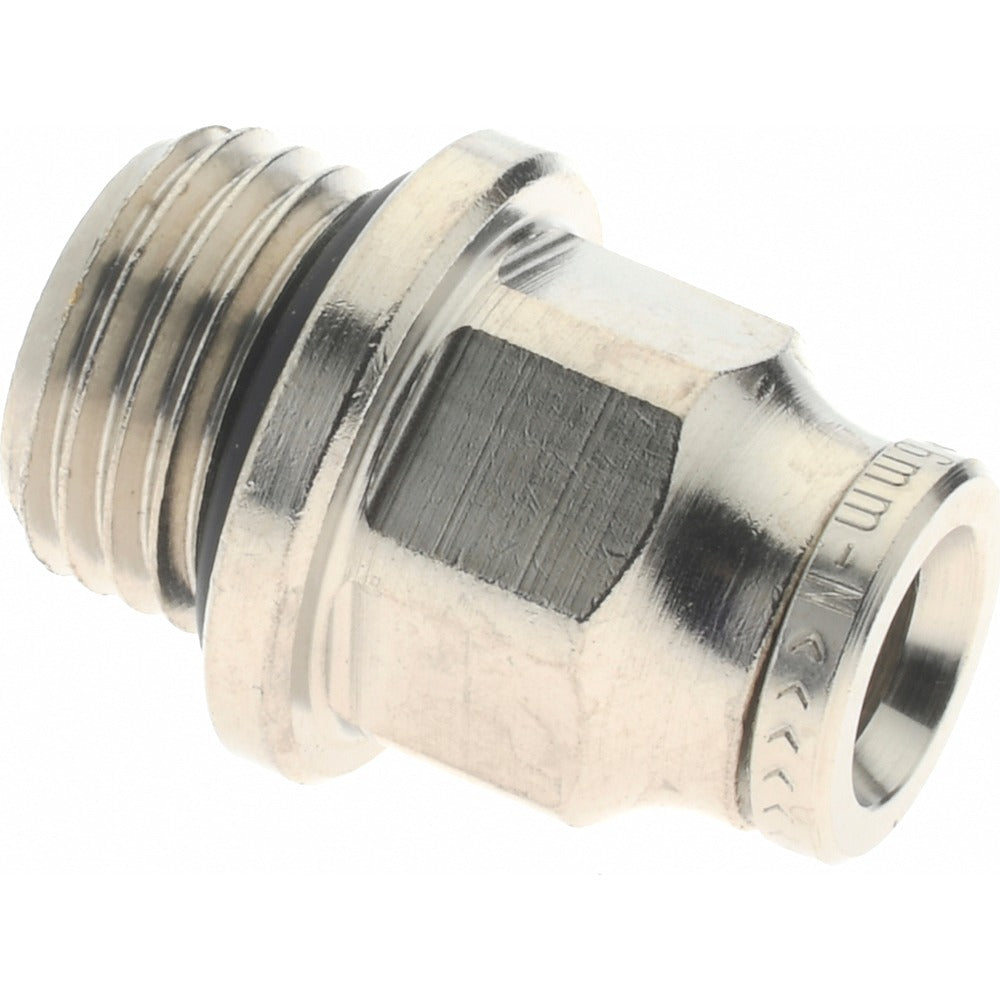

Norgren 102250628 Push-to-connect Straight Adapter Bspp

Product Description

The NORGREN 102250628 is a straight push-to-connect adapter fitting designed for tube-to-male BSPP connections in compressed air and fluid control systems. Constructed from nickel-plated brass with a nitrile O-ring, this fitting accepts 6 mm outside diameter tubing on the push-to-connect end and threads into a 1/4 inch BSPP male port on the opposite end. It is rated for a maximum working pressure of 260 psi and handles temperatures from 0 degrees F to 175 degrees F. Licensed HVAC technicians, pneumatic system installers, and industrial maintenance pros use this fitting to transition between metric push-in tubing and BSPP-threaded manifolds, valves, or actuators without additional adapters.

This adapter is suited for light industrial and commercial pneumatic plumbing applications where metric OD tubing must interface with British Standard Parallel Pipe threaded ports. Its compact 22 mm overall length makes it practical in tight panel or manifold installations. The push-to-connect mechanism allows fast tube insertion and removal without tools, reducing installation time during initial assembly or field servicing of pneumatic control circuits.

Key Features

• Push-to-connect design accepts 6 mm OD tubing without tools
• 1/4 inch BSPP male thread for direct connection to parallel pipe threaded ports
• Nickel-plated brass body resists corrosion in industrial environments
• Nitrile O-ring sealing for reliable performance across the rated temperature range
• 260 psi maximum working pressure suitable for standard pneumatic service
• Compact 22 mm overall length fits space-constrained installations

Compatibility

Designed for use with 6 mm outside diameter push-in tubing and 1/4 inch BSPP male-threaded ports in pneumatic and fluid control applications. Verify thread form before installation, as BSPP is a parallel thread and is not interchangeable with tapered BSPT or NPT fittings.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic system plumbing. Depressurize and lock out the system before removing or installing any fitting. Apply a BSPP-compatible thread sealant or bonded seal washer to the male threads per the equipment manufacturer's recommendation, as BSPP is a parallel thread that does not seal on the thread form alone. Confirm tubing is cut squarely and fully inserted until it bottoms out in the collet to ensure a leak-free push-to-connect seal.
