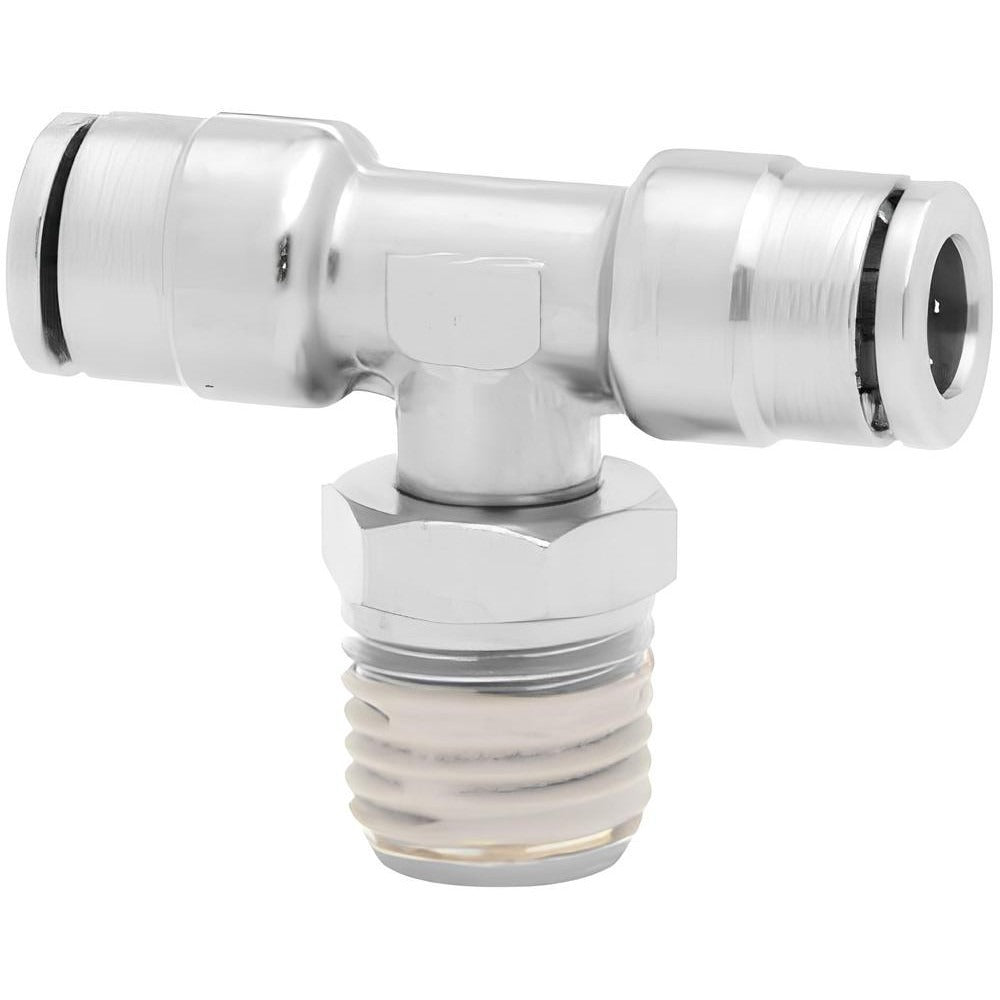

Norgren 101671238 Push-to-connect Male Bspt Tube Fitting

Product Description

The NORGREN 101671238 is a push-to-connect tube-to-male BSPT tube fitting designed for fast, tool-free tube connections in general-purpose pneumatic and fluid systems. Constructed from nickel-plated brass, it accommodates a tube outside diameter of 12 millimeters and carries a maximum working pressure rating of 260 psi. The BSPT male thread provides a tapered, pressure-tight thread connection on one end, while both tube ports accept push-to-connect tubing for quick assembly. Licensed plumbers, pipefitters, and industrial maintenance technicians install this type of fitting in compressed air, pneumatic control, and low-pressure fluid distribution applications.

This fitting is suited for general-purpose installations where a reliable inline or branch tube connection to a male BSPT-threaded port is required. It operates within a temperature range of 0 degrees F to 175 degrees F, making it appropriate for both indoor and light-duty industrial environments. The nitrile O-ring seals ensure a leak-free connection across the rated pressure and temperature range. Typical applications include pneumatic control panels, fluid handling manifolds, and compressed air distribution lines.

Key Features

• Push-to-connect design on tube ports allows fast, tool-free tube insertion and removal
• Nickel-plated brass construction resists corrosion and provides durability in industrial environments
• 260 psi maximum working pressure rating for pneumatic and low-pressure fluid service
• BSPT male thread provides a tapered, pressure-rated threaded connection
• Nitrile O-rings deliver reliable sealing across the full operating temperature range
• Rated from 0 degrees F to 175 degrees F for broad environmental compatibility

Compatibility

Designed as an OEM-style replacement or direct-install fitting for general-purpose pneumatic and fluid systems requiring a tube-to-male BSPT push-to-connect connection with a 12 millimeter tube outside diameter.

Installation Notes

Installation should be performed by a qualified pipefitter, plumber, or industrial maintenance technician. Depressurize and isolate the system completely before removing or installing any fitting. Confirm that the mating port thread type and tube outside diameter match the fitting specifications before assembly. Verify that system operating pressure and temperature remain within the rated limits of this fitting after installation.
