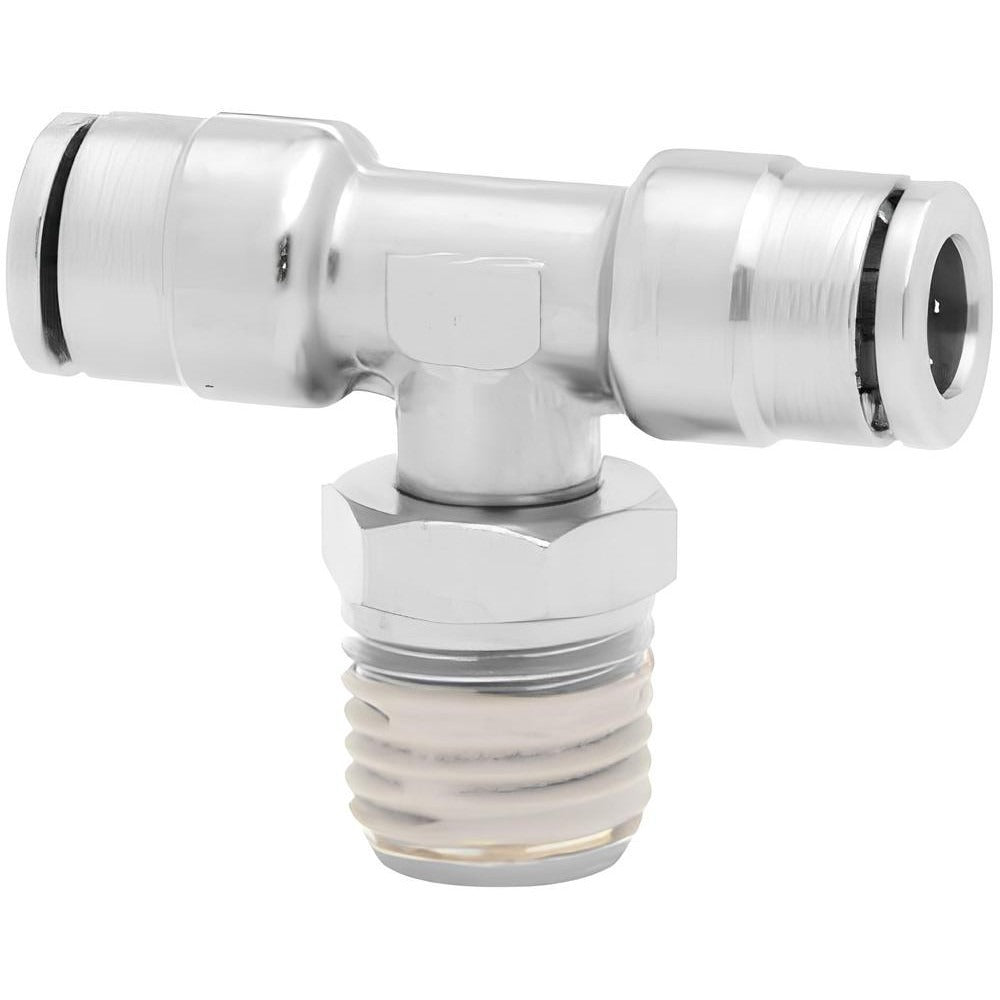

Norgren 101671028 Swivel Tee Adapter 1/4 Inch Bspt

Product Description

The NORGREN 101671028 is a push-to-connect swivel tee adapter designed for pneumatic and fluid tubing systems requiring a tee configuration with male BSPT thread connections. Built from nickel-plated brass, this fitting connects tube-to-male-to-tube-to-male BSPT in a tee arrangement, allowing branch line connections without cutting into existing rigid plumbing. It is rated to 260 psi maximum working pressure and handles temperatures from 0 degrees F to 175 degrees F. The push-to-connect mechanism speeds up assembly and disassembly in tight spaces. Licensed plumbers, pipefitters, and pneumatic system technicians are the primary installers of this fitting type.

This fitting is suited for general-purpose pneumatic and fluid distribution applications in both light industrial and commercial environments. The swivel feature allows the tee body to rotate after installation, making it easier to align tubing runs in confined spaces or multi-branch manifold setups. It accepts 10 mm outside diameter tubing and uses a BSPT thread interface for the male port. The nitrile o-ring internal seals provide compatibility with a wide range of air and fluid media common in general-purpose service.

Key Features

• Push-to-connect design for fast, tool-free tube insertion and release
• Swivel tee body for post-installation alignment of tubing runs
• Nickel-plated brass construction for corrosion resistance in general-purpose environments
• Rated to 260 psi maximum working pressure
• Nitrile o-ring seals suitable for air and general fluid media
• Operating temperature range from 0 degrees F to 175 degrees F

Compatibility

Designed for general-purpose pneumatic and fluid tubing systems using 10 mm outside diameter tubing with 1/4 inch BSPT male thread connections.

Installation Notes

Installation should be performed by a qualified pipefitter, plumber, or pneumatic systems technician. Depressurize and isolate the system completely before inserting or removing push-to-connect fittings. Ensure tubing ends are cut cleanly and squarely with no burrs before insertion, as irregular cuts can compromise the collet seal. Verify that the BSPT thread engagement meets applicable plumbing or pneumatic system standards before returning the system to service.
