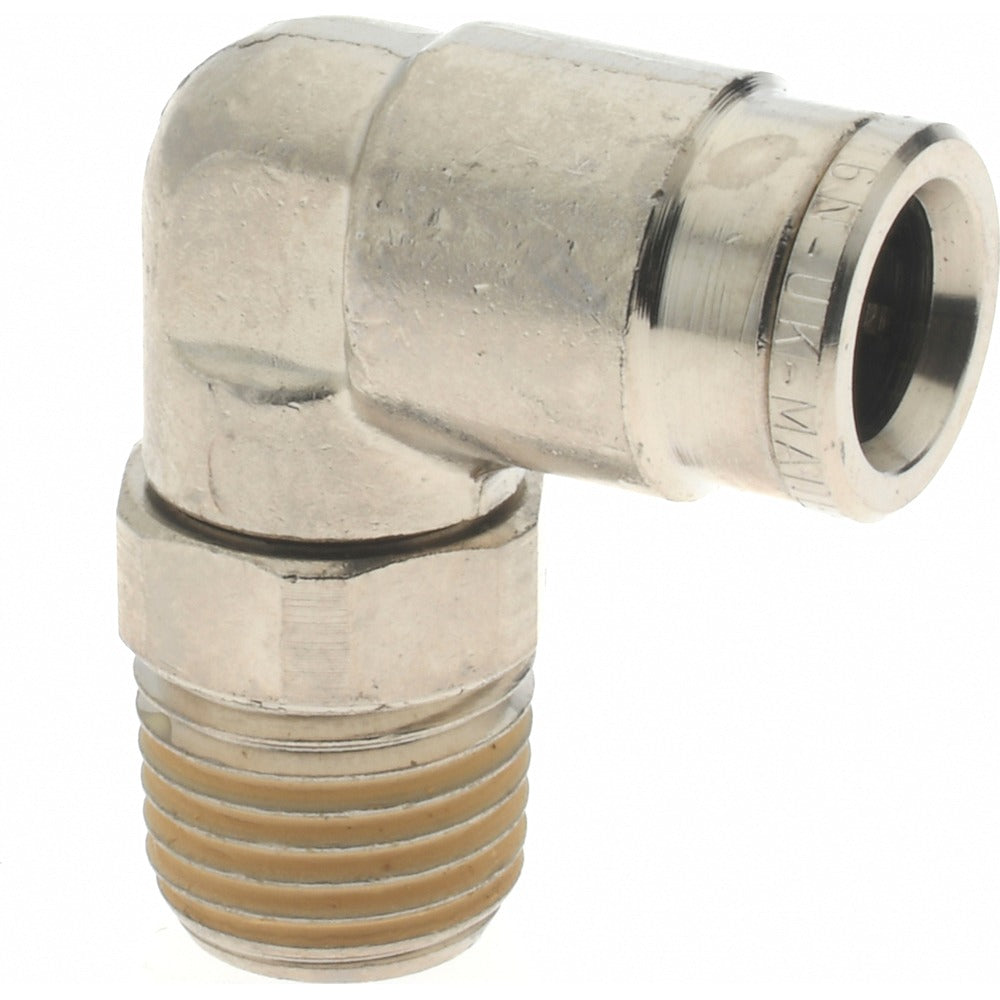

Norgren 101470828 90 Swivel Elbow Adapter 1/4 Bspt 260 Psi

Product Description

The NORGREN 101470828 is a push-to-connect 90-degree swivel elbow adapter designed for tube-to-male BSPT pneumatic and fluid plumbing connections. Constructed from nickel-plated brass, it delivers a maximum working pressure rating of 260 psi and accommodates an 8 mm outside-diameter tube on the push-to-connect end with a 1/4 inch male BSPT threaded port on the other. The swivel elbow design allows technicians to orient tubing runs after installation, reducing stress on fittings in tight or angled installations. An internal nitrile O-ring provides a reliable seal across the rated temperature range. Licensed plumbers, pipefitters, and pneumatic system technicians install this type of fitting in both shop-fabricated and field assemblies.

This fitting is suited for compressed air, pneumatic control, and low-pressure fluid lines in light industrial and commercial environments. The 90-degree swivel configuration is commonly used where tubing must change direction within a panel, manifold, or equipment enclosure. It is appropriate for installations where working temperatures stay within the rated range of 0 degrees F to 175 degrees F. The push-to-connect end accepts 8 mm OD tubing without tools, speeding up assembly and simplifying maintenance access in confined spaces.

Key Features

• Push-to-connect design accepts 8 mm OD tubing without additional tools
• 90-degree swivel elbow allows post-installation tubing orientation adjustment
• Nickel-plated brass construction resists corrosion in pneumatic and fluid service
• Rated to 260 psi maximum working pressure
• Nitrile O-ring provides a consistent seal across the full temperature range
• 1/4 inch male BSPT thread for direct connection to BSPT-ported equipment

Compatibility

Designed as an OEM-style push-to-connect fitting for pneumatic systems and fluid lines using 8 mm OD tubing with 1/4 inch male BSPT threaded ports. Confirm thread form and tube OD on the target system before installation, as BSPT is not interchangeable with NPT.

Installation Notes

Depressurize and lock out the system before removing or installing any push-to-connect fitting. Ensure the mating port is clean and the BSPT threads are in good condition before engagement. Insert tubing fully into the push-to-connect end until it seats against the internal stop to achieve a proper seal. Do not exceed the rated working pressure or temperature limits in service.
