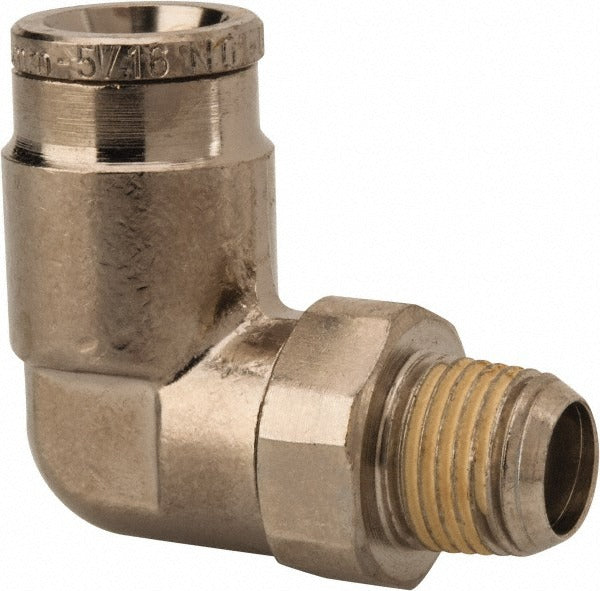

Norgren 101470818 90 Swivel Elbow Push-to-connect 8mm Bspt

Product Description

The NORGREN 101470818 is a 90-degree swivel elbow adapter in the push-to-connect tube fitting family, designed for tube-to-male BSPT connections in pneumatic and fluid-control systems. The fitting accepts 8mm outside-diameter tubing on the push-to-connect end and threads into a 1/8 BSPT male port on the opposite end. The swivel elbow design allows the tube exit angle to be rotated after installation, simplifying routing in tight panels and manifolds. Constructed from nickel-plated brass with a nitrile O-ring seal, it handles pressures up to 260 psi across a service temperature range of 0 to 175 degrees F. HVAC technicians, pneumatic controls installers, and industrial maintenance techs are the primary installers.

This fitting is rated for general-purpose pneumatic and fluid-line applications where a 90-degree directional change is needed between an 8mm tube and a 1/8 BSPT male threaded port. Typical install scenarios include compressed-air distribution panels, pneumatic actuator plumbing, and instrument-air manifolds in light commercial and industrial settings. The push-to-connect mechanism allows fast, tool-free tube insertion and removal, reducing assembly time on multi-connection panels.

Key Features

• 90-degree swivel elbow allows post-installation rotation for flexible tube routing
• Push-to-connect end accepts 8mm outside-diameter tubing without additional tools
• 1/8 BSPT male thread for direct connection to standard BSPT-ported valves and manifolds
• Nickel-plated brass construction resists corrosion in general-purpose service environments
• Nitrile O-ring seal rated for 260 psi maximum working pressure
• Operates from 0 to 175 degrees F, suitable for a wide range of ambient and process conditions

Compatibility

Designed for general-purpose pneumatic and fluid-control systems using 8mm outside-diameter tubing and 1/8 BSPT male threaded ports.

Installation Notes

Installation is performed by pneumatic controls technicians or qualified maintenance personnel. Depressurize and de-energize the system completely before removing or installing any fittings. Ensure the mating port thread type is BSPT before threading in; BSPT and NPT threads are not interchangeable and cross-threading will damage the seal. Verify that the tube outside diameter is exactly 8mm before inserting into the push-to-connect collet, as undersized or oversized tubing will not form a reliable seal.
