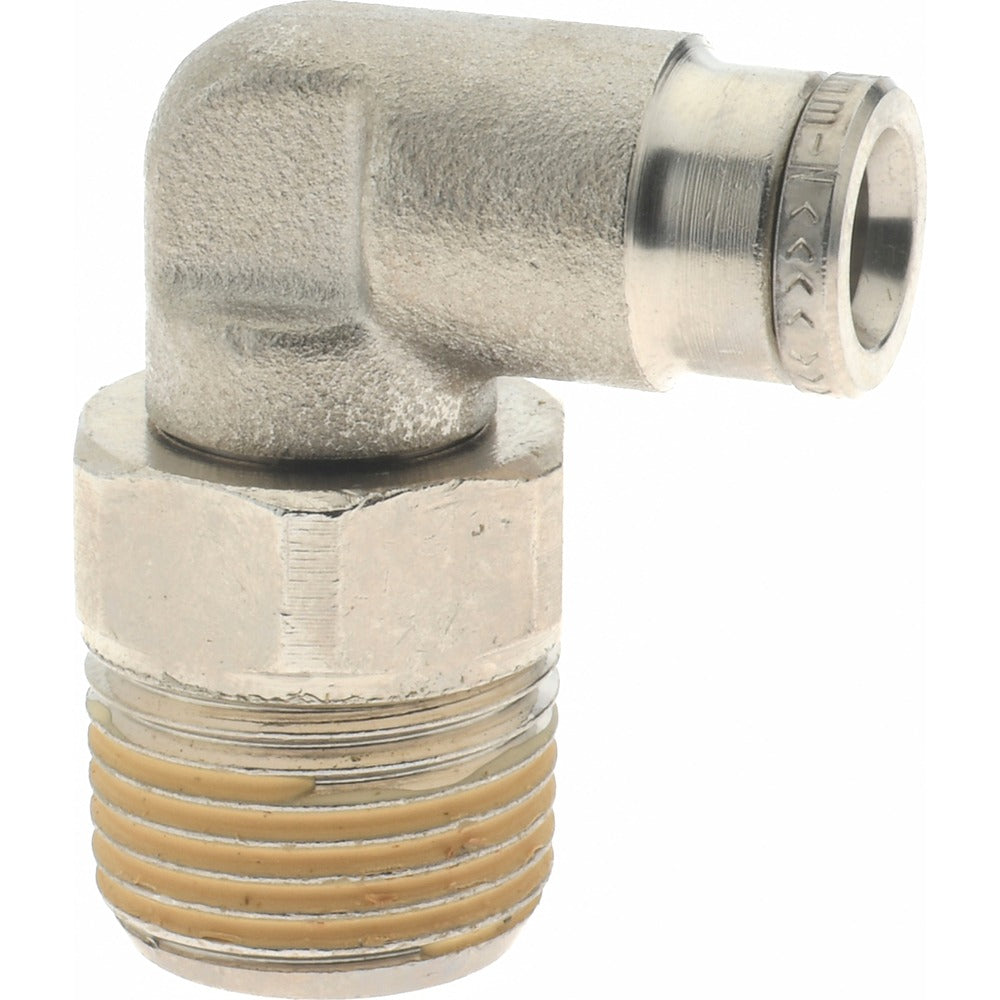

Norgren 101470638 Push-to-connect Male Bspt Tube Fitting

Product Description

The NORGREN 101470638 is a push-to-connect tube fitting with a male BSPT thread configuration, designed for fast, tool-free pneumatic and fluid line connections in industrial and commercial applications. The fitting accepts 6 mm outside diameter tubing on both tube ports and terminates with a 3/8 inch male BSPT thread. Constructed from nickel-plated brass with a nitrile O-ring, it is rated for working pressures up to 260 psi and handles temperatures from 0 degrees F to 175 degrees F. Pipefitters, pneumatic system technicians, and industrial maintenance mechanics are the typical installers.

This fitting is suited for compressed air, inert gas, and compatible fluid distribution lines in manufacturing, automation, and process control environments. The push-to-connect design allows quick tubing insertion and release without additional tools, making it well suited for panel builds, manifold plumbing, and field service work where fast reconnection is a priority. The male BSPT thread end connects directly to BSPT-tapped ports on valves, cylinders, solenoids, and similar components.

Key Features

• Push-to-connect design accepts 6 mm OD tubing on both tube ports for tool-free assembly
• Male BSPT thread end for direct connection to standard BSPT-tapped components
• Nickel-plated brass construction resists corrosion in demanding service environments
• Nitrile O-ring provides reliable sealing across the rated pressure and temperature range
• Rated to 260 psi maximum working pressure
• Operating temperature range from 0 degrees F to 175 degrees F

Compatibility

Designed as an OEM-style push-to-connect tube fitting for pneumatic and compatible fluid systems using 6 mm OD tubing and BSPT-tapped porting.

Installation Notes

Installation should be performed by a qualified pipefitter or pneumatic systems technician. Depressurize and isolate the line completely before removing or installing any fitting. Ensure the mating port is threaded to the BSPT standard and that tubing OD matches the 6 mm rated size before insertion. Apply appropriate thread sealant to the male BSPT threads in accordance with the equipment manufacturer's requirements and applicable piping codes.
