Norgren 101470628 90 Swivel Elbow Bspt Fitting

Product Description

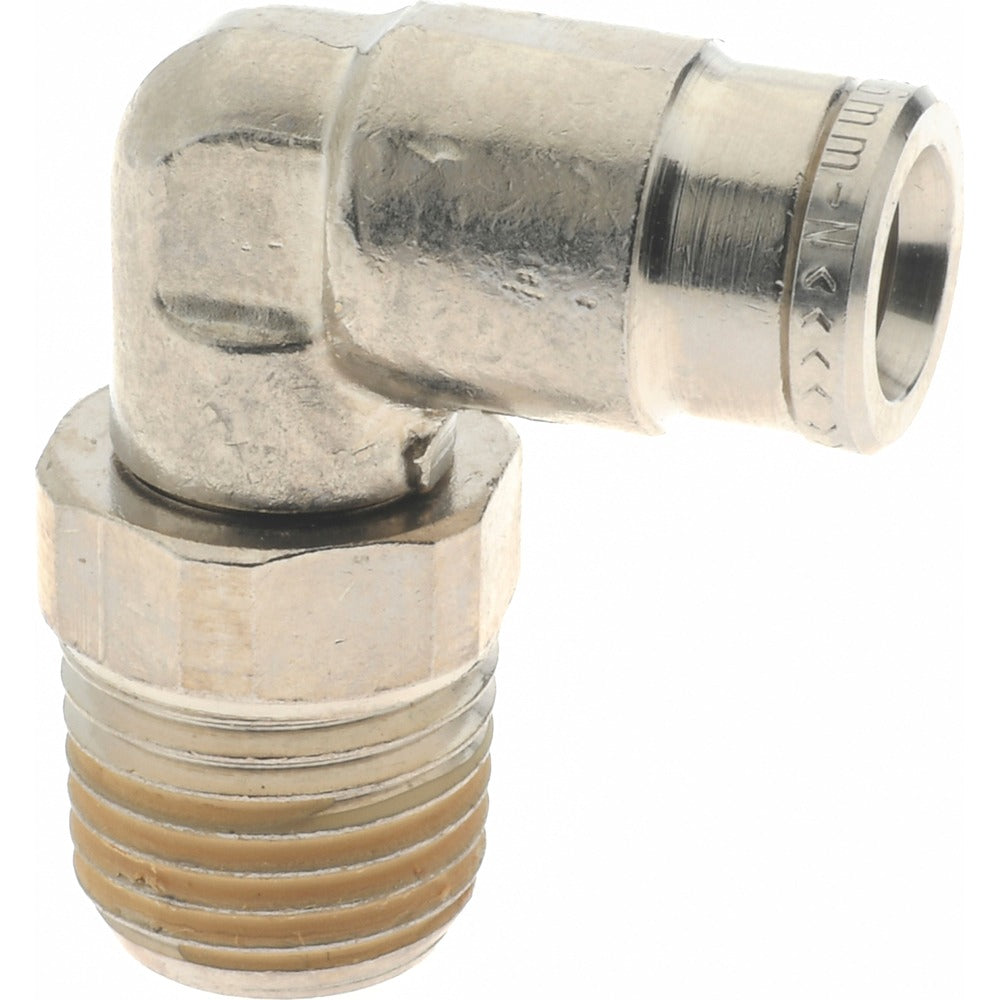

The NORGREN 101470628 is a 90-degree swivel elbow adapter designed for push-to-connect pneumatic and fluid tubing systems. It provides a tube-to-male BSPT connection on both ends, allowing a tube line to change direction while maintaining a secure, leak-resistant joint. The fitting is constructed from nickel-plated brass for corrosion resistance and is rated for a maximum working pressure of 260 psi. The push-to-connect design enables fast, tool-free tube insertion without sacrificing connection integrity. Licensed plumbers, HVAC technicians, and pneumatic system installers commonly work with this type of fitting in compressed air and fluid distribution lines.

This fitting is suited for use in residential and light commercial pneumatic systems, compressed air distribution, and fluid control applications. It accepts tubing with a 6 mm outside diameter and connects to male BSPT-threaded ports. The swivel elbow design simplifies routing in tight spaces where fixed-angle fittings would create assembly challenges. It is commonly installed in equipment panels, valve manifolds, and instrumentation enclosures where 90-degree directional changes in tubing are required.

Key Features

• 90-degree swivel elbow allows flexible tube routing without fixed-angle constraints
• Push-to-connect design enables fast, tool-free tube insertion and removal
• Nickel-plated brass construction provides corrosion resistance for pneumatic and fluid service
• Rated to 260 psi maximum working pressure
• Nitrile O-ring seals provide reliable sealing across a wide temperature range
• Operating temperature range: 0 degrees F to 175 degrees F

Compatibility

Designed for use with 6 mm outside diameter tubing and male BSPT 1/4 inch threaded ports in push-to-connect pneumatic and fluid control systems.

Installation Notes

Installation is typically performed by HVAC technicians, pneumatic system technicians, or licensed plumbers working on compressed air or fluid distribution systems. Depressurize and isolate the line before installing or removing push-to-connect fittings. Ensure tubing is cut cleanly and squarely, and that the tube end is fully inserted to the depth mark to achieve a secure seal. Verify thread engagement on the BSPT male connection using appropriate thread sealant or tape as required by local codes.
