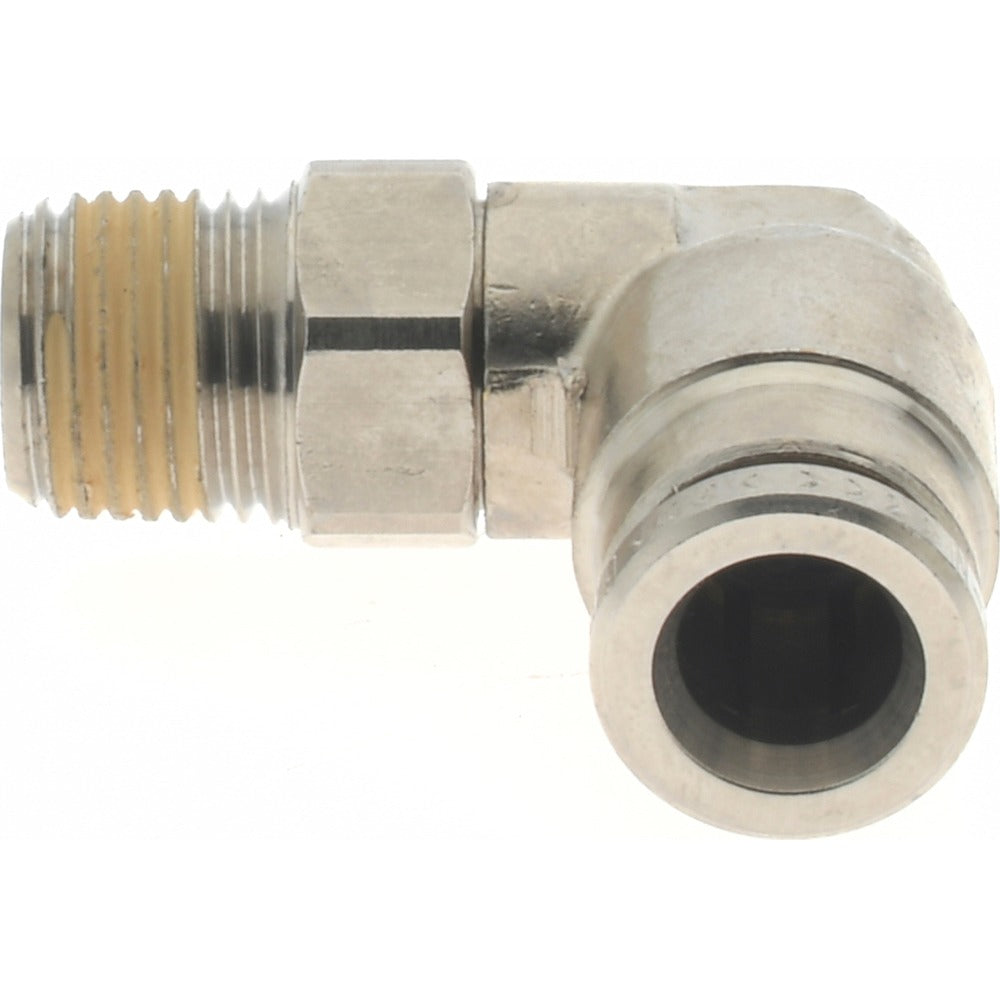

Norgren 101470618 90 Swivel Elbow Adapter 1/8 Bspt

Product Description

The NORGREN 101470618 is a push-to-connect 90-degree swivel elbow adapter designed for tube-to-male BSPT connections in compressed air and pneumatic fluid systems. Built from nickel-plated brass with a nitrile O-ring seal, this fitting handles working pressures up to 260 psi across a temperature range of 0 to 175 degrees F. The push-to-connect design allows tool-free tube insertion while the swivel elbow provides rotational adjustment after installation, making it well suited for tight routing or panel-mount applications. HVAC technicians, industrial service techs, and pneumatic system installers work with this class of fitting regularly.

This fitting is intended for use with 6 mm outside diameter tubing and a 1/8 inch BSPT male thread port. It fits inline pneumatic and fluid control assemblies where a 90-degree change of direction is required between a fixed threaded port and a push-to-connect tube run. Common install environments include compressed air distribution lines, pneumatic actuator supply circuits, and instrumentation tubing in both light commercial and industrial settings.

Key Features

• Push-to-connect tube end accepts 6 mm OD tubing without additional tools
• Swivel elbow body allows rotational positioning after thread engagement
• Nickel-plated brass construction resists corrosion in air and mild fluid service
• Rated to 260 psi maximum working pressure
• Nitrile O-ring provides reliable sealing across the full temperature range
• 1/8 inch BSPT male thread for direct port connection

Compatibility

Designed as a standard push-to-connect pneumatic fitting for systems using 6 mm OD tubing and 1/8 inch BSPT male threaded ports. Verify thread standard compatibility before installation, as BSPT differs dimensionally from NPT.

Installation Notes

Depressurize and lock out the pneumatic or fluid system completely before removing or installing any fitting. Thread the BSPT male end into the port by hand first, then tighten with an appropriate wrench without over-torquing the brass body. Insert the tube straight into the push-to-connect end until it seats fully, and tug gently to confirm retention before re-pressurizing. Inspect for leaks at system operating pressure before returning to service.
