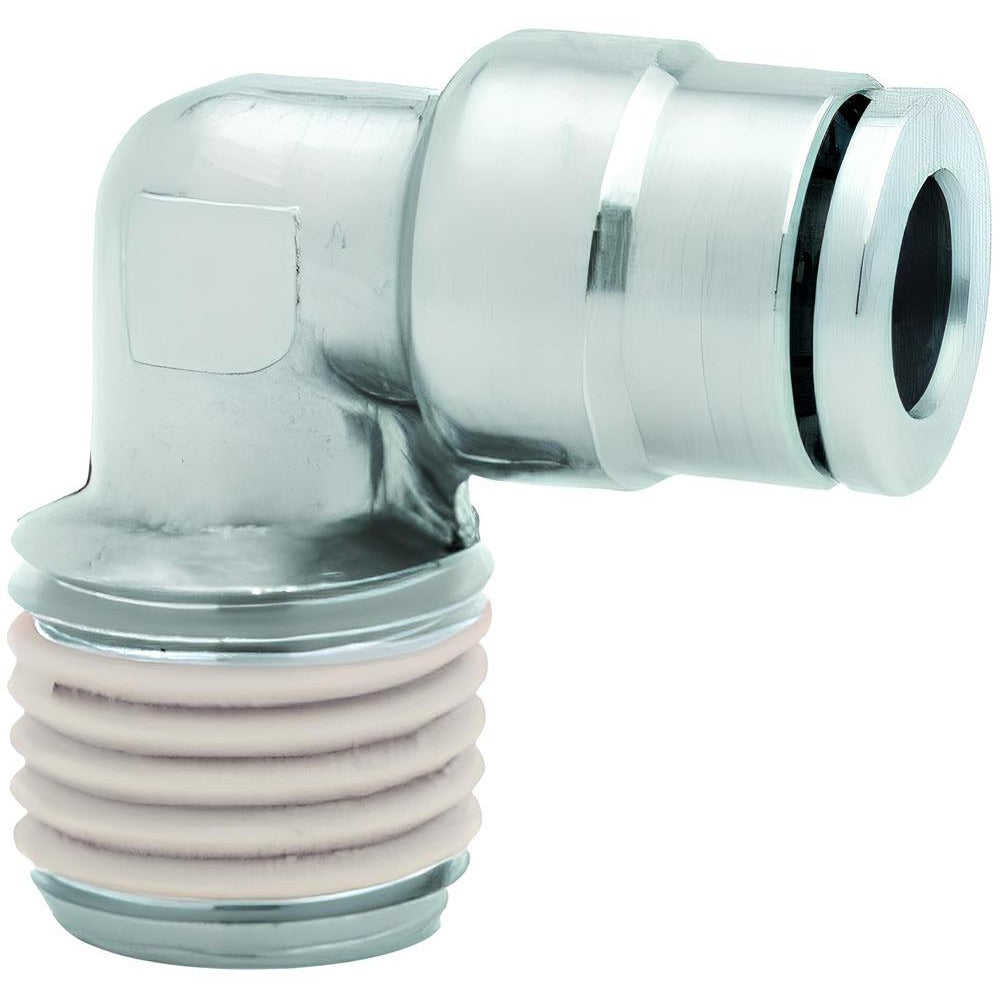

Norgren 101451248 Ptc Elbow Adapter Bspt 12mm 260 Psi

Product Description

The NORGREN 101451248 is a push-to-connect elbow adapter fitting designed for tube-to-male BSPT connections in compressed air and general-purpose fluid systems. The fitting accepts 12mm outside diameter tubing on the push-to-connect end and transitions to a male BSPT threaded port, providing a 90-degree change of direction in the line. Constructed from nickel-plated brass, it is rated to 260 psi maximum working pressure and handles temperatures from 0 degrees F to 175 degrees F. The nitrile O-ring provides a reliable seal against air and common hydraulic media. Plumbers, pipefitters, and pneumatic system technicians install this type of fitting in control panels, machine lines, and compressed air distribution runs.

This fitting is suited for general-purpose pneumatic and fluid transfer applications where a compact elbow connection is needed between 12mm OD tubing and a male BSPT threaded port. Common install scenarios include compressed air manifolds, pneumatic actuator supply lines, and fluid control assemblies in both light industrial and commercial settings. The push-to-connect design allows for tool-free tube insertion, which speeds up assembly and simplifies field repairs. The BSPT thread type is standard in many international and OEM equipment applications.

Key Features

• Push-to-connect design accepts 12mm OD tubing without additional tools for tube insertion
• Male BSPT thread for direct connection to BSPT-ported valves, manifolds, and equipment
• Nickel-plated brass body resists corrosion in general-purpose pneumatic and fluid environments
• Rated to 260 psi maximum working pressure
• Wide temperature range: 0 degrees F to 175 degrees F
• Nitrile O-ring material compatible with air and common fluid media

Compatibility

Designed for general-purpose pneumatic and fluid systems using 12mm OD tubing with BSPT-threaded ports. Verify thread engagement and OD tubing specification before installation.

Installation Notes

Installation should be performed by a qualified pipefitter, pneumatic technician, or plumber following applicable local codes. Depressurize and isolate the system completely before removing or installing any fittings. Apply appropriate thread sealant to the male BSPT threads in accordance with the fitting manufacturer guidance and system media requirements. Confirm tubing is cut square, deburred, and inserted fully to the depth stop before pressurizing the system.
