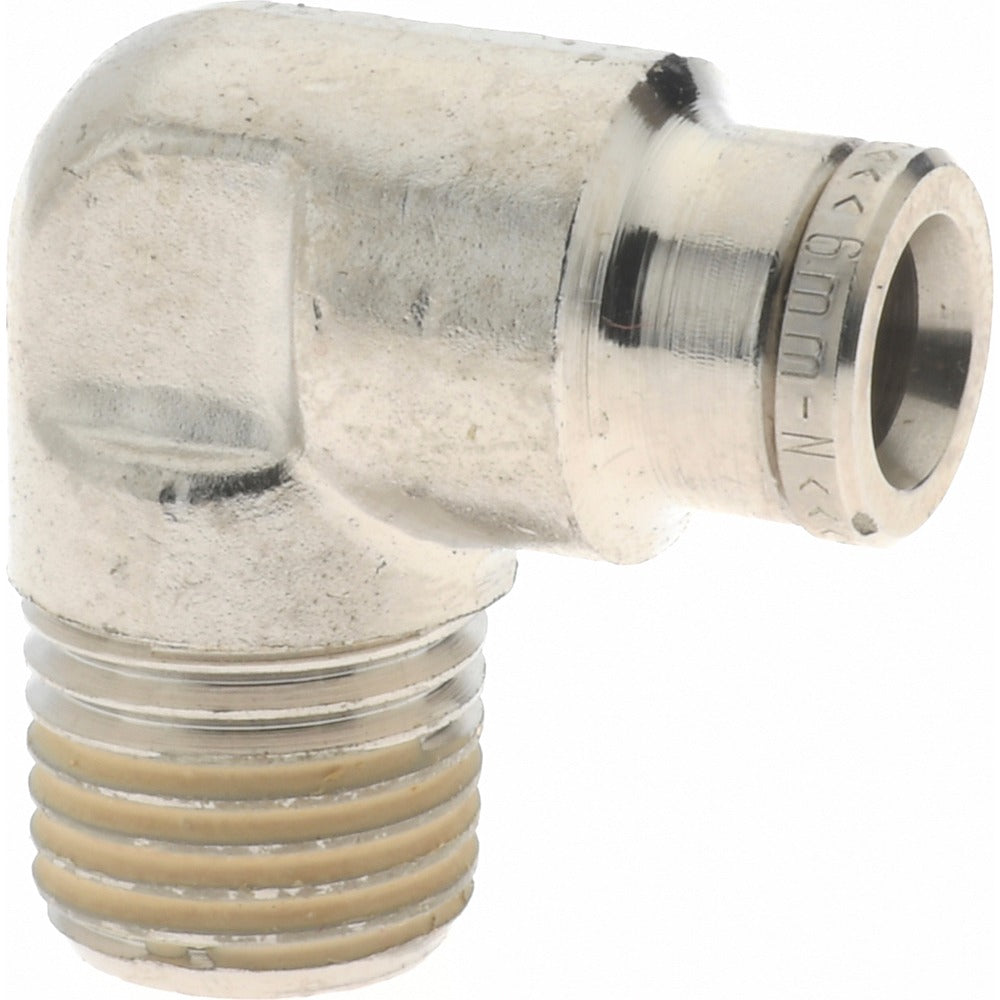

Norgren 101450628 Push-to-connect Elbow Adapter Bspt

Product Description

The NORGREN 101450628 is a push-to-connect elbow adapter tube fitting designed for pneumatic and fluid control plumbing applications. It features a tube-to-male BSPT connection configuration, allowing a 6 mm outside diameter tube to connect at a right angle to a male BSPT-threaded port. The body is constructed from nickel-plated brass, offering corrosion resistance in moderate service environments. Rated to 260 psi maximum working pressure, this fitting handles typical compressed air and light fluid lines. Licensed plumbers, pipefitters, and pneumatic system technicians install this type of fitting in industrial and commercial pneumatic circuits.

This elbow adapter is suited for pneumatic plumbing assemblies where a 90-degree directional change is needed between a push-to-connect tube line and a male BSPT-threaded port. Typical applications include compressed air distribution panels, pneumatic actuator circuits, and fluid control manifolds in commercial and light industrial settings. The push-to-connect end accepts 6 mm OD tubing for fast, tool-free tube insertion, reducing assembly time during initial builds or field service calls.

Key Features

• Push-to-connect design accepts 6 mm OD tubing without additional tools
• 90-degree elbow configuration for right-angle tube-to-port connections
• Nickel-plated brass body for corrosion resistance in pneumatic service
• Rated to 260 psi maximum working pressure
• Nitrile O-ring seal material for reliable pneumatic and light fluid service
• Operating temperature range from 0 degrees F to 175 degrees F

Compatibility

Designed as an OEM-style push-to-connect elbow adapter for pneumatic and fluid control systems using 6 mm OD tubing and male BSPT-threaded ports.

Installation Notes

Depressurize and lock out the pneumatic or fluid system completely before removing or installing fittings. Ensure the mating BSPT-threaded port is clean and undamaged before threading the male end to the correct engagement depth. Insert tubing fully into the push-to-connect end until it seats against the internal stop to achieve a proper seal. Verify the connection is leak-free by pressurizing the system gradually and inspecting with an appropriate leak-detection method.
